Fabtech 3" Trail w/ DLSS Shocks | Jeep JL 4WD 4-Door (18-22) (K4117DL)

Fabtech 3" Trail w/ DLSS Shocks | Jeep JL 4WD 4-Door (18-22) (K4117DL)

K4117DL

Out of stock

$2,650.66 USD
$3,115.53 USD $2,650.66 USD
ADDITIONAL DISCOUNTS APPLIED AT CHECKOUT Sold out

The Fabtech 3" Trail suspension system with DLSS shocks for the Jeep JL 4WD 4-Door (2018-2022) is a comprehensive upgrade designed for off-road enthusiasts seeking enhanced performance across various terrains. This system features a short arm design that utilizes factory control arm mounts for straightforward installation. It is engineered to improve off-highway capabilities, including rock crawling, aggressive trail riding, and overland expeditions, by providing increased ground clearance and improved suspension articulation. On-road, the suspension is tuned with dual rate coil springs and specialized shock valving to deliver a smooth, compliant ride, balancing off-road durability with everyday comfort. The heavy-duty link arms are constructed from robust materials to withstand demanding conditions and ensure long-lasting performance.

This suspension kit is tailored for 2018-2022 Jeep JL models equipped with four-wheel drive and four-door configurations. It is compatible with factory control arm mounts, making it a direct bolt-on upgrade that does not require extensive modifications. Designed for off-road use, it enhances vehicle capability for trail driving, rock crawling, and overland adventures while maintaining a comfortable on-road ride. The kit includes all necessary components for installation, ensuring a complete and reliable upgrade. Ideal for off-road enthusiasts and daily drivers alike, this suspension system provides improved durability, articulation, and ride quality for a versatile driving experience.

Overview

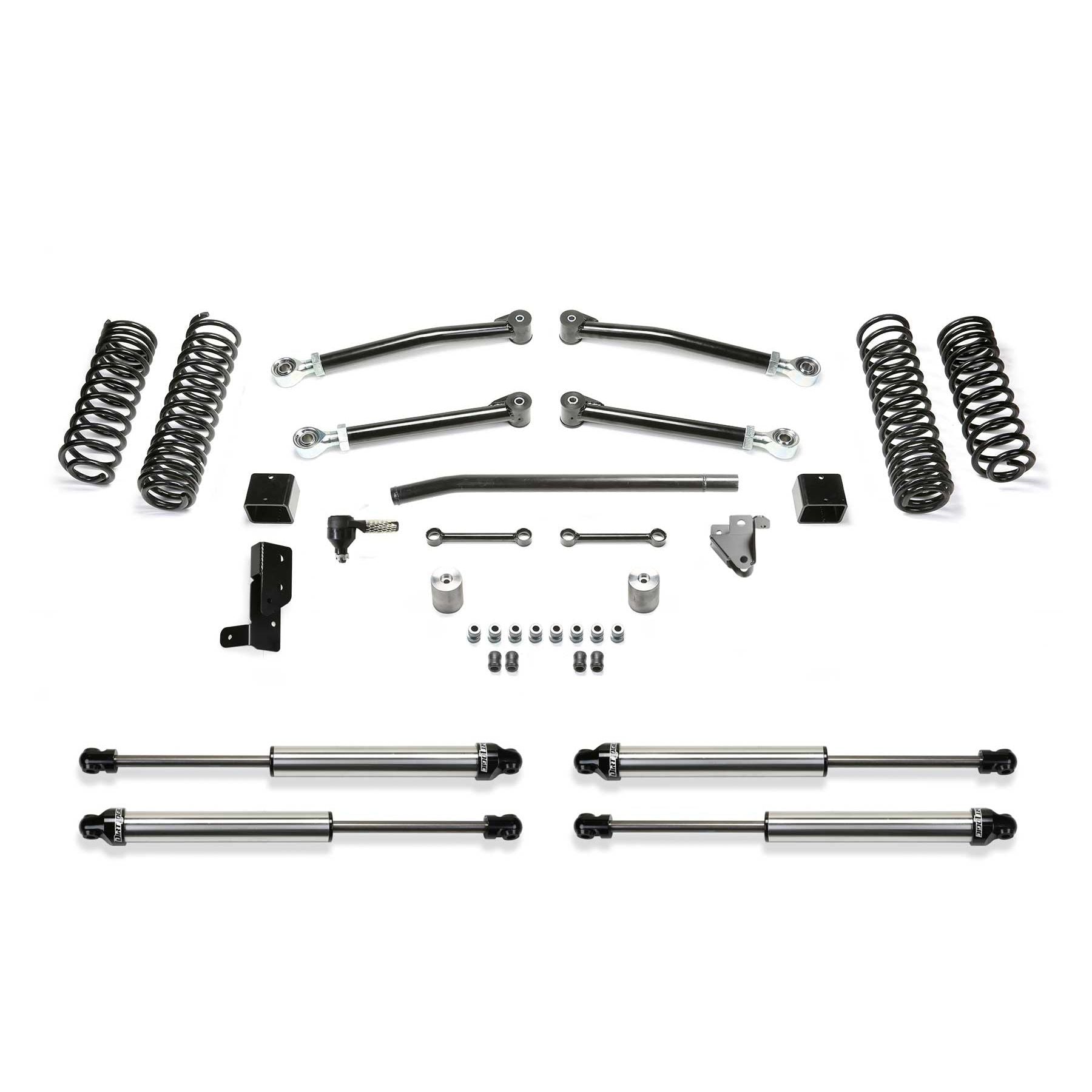

This Trail system provides enhanced suspension performance to address all variants of off highway travel use including rock crawling, aggressive trail use and overland expeditions. On road, the suspension has been tuned with proper dual rate coil springs and shock valving to provide a very compliant ride that you will appreciate. The system is a complete short arm suspension that utilizes the factory control arm mounts for an easy installation. The Fabtech heavy duty link arms are constructed of 1.75in OD. .250in thick wall steel tubing that are guaranteed never to bend. They come with large poly urethane bushings on one end with internal threads on the other to accept the ground breaking Fabtech 5 Ton Joint for longevity and a quiet ride. Fabtech's long travel Dual Rate coil Springs are corner specific to the JL. This keeps the vehicle level side to side and allows for increased suspension travel. The first stage of the spring provides a soft ride with the ability to extend for additional travel. The second stage is designed to handle the payload of the vehicle and address large impact absorption at higher speeds. To address the steering geometry with the increased ride height, a Draglink Flip System along with a heavy duty Track Bar bracket is included. This relocates the steering geometry to the factory plane allowing for full articulation without binding the draglink ends in extreme conditions. The factory angle of the draglink to the pitman arm does not change and there is no increased side load on the steering box sector shaft as compared to using a dropped pitman arm. This helps extends the life of the steering box with the increased ride height. The heavy duty rear Track Bar bracket with side support maintains the factory roll center of the vehicle while centering the axle. Front and rear bumps stop extensions protect the suspension from over cycling. Each Fabtech component has been designed with specific features and benefits that create this quality

Attributes:

  • GTIN: 00674866106543
  • Brand Name: Fabtech

Extended Information:

  • Country of Origin: United States
  • Emissions : Released
  • Life Cycle Status: Available To Order

Packing Information:

  • Quantity of Each: 1
  • Package UOM: EA
  • Dimension: 39 x 45.8 x 21.6 inches
  • Weight: 183.5 lb
