Fabtech 3in Trail w/ DLSS Shocks | Jeep JT 4WD (20-22) (K4167DL)

Fabtech 3in Trail w/ DLSS Shocks | Jeep JT 4WD (20-22) (K4167DL)

K4167DL

Out of stock

$2,860.82 USD
$3,362.54 USD $2,860.82 USD
ADDITIONAL DISCOUNTS APPLIED AT CHECKOUT Sold out

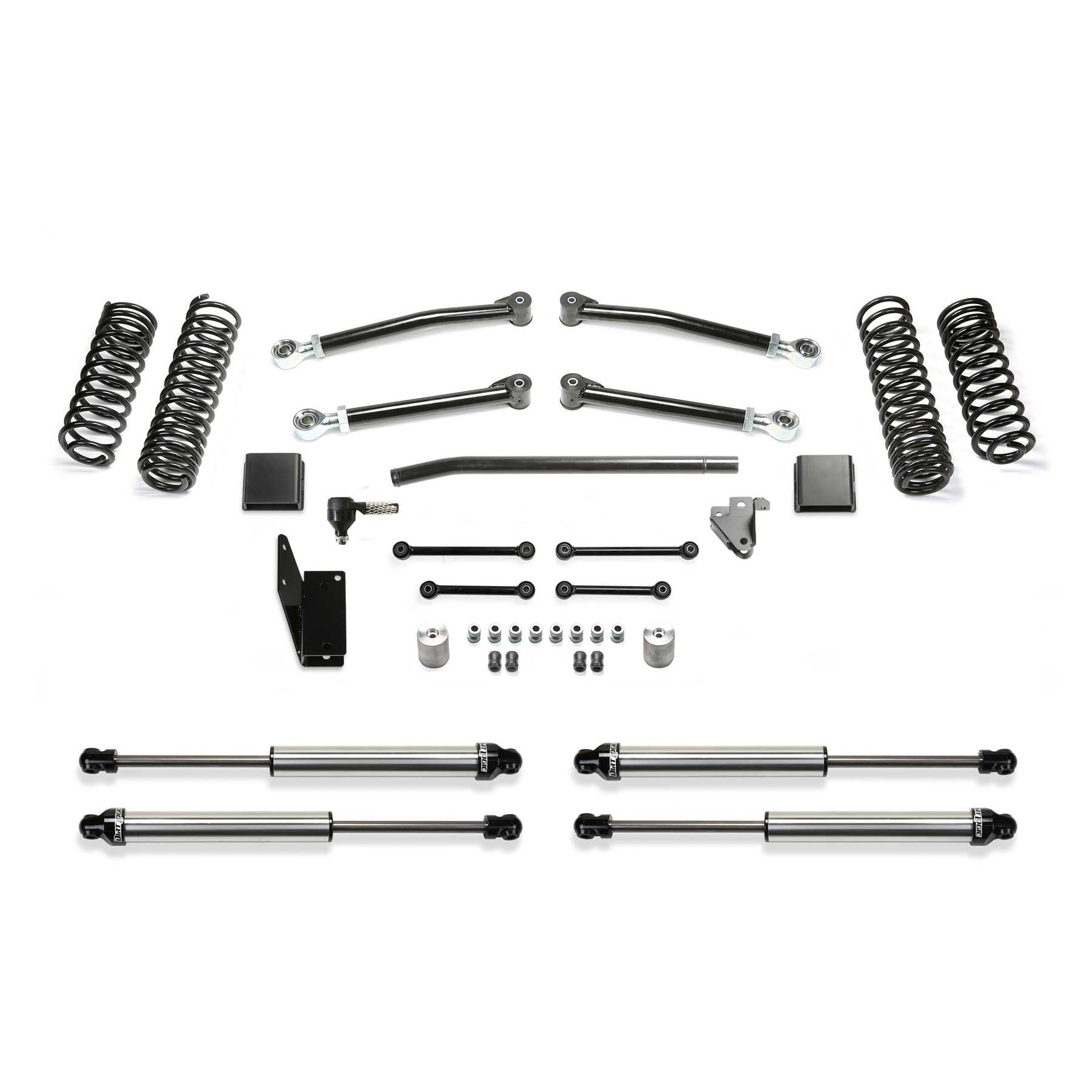

The Fabtech K4167DL Trail Lift Kit is a comprehensive suspension upgrade designed for the Jeep Gladiator JT 4WD models from 2020 to 2022. This 3-inch lift system features dual-rate coil springs and specially tuned shock valving to enhance off-road performance across various terrains, including rock crawling, aggressive trail riding, and overland expeditions. Constructed with high-quality materials, the kit offers improved ground clearance and articulation while maintaining a compliant and comfortable ride. The system utilizes a complete short arm suspension setup, leveraging factory lower control arm mounts for straightforward installation. The Fabtech lower link arms contribute to increased durability and stability during demanding off-road conditions.

This lift kit is specifically engineered for 2020-2022 Jeep Gladiator JT models with 4WD, making it an ideal upgrade for off-road enthusiasts seeking enhanced capability and performance. It is a direct bolt-on replacement that does not require extensive modifications, simplifying the installation process. The kit includes all necessary components for a complete upgrade, ensuring optimal fitment and function. Suitable for off-road adventures, trail riding, and overland travel, this suspension system provides increased clearance, better wheel travel, and improved handling on rugged terrain.

Overview

This Trail Lift Kit provides enhanced suspension performance to address all variants of off highway travel use including rock crawling, aggressive trail use and overland expeditions. This Gladiator lift kit has been tuned with proper dual rate coil springs and shock valving to provide a very compliant ride that you will appreciate. The system is a complete short arm suspension that utilizes the factory lower control arm mounts for an easy installation. The Fabtech lower link arms are constructed of thick wall steel tubing that are guaranteed never to bend. They come with large polyurethane bushings on one end with internal threads on the other to accept the groundbreaking Fabtech 5 Ton Joint for longevity and a quiet ride. Fabtech's dual rate Gladiator coil springs are corner specific to the Jeep JT. This keeps the vehicle level side to side and allows for increased suspension travel. The first stage of the spring provides a soft ride with the ability to extend for additional travel. The second stage is designed to handle the payload of the vehicle and address large impact absorption at higher speeds. To address the steering geometry with the increased ride height, a Draglink Flip kit along with a heavy duty Track Bar bracket is included. This relocates the Gladiator steering geometry to the factory plane allowing for full articulation without binding the draglink ends in extreme conditions. The rear Gladiator suspension receives a heavy duty Track Bar bracket to center the axle under the vehicle with the new ride height and help retain the factory roll center of the vehicle. Front and rear bumps stop extensions protect the Jeep Gladiator suspension from over cycling. This popular Jeep Gladiator lift kit is a top choice for daily drivers that enjoy tackling tough trails and overlanding with the comfort that they have a high quality complete suspension under their Gladiator. FEATURES: CONTROL LINK ARMS - Proper factory bushing cross bolt angles are parallel o

Attributes:

  • GTIN: 00674866109490
  • Brand Name: Fabtech

Extended Information:

  • Country of Origin: United States
  • Emissions : Released
  • Life Cycle Status: Available To Order

Packing Information:

  • Quantity of Each: 1
  • Package UOM: EA
  • Dimension: 35.4 x 44.8 x 21.5 inches
  • Weight: 210.2 lb
