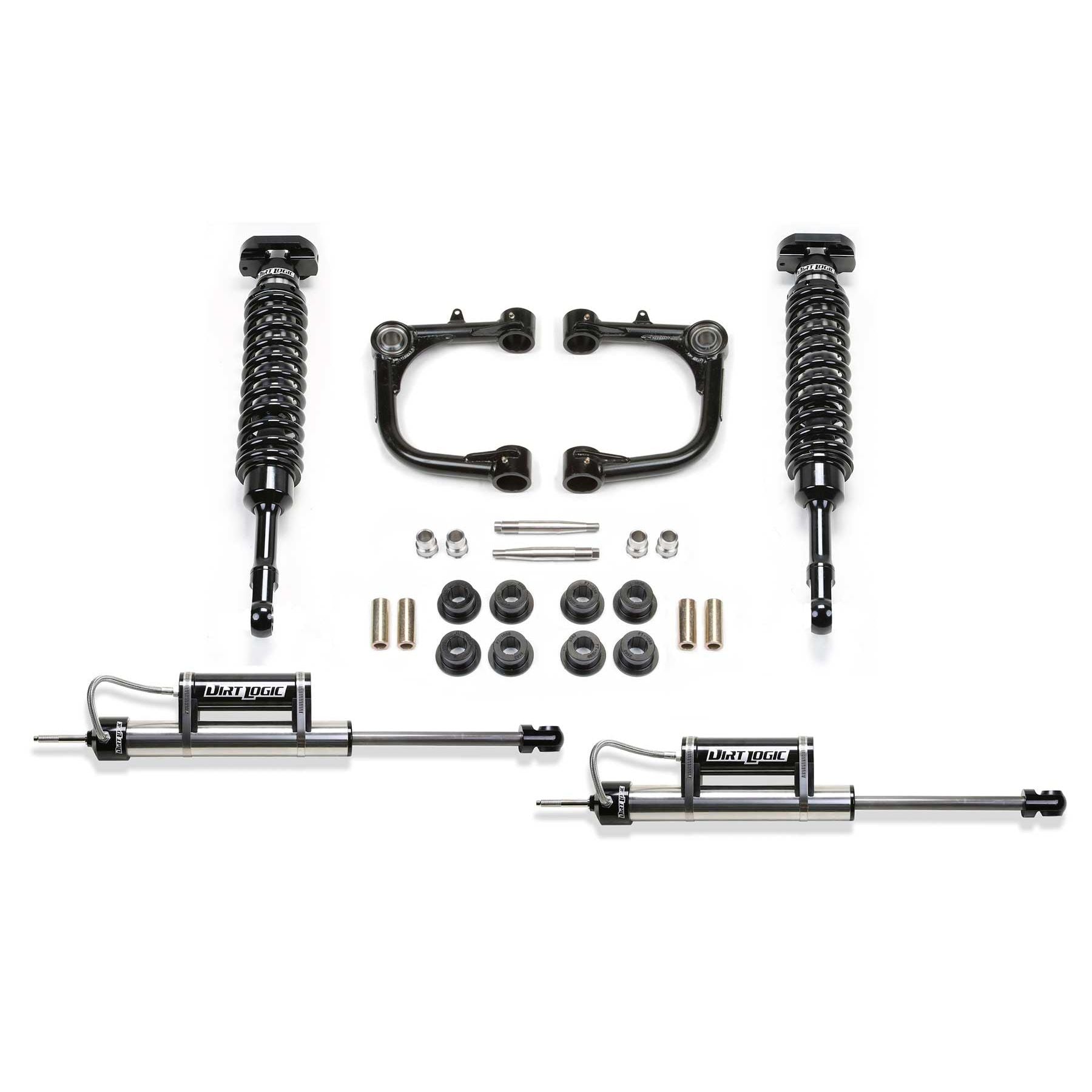

• Fabtech 3" Upper Control Arms & 2.5" Dual Rate Coilover System w/ Dual Rate Reservoir Rear Shocks
1 1

Fabtech 3" UCA & 2.5" D&R C/O System | Toyota FJ Cruiser 07-09 (K7031DL) (K7031DL)

Fabtech 3" UCA & 2.5" D&R C/O System | Toyota FJ Cruiser 07-09 (K7031DL) (K7031DL)

K7031DL

Out of stock

$2,828.42 USD
$3,324.45 USD $2,828.42 USD
ADDITIONAL DISCOUNTS APPLIED AT CHECKOUT Sold out

The Fabtech 3-inch Uniball Upper Control Arms and 2.5-inch Dirt Logic Coilover System are high-performance suspension components designed for severe off-road use on the Toyota FJ Cruiser from 2007 to 2009. The control arms replace the stock upper control arms, which are prone to flex and ball joint failure, with heavy-duty construction built to withstand aggressive off-road conditions. The Dirt Logic 2.5 stainless steel coilover shocks offer superior damping capabilities and increased wheel travel, enhancing off-road capability and ride quality. The system also features front sway bar relocation for improved articulation and stability during rugged terrain driving. These components are engineered for durability and performance, ensuring reliable handling in demanding environments.

Designed for 2007-2009 Toyota FJ Cruiser models, these components serve as a direct upgrade for stock suspension systems, providing increased ground clearance and off-road performance. The kit is suitable for off-road enthusiasts seeking improved durability and handling on challenging trails. Installation involves replacing existing control arms with the included uniball units and mounting the coilover shocks, offering a bolt-on upgrade that enhances suspension travel and strength. Compatibility with stock or aftermarket suspension setups makes this system ideal for off-road adventures, trail riding, and overlanding, delivering a robust and reliable suspension solution for demanding off-road applications.

Overview

Fabtech's Uniball Upper Control Arms are designed for severe duty use with stock and most aftermarket suspension systems. These Arms replace the thin stock upper control arms that are prone to flex and ball joint failure with heavy duty construction designed for aggressive offroad driving. The Dirt Logic 2.5 Stainless Steel Coilover front shocks provide superior damping for rugged offroad use with additional Wheel travel when combined with the Uniball Upper Control Arms. Front sway bar relocation bracket are included to provide clearance for the large Dirt Logic 2.5 Coilover Stainless Steel shocks. The rear of the vehicle receives Dirt Logic 2.25 Stainless Steel reservoir shocks. Reservoir shocks are required so that there is no loss of suspension travel due to the large component sizes of the Dirt Logic 2.25 shocks. This high end system will provide outstanding suspension performance with minimal lift for clearance of 33'' tall tires. Replaces upper ball joints with 1'' FK Stainless PTFE Uniballs. Heavy duty upgrade for stock and aftermarket suspensions. No modification to spindle required for installation. Includes Arms, Uniballs, Pins and Misalignments. UCA Tube Specs - .120'' Wall 4130 Chromoly. 1.25'' OD

Attributes:

  • GTIN: 00674866097988
  • Brand Name: Fabtech

Extended Information:

  • Country of Origin: United States
  • Emissions : Released
  • Life Cycle Status: Available To Order

Packing Information:

  • Quantity of Each: 1
  • Package UOM: EA
  • Dimension: 35.75 x 23.75 x 15.5 inches
  • Weight: 107.6 lb
