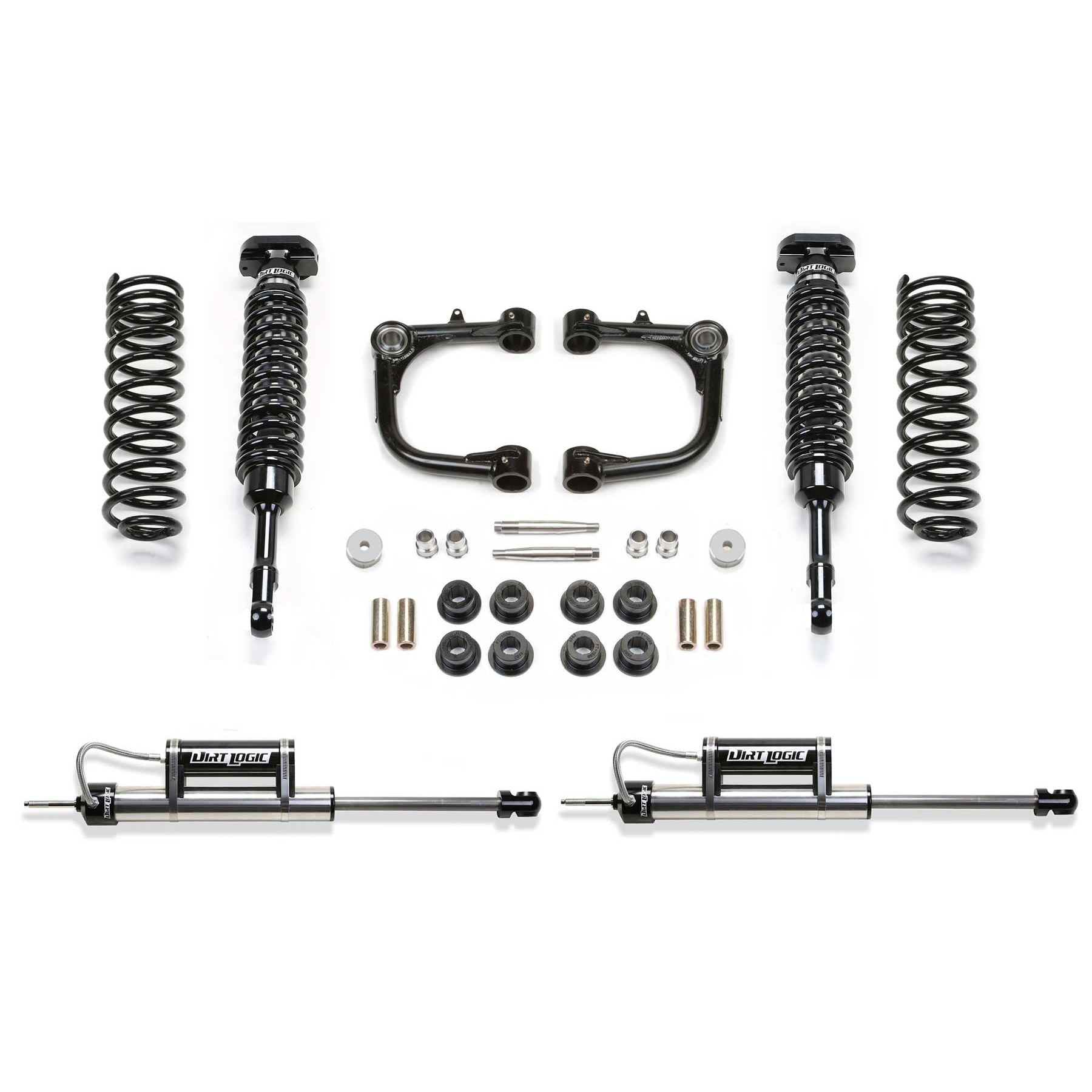

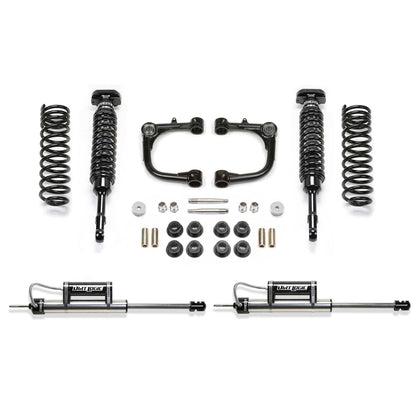

Fabtech 3" UCA System w/ Dual 2.5" Coilover & Rear Reservoir | Toyota 4Runner (10-22) K7079DL

Fabtech 3" UCA System w/ Dual 2.5" Coilover & Rear Reservoir | Toyota 4Runner (10-22) K7079DL

K7079DL

Out of stock

$3,188.74 USD
$3,747.96 USD $3,188.74 USD
ADDITIONAL DISCOUNTS APPLIED AT CHECKOUT Sold out

The Fabtech 3" UCA System with Dual 2.5" Coilover and Rear Reservoir is a high-performance suspension upgrade designed for the Toyota 4Runner models from 2010 to 2022. This system features heavy-duty tubular upper control arms constructed from 1.25-inch OD, .120-inch wall thick chromoly tubing, offering enhanced durability and strength. The control arms incorporate stainless steel uniballs with a 1-inch diameter, allowing for precise movement and reduced wear. When paired with Fabtech's Stainless Steel Dirt Logic 2.5 Coilover shocks, this setup provides up to 10 inches of wheel travel, significantly improving off-road capability and ride quality. The design ensures a mild lift height, increasing ground clearance while maintaining factory compatibility and ease of installation.

This control arm system is engineered specifically for the front suspension of 2010-2022 Toyota 4Runners, serving as a direct bolt-on upgrade that does not require drilling or extensive modifications. It is ideal for off-road enthusiasts seeking increased wheel travel, improved articulation, and enhanced durability for demanding trail conditions. The kit includes the upper control arms and necessary mounting hardware, ensuring a straightforward installation process. Suitable for off-road, trail, and recreational use, this system enhances vehicle performance while maintaining factory ride characteristics and reliability.

Overview

Obtain increased Wheel travel with a mild lift height with this heavy duty Upper Control Arm system. The tubular Upper Control Arms feature 1.25in OD, .120in wall thick chromoly tube construction with 1in diameter Stainless Steel Uniballs that attach to the factory spindle without drilling. The replacement UCA's have been designed to work in conjunction with Fabtech's Stainless Steel Dirt Logic 2.5 Coilover shocks providing 10in of Wheel travel for a complete front suspension system upgrade. The Dirt Logic 2.5 Coilovers feature cold wound coil springs for a smooth ride with the ability to tackle aggressive offroad terrain. Fabtech rear Dual Rate coil springs replace the factory springs with a two stage design. In the first stage they provide a supple ride quality at lower speeds with the ability to allow for more Wheel travel when traversing large offroad obstacles. The second stage provides increased spring rate for load carrying capacity of gear while providing a superior ride at higher speeds. The rear Dirt Logic 2.25 shocks will also provide 9&quo; of travel due the remote reservoir allowing for the full stroke of the shock. This system is perfect for those that want increased suspension performance with a low lift height. A great choice for daily drivers that overland and hit the trails on weekends. Arms eliminate upper ball joint with super strong 1in ID Stainless American Uniball. Chromoly tubing reduces flex found in stock arms for more positive road feel. 17-4 Stainless Steel Heat treated Uniball pin fits into factory ball joint taper without modification to the spindle. Dual Rate rear coil springs provide increased flexibity and smooth ride. Great system for the daily driver that requires increased offroad performance. Dirt Logic Shocks allows for Wheel travel of 10in Front and 9in Rear. Stainless Steel Body. 7/8in NitroSteel Piston Rod.

Attributes:

  • GTIN: 00674866110977
  • Brand Name: Fabtech

Extended Information:

  • Country of Origin: United States
  • Emissions : Released
  • Life Cycle Status: Available To Order

Packing Information:

  • Quantity of Each: 1
  • Package UOM: EA
  • Dimension: 35.75 x 30.75 x 15.5 inches
  • Weight: 133 lb
