Fabtech 3in UCA System w/ Dual 2.5in Coilover & Rear D&S Shocks | Toyota 4Runner (10-21) (K7082DL)

Fabtech 3in UCA System w/ Dual 2.5in Coilover & Rear D&S Shocks | Toyota 4Runner (10-21) (K7082DL)

K7082DL

Out of stock

$3,447.14 USD
$4,051.68 USD $3,447.14 USD
ADDITIONAL DISCOUNTS APPLIED AT CHECKOUT Sold out

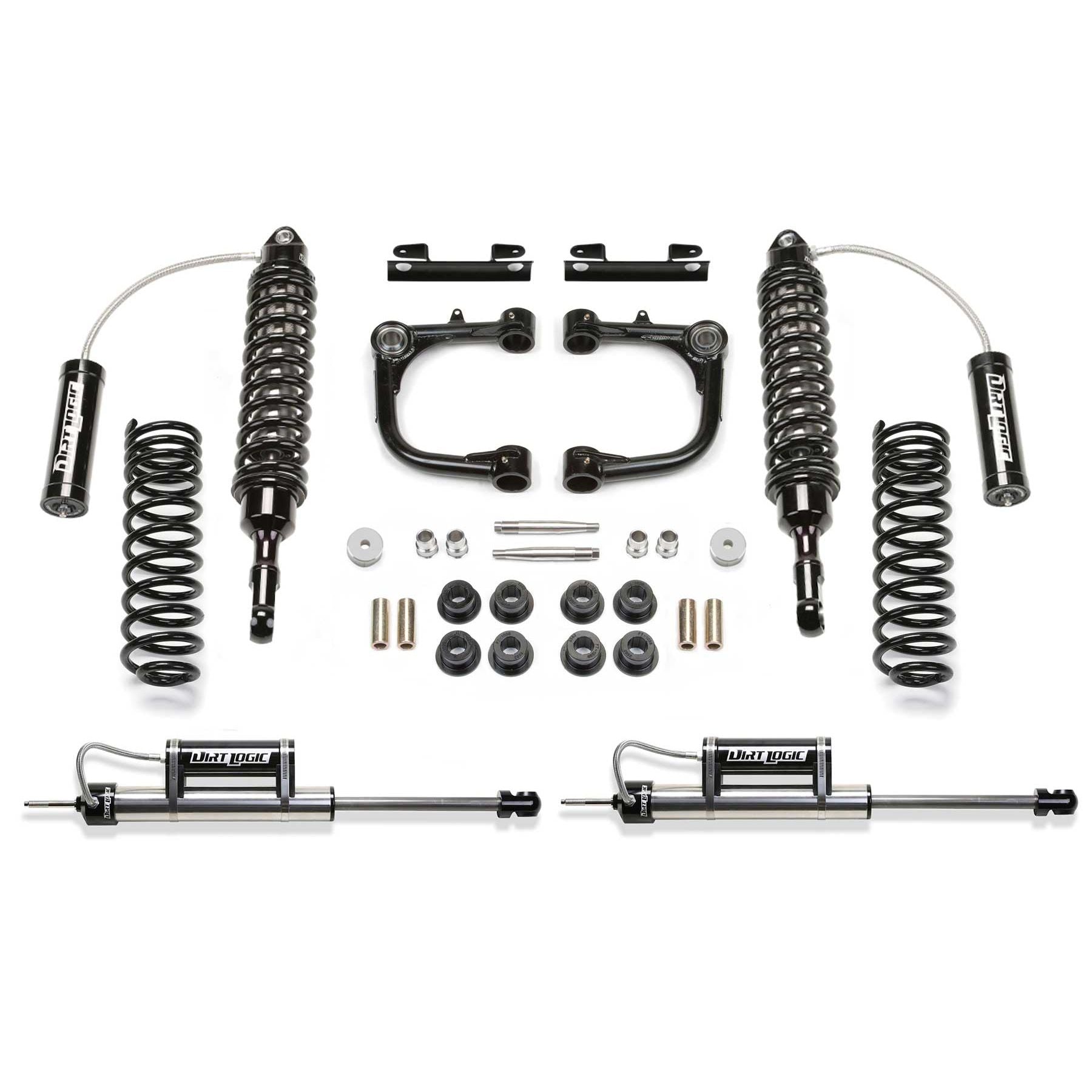

The Fabtech 3-inch UCA System with Dual 2.5-inch Coilover and Rear D&S Shocks is a heavy-duty suspension upgrade designed for the Toyota 4Runner from 2010 to 2021. This system features tubular upper control arms constructed from 1.25-inch OD, .120-inch wall thick chromoly tubing, offering increased wheel travel and a mild lift height. The control arms incorporate 1-inch stainless steel uniballs that attach directly to the factory spindle without the need for drilling, ensuring a secure and precise fit. Paired with Fabtech's Stainless Steel Dirt Logic 2.5 coilover shocks, this setup provides a total of 10 inches of wheel travel, significantly enhancing off-road capability and ride quality. The components are engineered for durability and performance, making it an ideal choice for enthusiasts seeking a reliable suspension upgrade.

This control arm system is specifically designed for 2010-2021 Toyota 4Runners equipped with the stock or upgraded suspension components. It is a direct bolt-on replacement that integrates seamlessly with the existing chassis and suspension geometry. Suitable for off-road adventures, trail riding, and overlanding, this kit improves wheel articulation and overall vehicle stability. Installation involves replacing the factory upper control arms with the provided tubular units, which are compatible with the factory or aftermarket coilovers. The kit includes the control arms and necessary mounting hardware, ensuring a comprehensive upgrade for those looking to enhance their vehicle’s off-road performance and durability.

Overview

Obtain increased Wheel travel with a mild lift height with this heavy duty Upper Control Arm system. The tubular Upper Control Arms feature 1.25in OD, .120in wall thick chromoly tube construction with 1in diameter Stainless Steel Uniballs that attach to the factory spindle without drilling. The replacement UCA's have been designed to work in conjunction with Fabtech's Stainless Steel Dirt Logic 2.5 Coilover shocks providing 10in of Wheel travel for a complete front suspension system upgrade. The Dirt Logic 2.5 Coilovers feature cold wound coil springs for a smooth ride with the ability to tackle aggressive offroad terrain. Fabtech rear Dual Rate coil springs replace the factory springs with a two stage design. In the first stage they provide a supple ride quality at lower speeds with the ability to allow for more Wheel travel when traversing large offroad obstacles. The second stage provides increased spring rate for load carrying capacity of gear while providing a superior ride at higher speeds. The rear Dirt Logic 2.25 shocks will also provide 9in of travel due the remote reservoir allowing for the full stroke of the shock. This system is perfect for those that want increased suspension performance with a low lift height. A great choice for daily drivers that overland and hit the trails on weekends. Arms eliminate upper ball joint with super strong 1in ID Stainless American Uniball. Chromoly tubing reduces flex found in stock arms for more positive road feel. 17-4 Stainless Steel Heat treated Uniball pin fits into factory ball joint taper without modification to the spindle. Dual Rate rear coil springs provide increased flexibity and smooth ride. Great system for the daily driver that requires increased offroad performance. Dirt Logic Shocks allows for Wheel travel of 10in Front and 9in Rear. Stainless Steel Body. 7/8in NitroSteel Piston Rod.

Attributes:

  • GTIN: 00674866111004
  • Brand Name: Fabtech

Extended Information:

  • Country of Origin: United States
  • Emissions : Released
  • Life Cycle Status: Available To Order

Packing Information:

  • Quantity of Each: 1
  • Package UOM: EA
  • Dimension: 35.75 x 30.75 x 15.5 inches
  • Weight: 143 lb
