• Fabtech 3" Upper Control Arm System w/ DLSS 2.5 Coilover Resi & Rear DLSS Resi | Toyota FJ 4WD (06-09) (K7038DL)
1 1

Fabtech 3 in Upper Control Arm System w/ DLSS 2.5 Coilover | Toyota FJ (06-09) (K7038DL)

Fabtech 3 in Upper Control Arm System w/ DLSS 2.5 Coilover | Toyota FJ (06-09) (K7038DL)

K7038DL

Out of stock

$3,208.43 USD
$3,771.10 USD $3,208.43 USD
ADDITIONAL DISCOUNTS APPLIED AT CHECKOUT Sold out

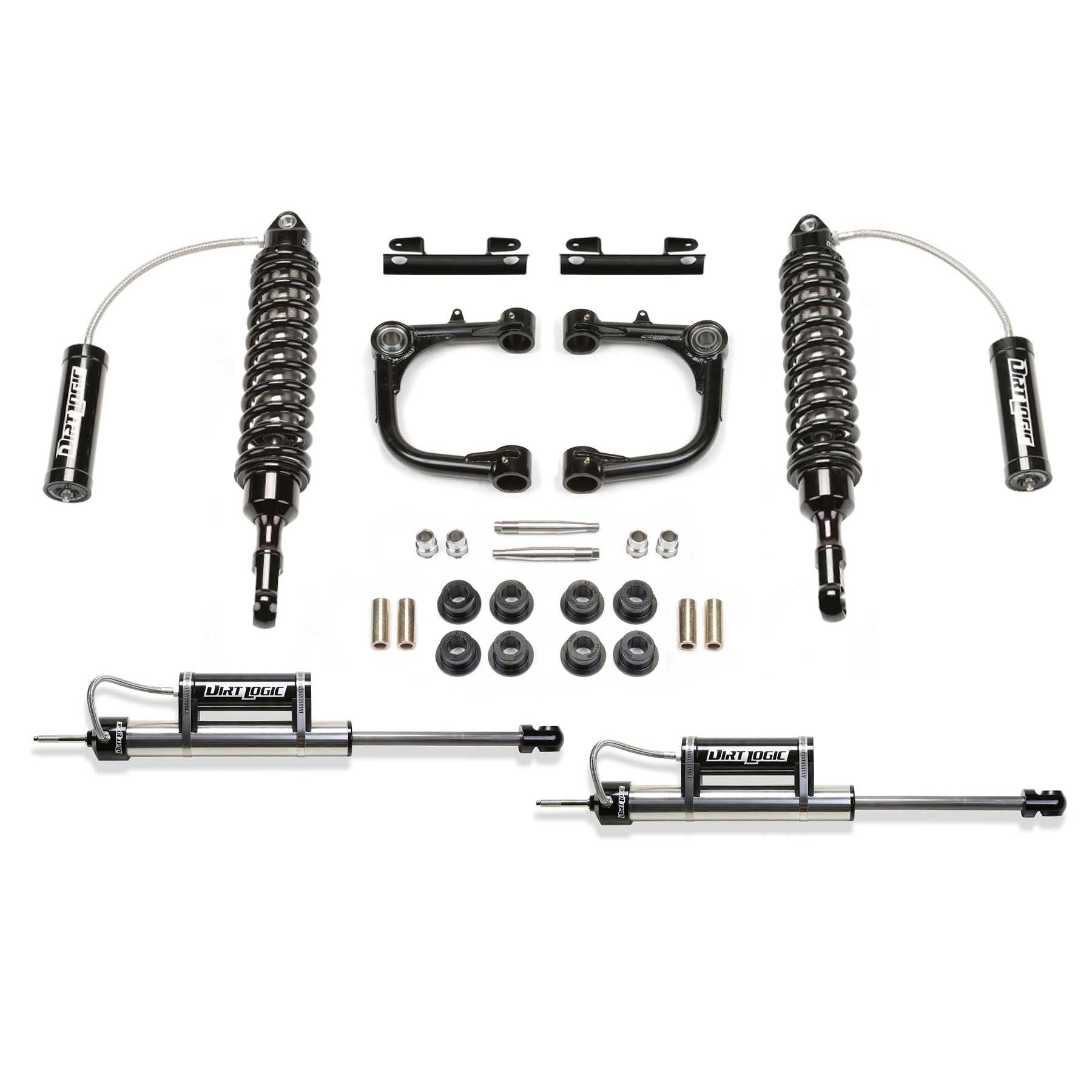

The Fabtech 3-inch Upper Control Arm System with Dirt Logic 2.5 Coilover for the Toyota FJ (2006-2009) is a heavy-duty suspension upgrade designed for severe off-road conditions. The uniball upper control arms replace the stock arms, which are prone to flex and ball joint failure, with robust construction built to withstand aggressive off-road driving. The Dirt Logic 2.50 coilover shocks offer superior damping and increased wheel travel, enhancing off-road capability and ride quality. The system also includes front sway bar relocation brackets, providing improved suspension articulation and stability during rugged terrain navigation. This setup is engineered for durability and performance, making it ideal for off-road enthusiasts seeking reliable, high-performance suspension components.

Designed specifically for 2006-2009 Toyota FJ models, this control arm and coilover kit is a direct bolt-on upgrade that enhances off-road performance and durability. It is suitable for aggressive off-road driving, including trail, rock crawling, and desert racing, where increased wheel travel and shock absorption are critical. The kit includes the upper control arms, Dirt Logic 2.50 coilover shocks, and sway bar relocation brackets, ensuring comprehensive suspension enhancement. Installation is intended for experienced enthusiasts or professional mechanics familiar with off-road suspension systems. This system provides a significant upgrade over stock components, delivering improved articulation, stability, and durability for demanding off-road applications.

Overview

Fabtech's Uniball Upper Control Arms are designed for severe duty use with stock and most aftermarket suspension systems. These Arms replace the thin stock upper control arms that are prone to flex and ball joint failure with heavy duty construction designed for aggressive offroad driving. The Dirt Logic 2.50 Coilover front shocks provide superior damping for rugged offroad use with additional Wheel travel when combined with the Uniball Upper Control Arms. Front sway bar relocation bracket are included to provide clearance for the large Dirt Logic 2.5 Coilover shocks. The rear of the vehicle receives Dirt Logic 2.25 reservoir shocks. Reservoir shocks are required so that there is no loss of suspension travel due to the large component sizes of the Dirt Logic 2.25 shocks. This high end system will provide outstanding suspension performance with minimal lift for clearance of 33'' tall tires. Form and Function - Replaces upper ball joints with 1'' FK Stainless PTFE Uniballs - Heavy duty upgrade for stock and aftermarket suspensions - No modification to spindle required for installation - Includes Arms, Uniballs, Pins, Misalignments Dirt Logic Shocks - UCA Tube Specs - .120'' Wall 4130 Chromoly. 1.25'' OD

Attributes:

  • GTIN: 00674866099753
  • Brand Name: Fabtech

Extended Information:

  • Country of Origin: United States
  • Emissions : Released
  • Life Cycle Status: Available To Order

Packing Information:

  • Quantity of Each: 1
  • Package UOM: EA
  • Dimension: 35.75 x 23.75 x 15.5 inches
  • Weight: 109.2 lb
