Fabtech 3.5in Uniball UCA System w/ DL 2.5 Coilovers & Rear DL Shocks | GM C/K1500 (K1063DL)

Fabtech 3.5in Uniball UCA System w/ DL 2.5 Coilovers & Rear DL Shocks | GM C/K1500 (K1063DL)

K1063DL

Out of stock

$2,751.02 USD
$3,233.48 USD $2,751.02 USD
ADDITIONAL DISCOUNTS APPLIED AT CHECKOUT Sold out

The Fabtech 3.5-inch Uniball UCA System with DL 2.5 Coilovers and Rear DL Shocks is a comprehensive suspension upgrade designed for GM C/K1500 trucks. This system provides a mild lift height, enabling the installation of 33-inch tall tires, enhancing off-road capability and ground clearance. The kit features Dirt Logic 2.5 Coilovers that deliver superior damping performance for aggressive off-road driving while maintaining a comfortable highway ride. The upgrade replaces the stock upper control arms with high-quality tubular Uniball arms, constructed from .120-inch wall 4130 chromoly tubing with a 1.50-inch outer diameter, allowing unrestricted movement throughout the suspension travel for improved articulation and durability.

Designed specifically for 1988-2002 GM C/K1500 models, this system is suitable for trucks used in off-road, trail, or daily driving applications. It offers a bolt-on installation with no need for extensive modifications, making it accessible for DIY enthusiasts and professional installers alike. The kit includes all necessary components for a complete upgrade, such as control arms, coilovers, and shocks, ensuring optimal fitment and performance. This suspension system enhances vehicle stability, handling, and off-road capability, making it an ideal choice for those seeking a reliable, high-performance lift solution for their GM C/K1500 pickup.

Overview

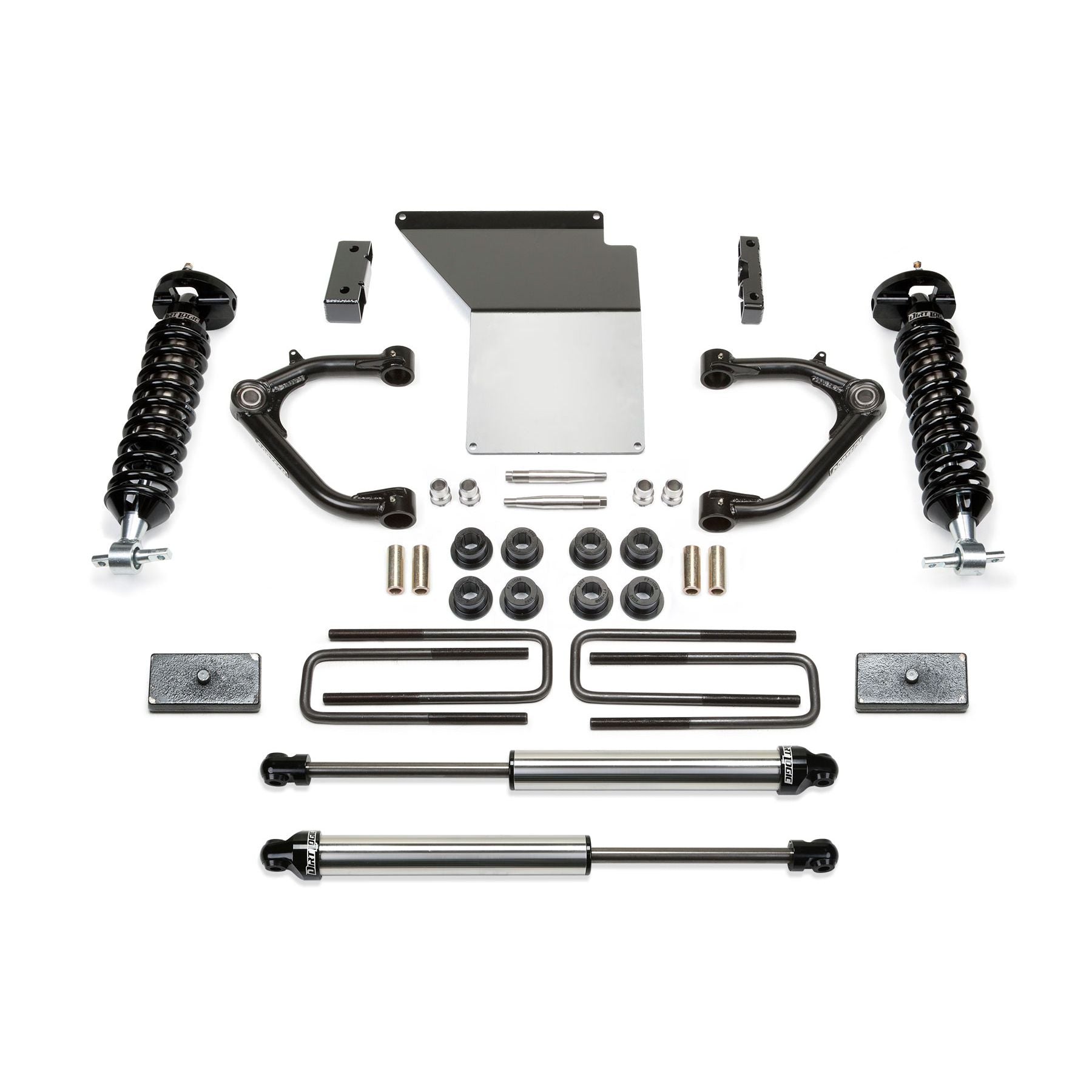

This system offers a mild lift height with easy installation for clearance of 33in tall tires on GM C/K1500s. Lift is accomplished with Dirt Logic 2.5 Coilovers that provide superior damping for aggressive offroad use and a good highway ride. The stock upper control arms are replaced with high quality tubular Uniball arms that allow unrestricted movement throughout the travel range. The arms are constructed of top quality material including .120in wall 4130 Chromoly tubing with a 1.50in OD and 1in FK Stainless PTFE Uniballs. These arms are the best on the market for aggressive offroad driving in harsh conditions. The front differential is relocated to keep CV angles proper with the new lift height while a 1/4in thick steel skid plate provides protection against offroad obstacles. Rear lift is accomplished with 1 1/2in rear lift block and u-bolts to help level the stance of the vehicles. Dirt Logic 2.25 rear shock absorbers replace the stock units for increased damping for both on and offroad use. - Best in class system for aggressive offroad use and good highway ride Increased ground clearance Top quality Uniball Upper Control Arms for aggressive offroad use 1in ID American made FK Uniballs with PTFE for ultimate strength Includes Dirt Logic 2.5 Coilovers for superior damping Increased fender clearance compared to a Leveling Kit for 33in tall tires Suspension can be restored to stock.

Attributes:

  • GTIN: 00674866095762
  • Brand Name: Fabtech

Extended Information:

  • Country of Origin: United States
  • Emissions : Released
  • Life Cycle Status: Available To Order

Packing Information:

  • Quantity of Each: 1
  • Package UOM: EA
  • Dimension: 45.5 x 13 x 14.5 inches
  • Weight: 124.2 lb
