Fabtech 3" Uniball UCA System w/ D&S Coilovers GM C/K1500 (14-18) (K1110DL)

Fabtech 3" Uniball UCA System w/ D&S Coilovers GM C/K1500 (14-18) (K1110DL)

K1110DL

Out of stock

$3,109.98 USD
$3,655.38 USD $3,109.98 USD
ADDITIONAL DISCOUNTS APPLIED AT CHECKOUT Sold out

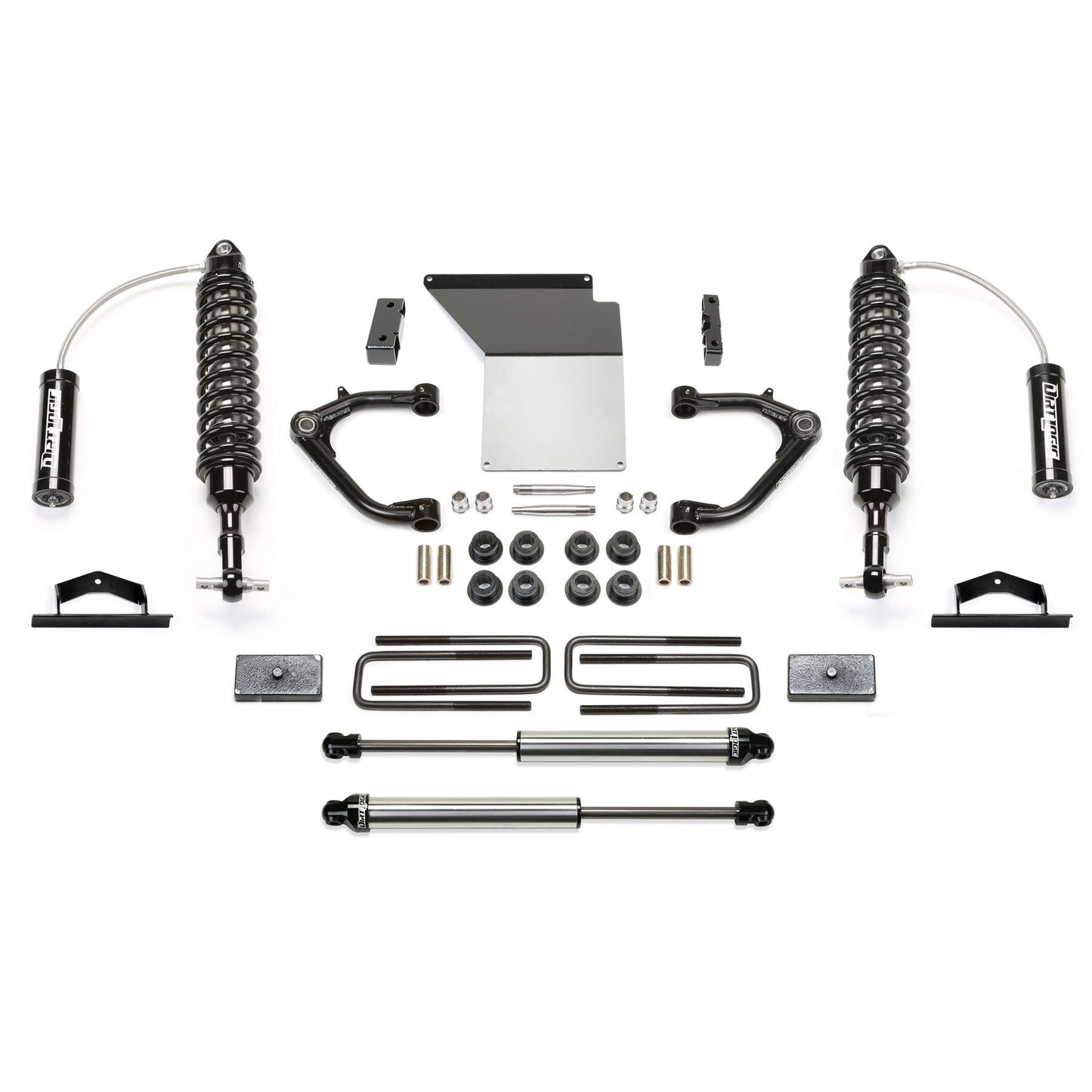

The Fabtech 3" Uniball UCA System with Dirt Logic Coilovers is a comprehensive suspension upgrade designed for 2014-2018 GM C/K1500 trucks. This system provides a mild lift height, enabling the installation of 33-inch tall tires while maintaining ride quality. The kit features Dirt Logic 2.5 Coilovers that deliver superior damping performance, ideal for aggressive off-road driving and confident highway handling. The high-quality tubular upper control arms replace the stock units, offering unrestricted movement and enhanced durability throughout the suspension's travel range. Constructed from top-grade materials, including .120-inch wall 4130 chromoly, these arms ensure strength and longevity under demanding conditions.

Designed specifically for 2014-2018 GM C/K1500 models with factory aluminum suspension, this system is a direct bolt-on upgrade that simplifies installation. It is suitable for off-road enthusiasts seeking increased ground clearance and improved suspension articulation, as well as those wanting a reliable, performance-oriented lift. The kit includes all necessary components for a complete installation, ensuring compatibility with factory or aftermarket parts. This system enhances off-road capability while maintaining a comfortable highway ride, making it an excellent choice for daily drivers and weekend adventurers alike.

Overview

This system offers a mild lift height with easy installation for clearance of 33'' tall tires on 2014-15 K1500's w/ factory Aluminum suspension. Lift is accomplished with Dirt Logic 2.5 Coilovers that provide superior damping for aggressive offroad use and a good highway ride. The stock upper control arms are replaced with high quality tubular Uniball arms that allow unrestricted movement throughout the travel range. The arms are constructed of top quality material including .120'' wall 4130 Chromoly tubing with a 1.50'' OD and 1'' FK Stainless PTFE Uniballs. These arms are the best on the market for aggressive offroad driving in harsh conditions. The front differential is relocated to keep CV angles proper with the new lift height while a 1/4'' thick steel skid plate provides protection against offroad obstacles. Rear lift is accomplished with 1 1/2'' rear lift block and u-bolts to help level the stance of the vehicles. Dirt Logic 2.25 rear shock absorbers replace the stock units for increased damping for both on and offroad use. -Best in class system for aggressive offroad use and good highway ride -Increased ground clearance -Top quality Uniball Upper Control Arms for aggressive offroad use -1'' ID American made FK Uniballs with PTFE for ultimate strength -Includes Dirt Logic 2.5 Coilovers for superior damping -Increased fender clearance compared to a Leveling Kit for 33'' tall tires -Suspension can be restored to stock. NOTE- Before ordering visually check your vehicle's factory suspension for aluminum or steel version. This system will only fit factory aluminum suspension vehicles.

Attributes:

  • GTIN: 00674866099005
  • Brand Name: Fabtech

Extended Information:

  • Country of Origin: United States
  • Emissions : Released
  • Life Cycle Status: Available To Order

Packing Information:

  • Quantity of Each: 1
  • Package UOM: EA
  • Dimension: 45.5 x 13 x 14.5 inches
  • Weight: 132.8 lb
