Fabtech 4in Uniball UCA System w/ Rear Perf Shocks | GM C/K1500 (14-18) (K1071)

Fabtech 4in Uniball UCA System w/ Rear Perf Shocks | GM C/K1500 (14-18) (K1071)

K1071

Out of stock

$972.22 USD
$1,142.72 USD $972.22 USD
ADDITIONAL DISCOUNTS APPLIED AT CHECKOUT Sold out

The Fabtech 4-inch Uniball UCA System with Rear Performance Shocks for GM C/K1500 (2014-2018) is a comprehensive suspension upgrade designed to enhance off-road capability and tire clearance. This system provides a mild lift of approximately 4 inches, allowing the use of 33-inch tall tires while maintaining a comfortable ride quality. The lift is achieved through the use of factory front coilover shocks combined with steel spacers that help retain the stock suspension geometry. The kit features high-quality tubular upper control arms made from .120-inch wall 4130 chromoly tubing, which facilitate unrestricted movement across the full suspension travel, improving handling and durability. The inclusion of performance shocks ensures improved stability and ride comfort during off-road excursions or daily driving.

Designed specifically for 2014-2018 GM C/K1500 trucks, this system is a direct bolt-on upgrade that replaces the stock upper control arms with heavy-duty tubular Uniball arms. It is suitable for those seeking increased ground clearance and improved suspension articulation for off-road use, while still maintaining a factory-like ride quality on the street. The kit is intended for use on trucks with stock or slightly modified setups and does not require extensive modifications for installation. It includes all necessary components for a straightforward installation, making it an ideal choice for off-road enthusiasts and truck owners looking to enhance their vehicle’s performance and capability.

Overview

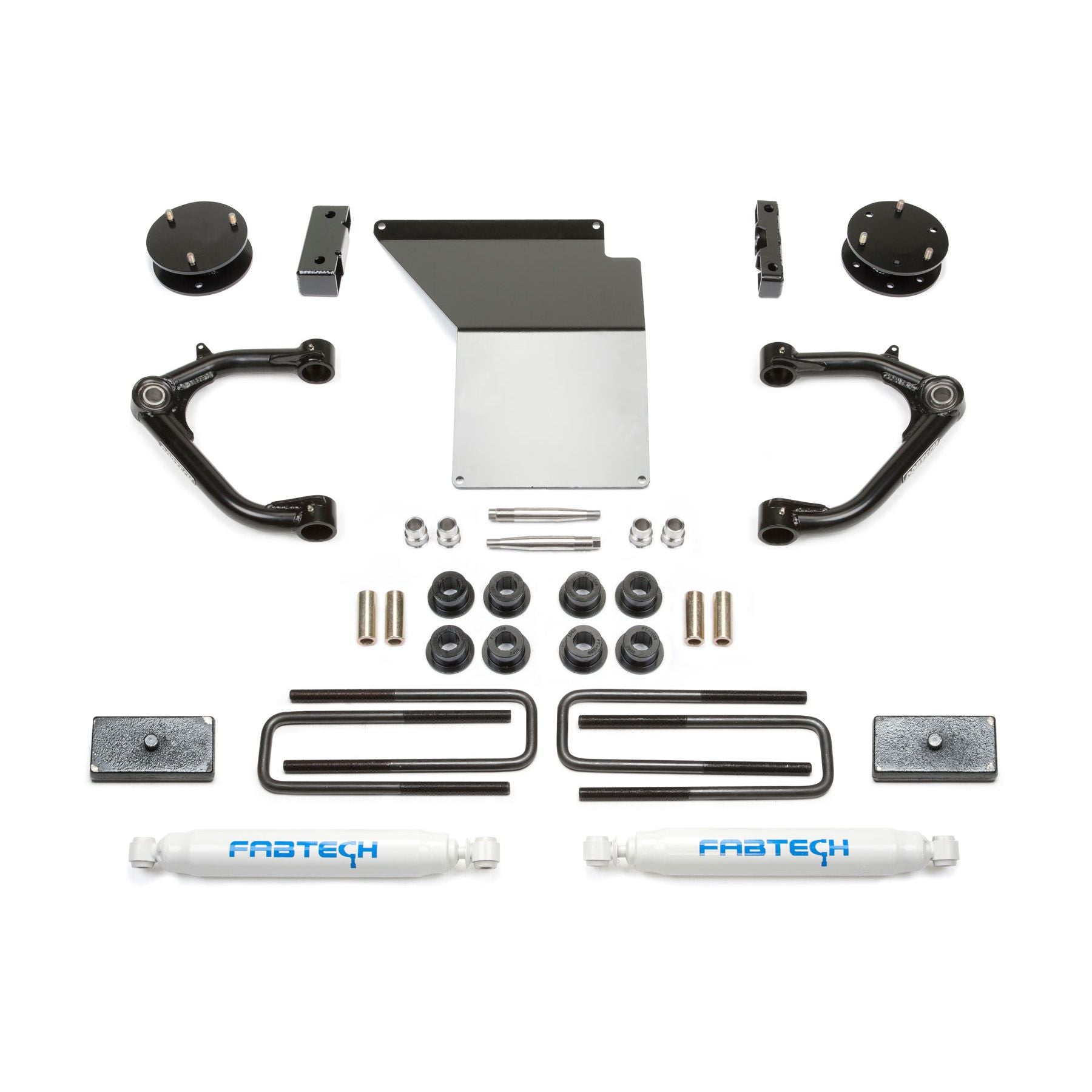

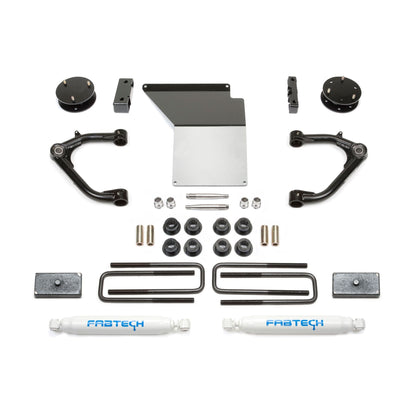

This system offers a mild lift height with easy installation for clearance of 33in tall tires on K1500s. Lift is accomplished by utilizing the factory front Coilover shocks with steel spacer system that helps retain the stock ride of the front suspension. The stock upper control arms are replaced with high quality tubular Uniball arms that allow unrestricted movement throughout the travel range. The arms are constructed of top quality material including .120in wall 4130 Chromoly tubing with a 1.50in OD and 1in FK Stainless PTFE Uniballs. These arms are the best on the market for aggressive offroad driving in harsh conditions. The front differential is relocated to keep CV angles proper with the new lift height while a 1/4in thick steel skid plate provides protection against offroad obstacles. Rear lift is accomplished with 1 1/2in rear lift block and u-bolts to help level the stance of the vehicles. Performance rear shock absorbers replace the stock units for increased damping. - Increased ground clearance. -Top quality Uniball Upper Control Arms for aggressive offroad use. -1in ID American made FK Uniballs with PTFE for ultimate strength. -Increased fender clearance compared to a Leveling Kit for 33in tall tires. -Suspension can be restored to stock.

Attributes:

  • GTIN: 00674866087750
  • Brand Name: Fabtech

Extended Information:

  • Country of Origin: United States
  • Emissions : Released
  • Life Cycle Status: Available To Order

Packing Information:

  • Quantity of Each: 1
  • Package UOM: EA
  • Dimension: 22.53 x 12 x 15.59 inches
  • Weight: 75.8 lb
