Fabtech 4in Uniball UCA System w/ Rear Stealth Shocks | GM C/K1500 (14-18) (K1071M)

Fabtech 4in Uniball UCA System w/ Rear Stealth Shocks | GM C/K1500 (14-18) (K1071M)

K1071M

Out of stock

$1,046.88 USD
$1,230.48 USD $1,046.88 USD
ADDITIONAL DISCOUNTS APPLIED AT CHECKOUT Sold out

The Fabtech 4-inch Uniball UCA System with Rear Stealth Shocks for GM C/K1500 (2014-2018) is a comprehensive suspension upgrade designed to enhance off-road capability and tire clearance. This system provides a mild lift height, allowing the installation of 33-inch tall tires while maintaining a smooth ride. The lift is achieved using factory front coilover shocks combined with steel spacers that help retain the stock ride quality. The kit features high-quality tubular upper control arms made from .120-inch wall 4130 chromoly tubing, offering unrestricted movement and improved durability throughout the suspension's travel range. The design emphasizes strength, performance, and ease of installation, making it suitable for both off-road adventures and daily driving.

Designed specifically for 2014-2018 GM C/K1500 trucks, this system is a direct bolt-on upgrade that replaces the stock upper control arms with high-performance Uniball arms. It is ideal for off-road enthusiasts seeking increased ground clearance and improved suspension articulation, as well as for those wanting a reliable, durable lift solution. The kit includes the necessary tubular control arms and rear stealth shocks, ensuring a complete upgrade for your vehicle. Suitable for off-road, trail, and daily use, this system enhances vehicle capability while preserving ride quality and handling characteristics.

Overview

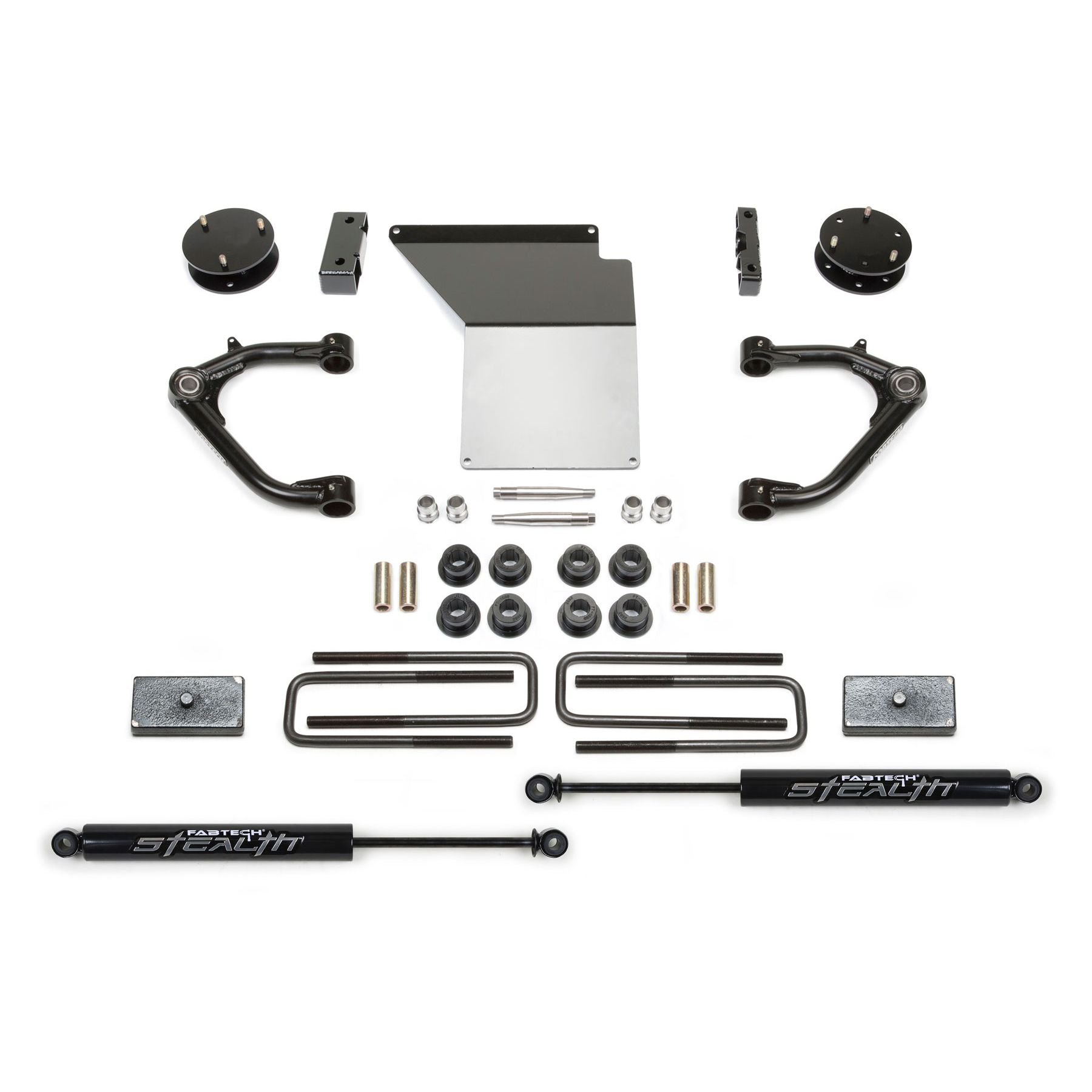

This system offers a mild lift height with easy installation for clearance of 33in tall tires on K1500s. Lift is accomplished by utilizing the factory front Coilover shocks with steel spacer system that helps retain the stock ride of the front suspension. The stock upper control arms are replaced with high quality tubular Uniball arms that allow unrestricted movement throughout the travel range. The arms are constructed of top quality material including .120in wall 4130 Chromoly tubing with a 1.50in OD and 1in FK Stainless PTFE Uniballs. These arms are the best on the market for aggressive offroad driving in harsh conditions. The front differential is relocated to keep CV angles proper with the new lift height while a 1/4in thick steel skid plate provides protection against offroad obstacles. Rear lift is accomplished with 1 1/2in rear lift block and u-bolts to help level the stance of the vehicles. Performance rear shock absorbers replace the stock units for increased damping. - Increased ground clearance. -Top quality Uniball Upper Control Arms for aggressive offroad use. -1in ID American made FK Uniballs with PTFE for ultimate strength. -Increased fender clearance compared to a Leveling Kit for 33in tall tires. -Suspension can be restored to stock.

Attributes:

  • GTIN: 00674866091474
  • Brand Name: Fabtech

Extended Information:

  • Country of Origin: United States
  • Emissions : Released
  • Life Cycle Status: Available To Order

Packing Information:

  • Quantity of Each: 1
  • Package UOM: EA
  • Dimension: 22.53 x 12 x 15.59 inches
  • Weight: 74.4 lb
