Fabtech 4" 4Link Suspension w/ Coils & D&S Shocks | Ford F250/350 17-21 (K2290DL)

Fabtech 4" 4Link Suspension w/ Coils & D&S Shocks | Ford F250/350 17-21 (K2290DL)

K2290DL

Out of stock

$3,612.00 USD
$4,245.46 USD $3,612.00 USD
ADDITIONAL DISCOUNTS APPLIED AT CHECKOUT Sold out

The Fabtech 4" 4Link Suspension with Coils and D&S Shocks for Ford F250 and F350 models from 2017 to 2021 is a comprehensive suspension upgrade designed to enhance both on-road handling and off-road capability. This system replaces the factory radius arm suspension with a bolt-on 4-link conversion, offering improved articulation and durability. Constructed with high-quality components, it includes coils, D&S shocks, and all necessary hardware for installation. The design minimizes caster change throughout suspension travel, resulting in more stable steering and better ride quality on paved roads, while also providing increased off-road articulation for rugged terrain.

Specifically engineered for 2017-2021 Ford Super Duty trucks, this system is compatible with models equipped with the factory suspension. It serves as a direct replacement and upgrade for the stock front suspension, suitable for off-road enthusiasts and those seeking improved performance and ride quality. The kit is ideal for off-road adventures, heavy-duty towing, or daily driving, offering a bolt-on installation that requires no extensive modifications. Included components ensure a complete upgrade, delivering enhanced stability, articulation, and overall vehicle capability for demanding applications.

Overview

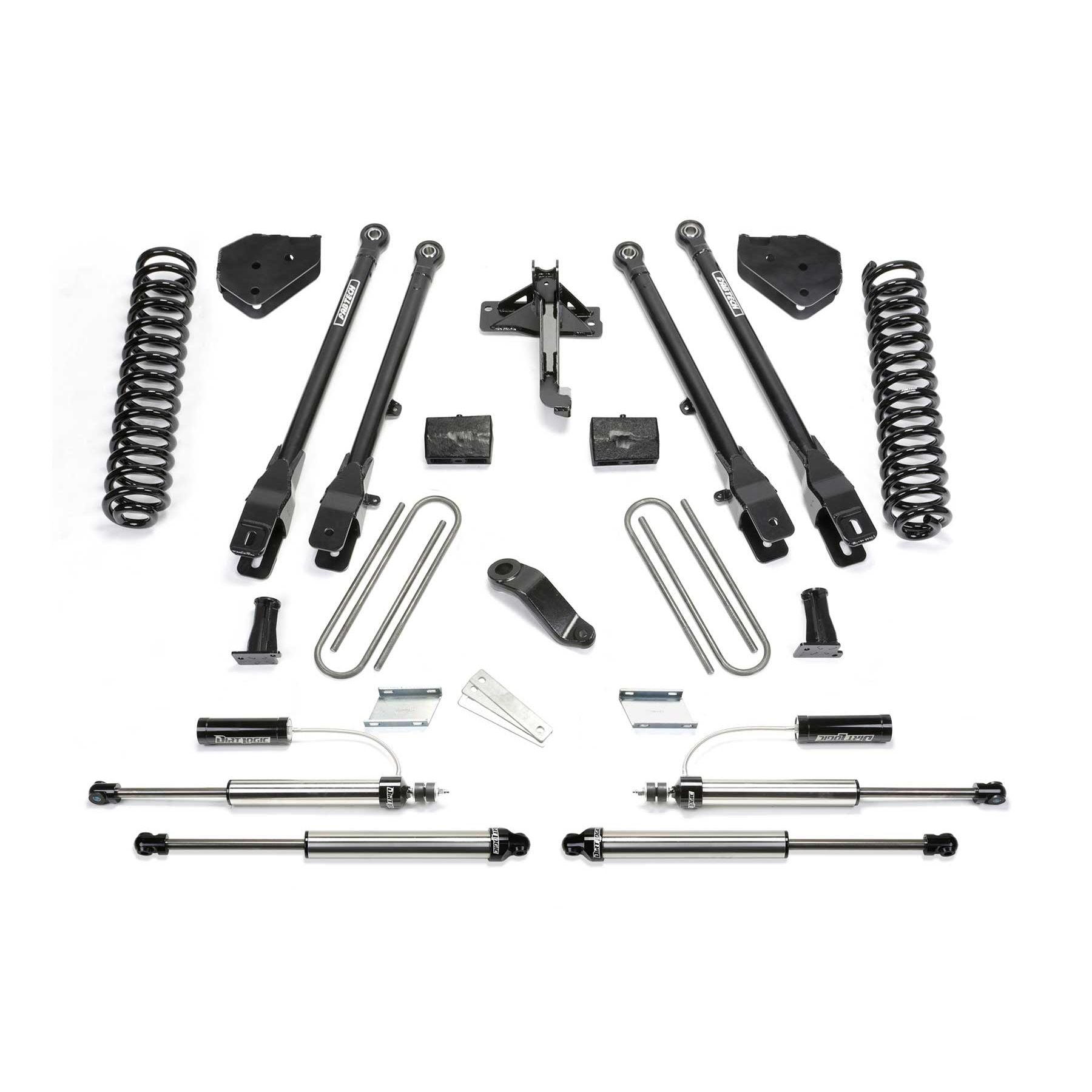

Fabtech's 4 Link Conversion system for the Ford Super Duty has been designed to provide improved on road performance with the ability to tackle the most rugged offroad terrain. This high end system is a bolt on replacement to the factory Radius Arm suspension and comes with everything needed to convert to a 4 Link front suspension. The system will provide less caster change throughout the travel range which benefits on road driving. Offroad the 4 Link system will provide more articulation than a Radius Arm for increased terrain traversing at all speeds. Include with this system is Dirt Logic 2.25 Stainless Steel reservoir shocks in the front and non reservoir shocks in the rear. These Dirt Logic shocks have been ride tuned to the vehicle with the Fabtech Coil Springs and oversized tires for an excellent ride quality both on and offroad. Fabtech's 4 Link System has been proven in over 10 years of service in military applications. High quality components with properly designed suspension geometry is the pinnacle of Super Duty suspension systems. System includes a free 5 year 60,000 mile powertrain warranty.

Attributes:

  • GTIN: 00674866105676
  • Brand Name: Fabtech

Extended Information:

  • Country of Origin: United States
  • Emissions : Released
  • Life Cycle Status: Available To Order

Packing Information:

  • Quantity of Each: 1
  • Package UOM: EA
  • Dimension: 43.5 x 50.04 x 16 inches
  • Weight: 292.6 lb
