Fabtech 4" Basic Suspension System w/ Rear Stealth | Ford F150 2WD (15-20) (K2258M)

Fabtech 4" Basic Suspension System w/ Rear Stealth | Ford F150 2WD (15-20) (K2258M)

K2258M

Out of stock

$1,728.32 USD
$2,031.41 USD $1,728.32 USD
ADDITIONAL DISCOUNTS APPLIED AT CHECKOUT Sold out

The Fabtech 4" Basic Suspension System with Rear Stealth is a comprehensive lift kit designed for the Ford F150 2WD models from 2015 to 2020. It features Fabtech's proven IFS technology, incorporating extended ductile iron steering knuckles to ensure proper electronic stability control functionality. The system includes heavy-duty 1/4-inch thick steel lower control arm crossmembers that enhance ground clearance, making it suitable for off-road adventures. The rear lift is achieved with a 2.25-inch lift block and extended U-bolts, providing a balanced and durable suspension upgrade. The kit also includes front coilover spacers that utilize the factory coilover shocks, maintaining a stock-like ride quality while increasing height and capability. Overall, this suspension system offers improved off-road performance, ground clearance, and durability for rugged terrain.

Designed specifically for 2015-2020 Ford F150 2WD models, this lift kit is a direct bolt-on upgrade that enhances both appearance and off-road capability. It is suitable for use on trails, off-road excursions, and daily driving, providing increased ground clearance and improved suspension travel. The kit includes all necessary components for installation, such as coilover spacers, lift blocks, and extended U-bolts, ensuring a straightforward upgrade process. Compatibility with electronic stability control is maintained thanks to the extended ductile iron steering knuckles. This system is ideal for enthusiasts seeking a reliable, performance-oriented lift solution that preserves factory ride characteristics while offering increased off-road capability.

Overview

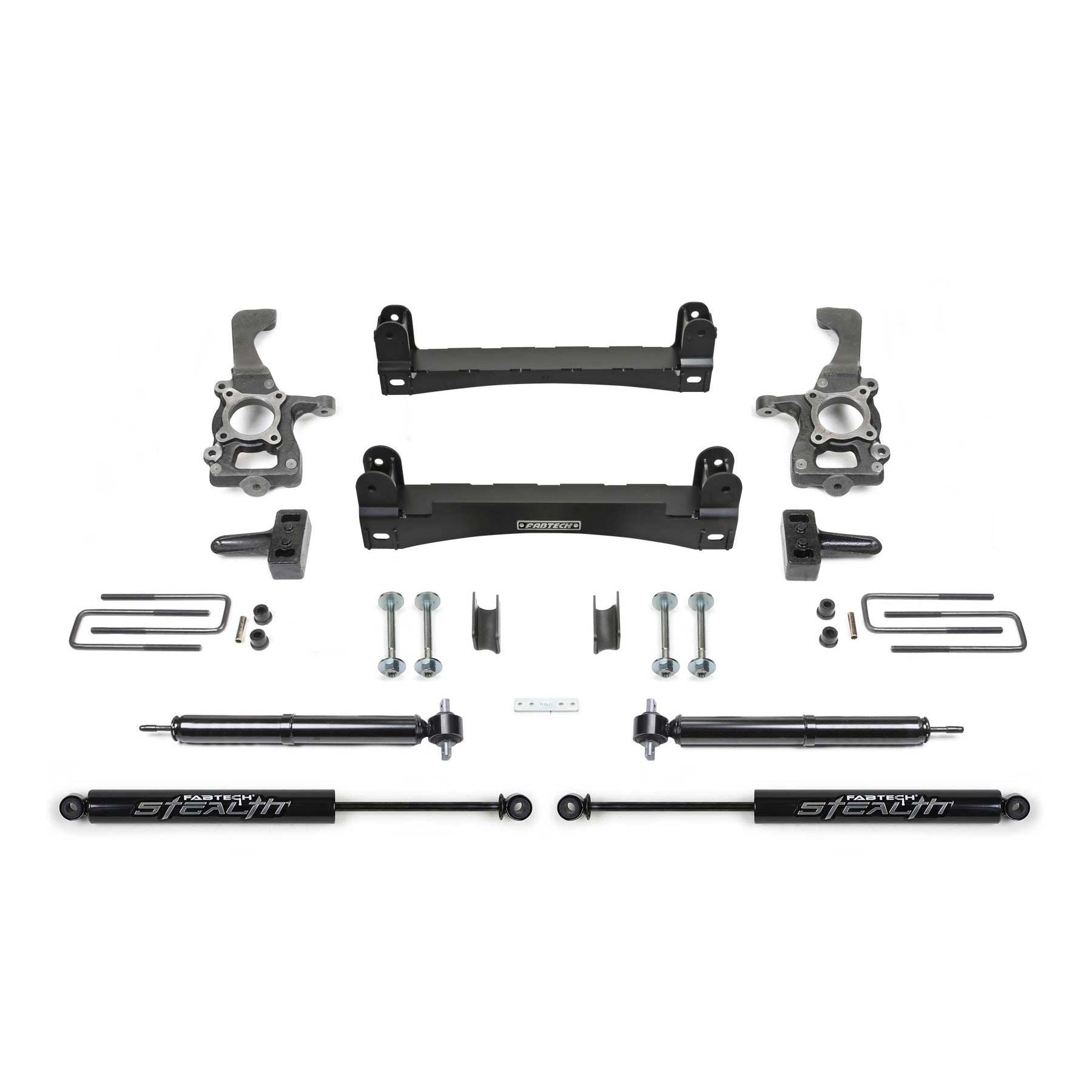

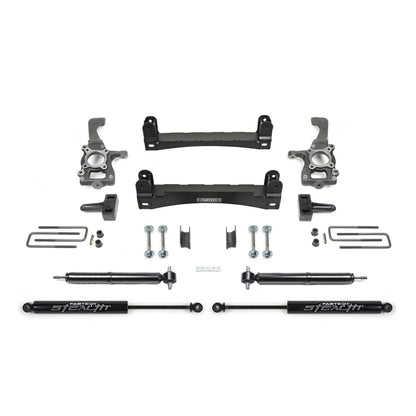

This system feature Fabtech's proven IFS technology with extended length ductile iron steering knuckles for proper Ford electronic stability control functionality. Heavy duty 1/4in thick steel lower control arm crossmembers provide superior ground clearance for adventurous offroad trails. Rear lift is accomplished with a 2.25in lift block and extended length u bolts. The Basic System includes front coilover spacers that utilize the factory Coilover shocks for a stock like ride characteristic. Rear Stealth monotube shocks are included. This high quality system does not require drilling or cutting for installation and comes Fabtech's 5/60 Powertrain warranty. 1/4in thick steel lower control arm crossmembers are arched for maximum ground clearance. Four adjustable alignment cams provide a wide range of adjustment. The fully welded box design of these crossmembers provides additional strength to the front suspension. Extended length ductile iron steering knuckles retain near stock track width keeping the tires under the fenders. These steering knuckles are designed to work in conjunction with the Ford ESC for proper functionality at all speeds. The Brake Line Brackets reposition the factory Ford brake lines down on the frame for the new travel range without having to open the brake system. Keeps factory fluid system intact. 1/4in thick steel drop brackets reposition the front sway bar for the increased ride height. This allows the sway bar link ends to fully cycle without binding throughout the extended travel range. 2.25in Tall rear lift blocks replace the factory blocks without changing the ride quality or load carrying capacity. American made U Bolts that retain the entire rear differential to the vehicle. A critical part that demands the best quality for your vehicle.

Attributes:

  • GTIN: 00674866105546
  • Brand Name: Fabtech

Extended Information:

  • Country of Origin: United States
  • Emissions : Released
  • Life Cycle Status: Available To Order

Packing Information:

  • Quantity of Each: 1
  • Package UOM: EA
  • Dimension: 34.5 x 30.94 x 17.6 inches
  • Weight: 225.2 lb
