Fabtech 4in Budget System w/ DLSS Shocks | Ford F250/F350 4WD (17-21) (K2213DL)

Fabtech 4in Budget System w/ DLSS Shocks | Ford F250/F350 4WD (17-21) (K2213DL)

K2213DL

Out of stock

$1,836.13 USD
$2,158.15 USD $1,836.13 USD
ADDITIONAL DISCOUNTS APPLIED AT CHECKOUT Sold out

The Fabtech 4in Budget System with DLSS Shocks is an entry-level suspension upgrade designed for 2017-2021 Ford F250 and F350 4WD trucks. This system provides a 4-inch lift using factory front coil springs combined with steel upper spacers, enhancing ground clearance and off-road capability. The inclusion of radius arm drop brackets maintains proper caster alignment by retaining factory arms, ensuring stability and handling. Additionally, a trac bar relocation bracket is included to center the axle under the vehicle, working seamlessly with the factory Pitman arm. Constructed with durable steel components, this suspension system offers a cost-effective solution for lifting heavy-duty trucks while maintaining ride quality and durability.

Designed specifically for 2017-2021 Ford F250 and F350 4WD models, this system is a direct bolt-on upgrade that does not require extensive modifications. It is suitable for off-road enthusiasts, daily drivers, and those seeking improved ground clearance and load capacity. The kit includes the necessary coil spring spacers, radius arm drop brackets, and trac bar relocation bracket, providing a comprehensive lift solution. Compatible with stock or aftermarket tires, this system enhances vehicle stance and performance without compromising factory ride characteristics, making it ideal for both on-road and off-road applications.

Overview

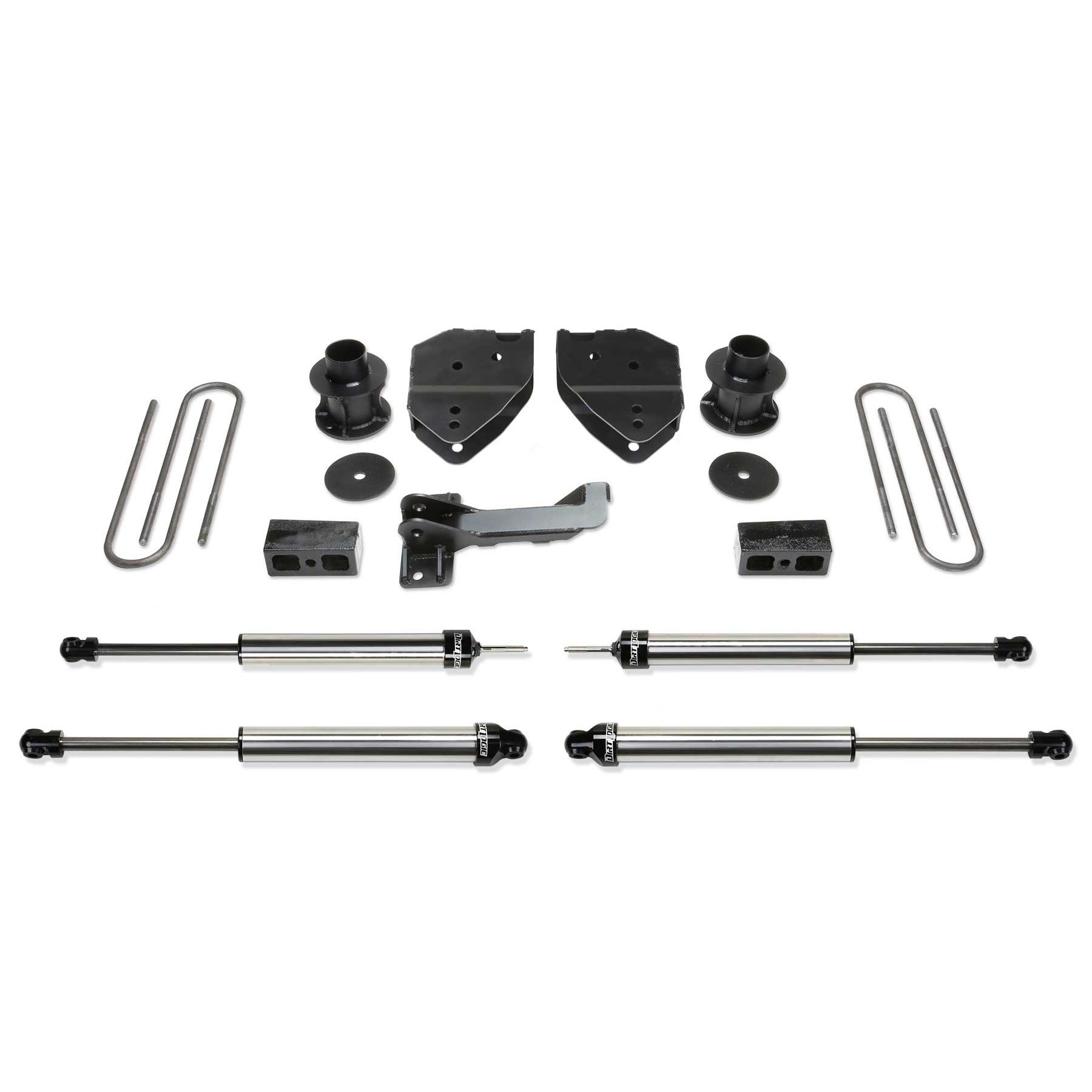

To enhance our extensive line of Super Duty suspension systems we have developed an entry level 4'' Budget System. The 4'' Budget System utilizes the factory front coil springs with a steel upper spacer providing 4'' of lift. Radius Arm drop brackets retain the factory arms with correct caster setting for the increase ride height. System includes a Trac Bar relocation bracket that has been designed to center the axle under the vehicle and still works properly with the factory Pitman Arm. This eliminates the need to replace the Pitman Arm resulting in a lower cost and faster installation time. Rear lift is accomplished with lift blocks and extended length u-bolts. This kit includes front and rear Dirt Logic shocks. System allows installation of 35'' tall tires with required inner fenderwell trimming for adequate tire clearance for street driving and light offroad use.

Attributes:

  • GTIN: 00674866102910
  • Brand Name: Fabtech

Extended Information:

  • Country of Origin: United States
  • Emissions : Released
  • Life Cycle Status: Available To Order

Packing Information:

  • Quantity of Each: 1
  • Package UOM: EA
  • Dimension: 39 x 30 x 15.59 inches
  • Weight: 149.4 lb
