Fabtech 4in Budget Suspension System w/ DLSS Shocks | Ford F250/350/450 4WD 8 Lug (08-16) (K2160DL)

Fabtech 4in Budget Suspension System w/ DLSS Shocks | Ford F250/350/450 4WD 8 Lug (08-16) (K2160DL)

K2160DL

Out of stock

$1,836.13 USD
$2,158.15 USD $1,836.13 USD
ADDITIONAL DISCOUNTS APPLIED AT CHECKOUT Sold out

The Fabtech 4in Budget Suspension System with DLSS Shocks is an entry-level lift kit designed for 2008-2016 Ford F250, F350, and F450 4WD trucks with 8-lug wheels. This system provides a 4-inch lift to improve ground clearance and off-road capability while maintaining factory ride quality. It features factory front coil springs combined with steel upper spacers to achieve the desired lift height. The inclusion of radius arm drop brackets ensures proper caster alignment and maintains factory steering geometry, while the Trac Bar relocation bracket centers the axle for enhanced stability and handling. Constructed with durable steel components and designed for straightforward installation, this suspension system offers a reliable upgrade for off-road enthusiasts and daily drivers alike.

Designed specifically for 2008-2016 Ford Super Duty models with 4WD and 8-lug configurations, this system is a direct bolt-on upgrade that preserves factory components where possible. It is suitable for use on trucks used for off-road adventures, towing, or general lifting needs, providing increased ground clearance and improved suspension performance. The kit includes all necessary brackets and hardware for installation, ensuring proper fitment and alignment. Compatible with factory Pitman arms and designed to work seamlessly with the existing suspension setup, this system enhances vehicle capability without compromising ride quality or safety.

Overview

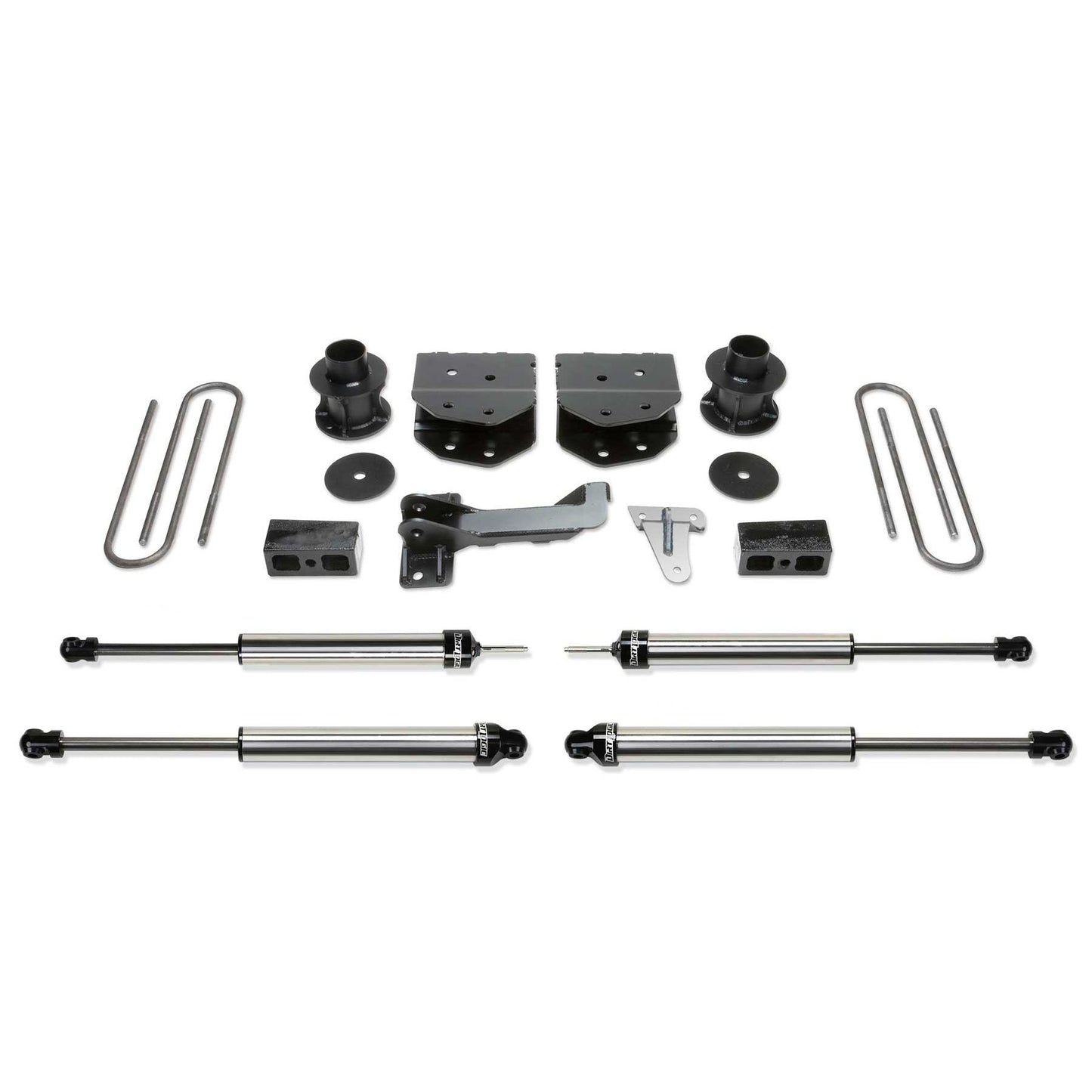

To enhance our extensive line of Super Duty suspension systems we have developed an entry level 4'' Budget System. The 4'' Budget System utilizes the factory front coil springs with a steel upper spacer providing 4'' of lift. Radius Arm drop brackets retain the factory arms with correct caster setting for the increase ride height. System includes a Trac Bar relocation bracket that has been designed to center the axle under the vehicle and still works properly with the factory Pitman Arm. This eliminates the need to replace the Pitman Arm resulting in a lower cost and faster installation time. Rear lift is accomplished with lift blocks and extended length u-bolts. System allows installation of 35'' tall tires with required inner fenderwell trimming for adequate tire clearance for street driving and light offroad use. Includes front and rear 2.25 Dirt Logic Stainless Steel shocks.

Attributes:

  • GTIN: 00674866097247
  • Brand Name: Fabtech

Extended Information:

  • Country of Origin: United States
  • Emissions : Released
  • Life Cycle Status: Available To Order

Packing Information:

  • Quantity of Each: 1
  • Package UOM: EA
  • Dimension: 39 x 30 x 15.59 inches
  • Weight: 153.2 lb
