Fabtech 4" Performance System w/ 2.5" & 2.25" Pipes | Ford F150 2WD (15-20) (K2258DL)

Fabtech 4" Performance System w/ 2.5" & 2.25" Pipes | Ford F150 2WD (15-20) (K2258DL)

K2258DL

Out of stock

$3,265.01 USD
$3,837.61 USD $3,265.01 USD
ADDITIONAL DISCOUNTS APPLIED AT CHECKOUT Sold out

The Fabtech 4" Performance System with 2.5" and 2.25" pipes is a comprehensive suspension upgrade designed for the Ford F150 2WD models from 2015 to 2020. This system incorporates Fabtech's proven independent front suspension (IFS) technology, featuring extended length ductile iron steering knuckles that ensure proper functionality of the vehicle's electronic stability control system. Heavy-duty 1/4-inch thick steel lower control arm crossmembers enhance ground clearance, making it suitable for off-road adventures and rugged terrain. The package includes stainless steel Dirt Logic 2.5 coilover shocks, which provide exceptional damping performance, stability, and durability for both on-road and off-road driving conditions. The rear lift is achieved with a 2.25-inch lift block and extended U-bolts, ensuring a balanced and stable ride height.

This lift kit is specifically designed for 2015-2020 Ford F150 2WD trucks, offering a bolt-on installation that maintains factory alignment and handling characteristics. It is ideal for off-road enthusiasts, daily drivers seeking increased ground clearance, or those looking to accommodate larger tires. The system provides a significant lift while preserving ride quality and vehicle control. Compatibility with electronic stability control and other factory features is maintained through the use of specialized components like ductile iron steering knuckles. The kit includes all necessary components for a straightforward installation, making it a reliable upgrade for enhancing off-road capability and overall vehicle performance.

Overview

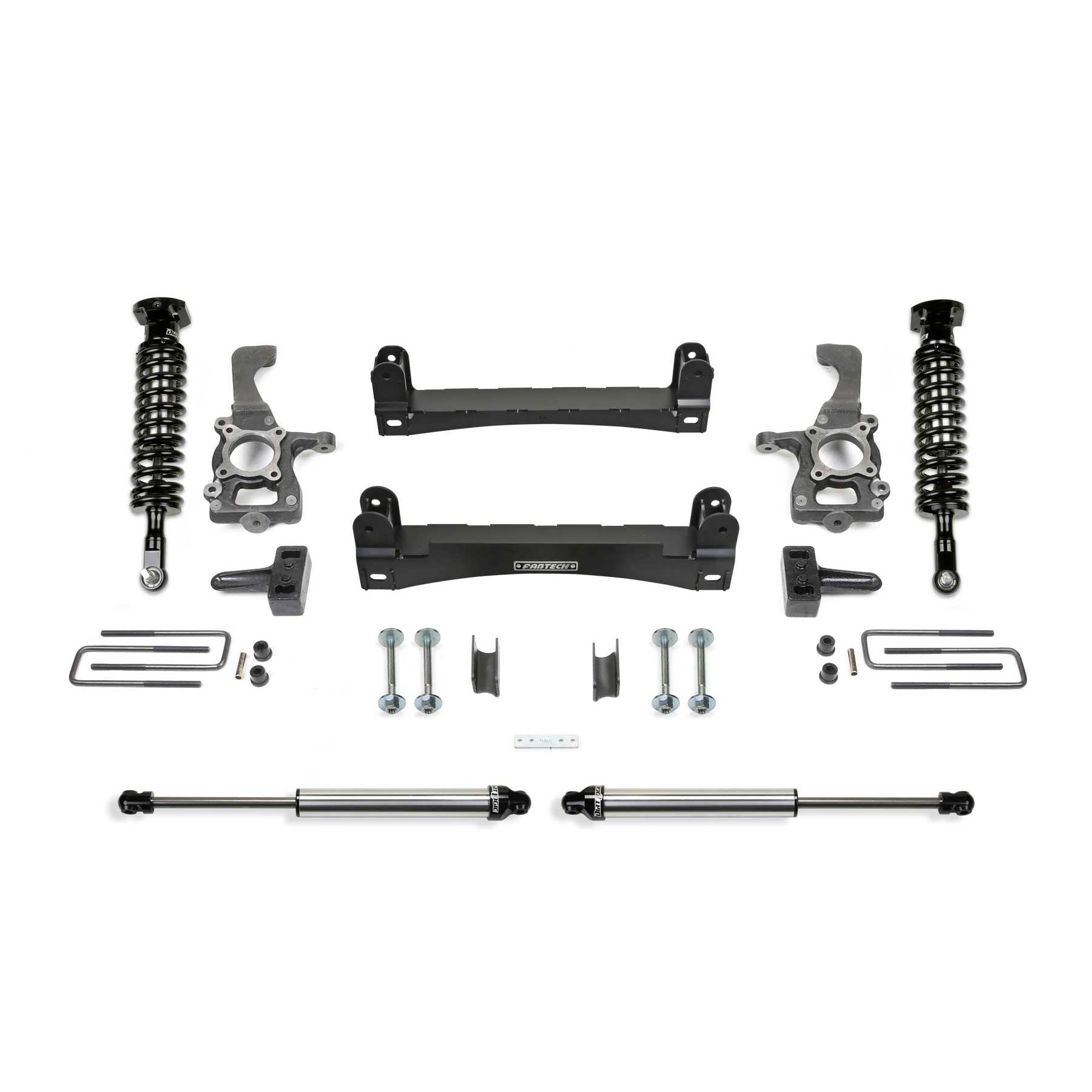

This system feature Fabtech's proven IFS technology with extended length ductile iron steering knuckles for proper Ford electronic stability control functionality. Heavy duty 1/4in thick steel lower control arm crossmembers provide superior ground clearance for adventurous offroad trails. Rear lift is accomplished with a 2.25in lift block and extended length u bolts. The Performance system includes Fabtech's legendary stainless steel Dirt Logic 2.5 Coilover shocks for outstanding damping capacity with a great highway ride. Rear shocks include the Dirt Logic 2.25. This high quality system does not require drilling or cutting for installation and comes Fabtech's 5/60 Powertrain warranty. 1/4in thick steel lower control arm crossmembers are arched for maximum ground clearance. Four adjustable alignment cams provide a wide range of adjustment. The fully welded box design of these crossmembers provides additional strength to the front suspension. Extended length ductile iron steering knuckles retain near stock track width keeping the tires under the fenders. These steering knuckles are designed to work in conjunction with the Ford ESC for proper functionality at all speeds. The Brake Line Brackets reposition the factory Ford brake lines down on the frame for the new travel range without having to open the brake system. Keeps factory fluid system intact. 1/4in thick steel drop brackets reposition the front sway bar for the increased ride height. This allows the sway bar link ends to fully cycle without binding throughout the extended travel range. 2.25in Tall rear lift blocks replace the factory blocks without changing the ride quality or load carrying capacity. American made U Bolts that retain the entire rear differential to the vehicle. A critical part that demands the best quality for your vehicle.

Attributes:

  • GTIN: 00674866105553
  • Brand Name: Fabtech

Extended Information:

  • Country of Origin: United States
  • Emissions : Released
  • Life Cycle Status: Available To Order

Packing Information:

  • Quantity of Each: 1
  • Package UOM: EA
  • Dimension: 39 x 42.43 x 17.6 inches
  • Weight: 266.8 lb
