• Fabtech 4" Performance System w/ Drilled & Slotted 2.5" & 2.25" | GM K1500 Pickup (19-22) w/ Trail Boss/AT4 Package Diesel (K1173DL)
1 1

Fabtech 4" System w/ Drilled & Slotted 2.5" & 2.25" | GM K1500 (19-22) Trail Boss/AT4 (K1173DL)

Fabtech 4" System w/ Drilled & Slotted 2.5" & 2.25" | GM K1500 (19-22) Trail Boss/AT4 (K1173DL)

K1173DL

Out of stock

$3,322.58 USD
$3,905.27 USD $3,322.58 USD
ADDITIONAL DISCOUNTS APPLIED AT CHECKOUT Sold out

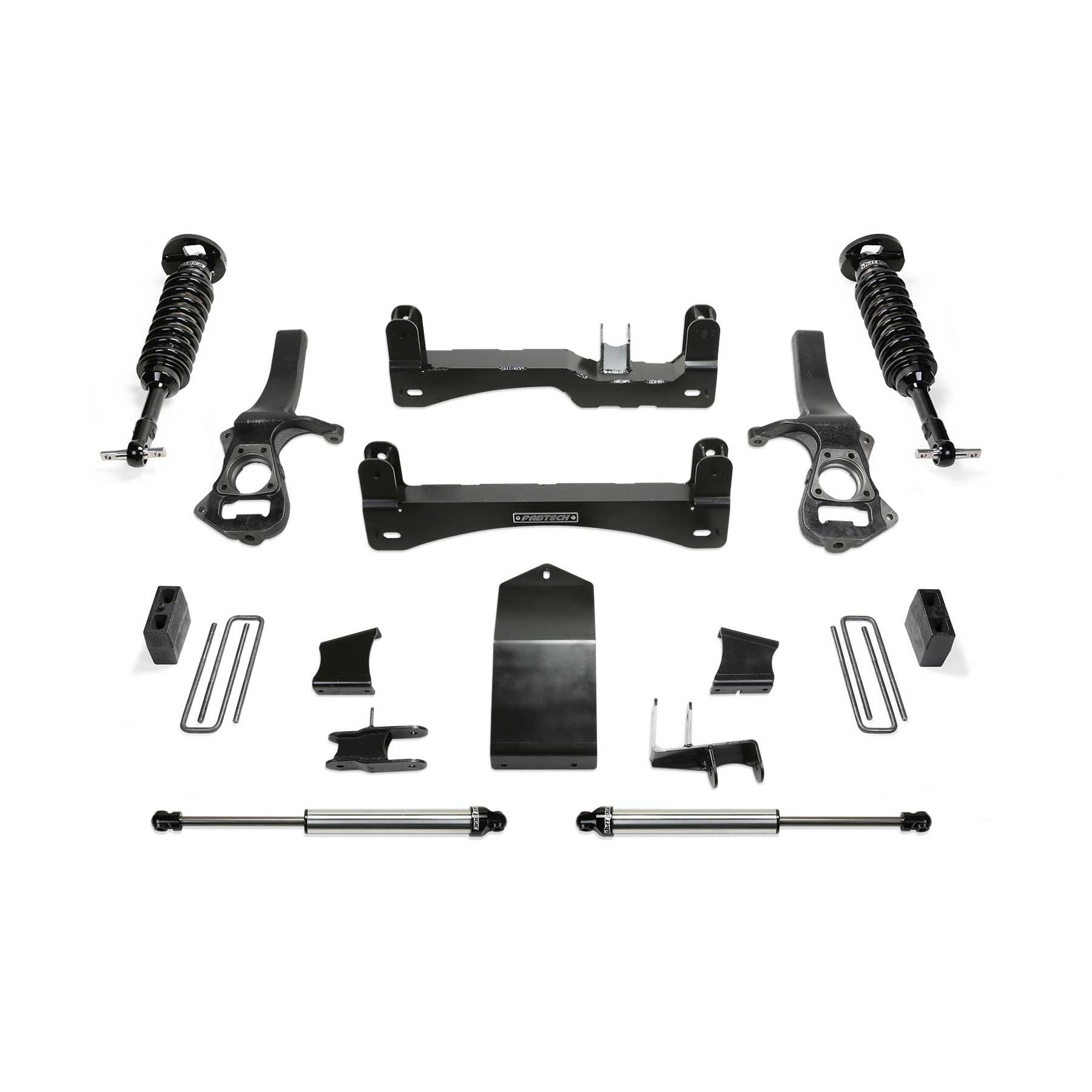

The Fabtech 4" System with drilled and slotted rotors for the GM K1500 (19-22) Trail Boss and AT4 models is a comprehensive suspension upgrade designed to increase ground clearance and accommodate larger tires. This system adds an additional 4 inches of lift on top of the factory 2-inch lift, resulting in a total lift height that allows for 35-inch tall tires. Constructed with durable materials and featuring drilled and slotted rotors, the kit enhances both off-road capability and braking performance. The suspension components are engineered to maintain a near stock track width, ensuring a clean appearance and proper tire fitment within the fenders. This setup provides improved off-road clearance, stability, and a commanding stance for trucks used in demanding conditions.

Designed specifically for 2019-2022 Chevrolet Trail Boss and GMC AT4 models, this lift kit is a direct bolt-on replacement that preserves factory ride quality while offering increased durability. It is suitable for off-road enthusiasts, daily drivers, and those seeking a more aggressive look without sacrificing on-road comfort. The kit includes all necessary components for installation, ensuring a straightforward upgrade process. Compatibility is limited to the specified model years and configurations, making it an ideal choice for owners looking to enhance their truck’s performance and appearance with minimal modifications.

Overview

The Chevy Trail Boss and GMC AT4 both have a factory 2in lift compared to other GM 1500 trucks of the same year model. Fabtech's suspension system for these two trucks provide a 4in lift height on top of the factory 2in lift for clearance of 35in tall tires. Once a Trail Boss or AT4 is lifted with a Fabtech 4in system, the truck will sit at the same height as a 1500 with a 6in suspension and 35in tires. The near stock track width keeps the tires under the fenders for a clean appearance. Fabtech's proprietary steering knuckle geometry provides excellent lock to lock turning radius to maneuver in tight spots. Heavy duty 1/4in thick steel crossmembers feature OE style alignment cam pins that utilize the factory cams for easy adjustment. Triple front diff mounts reposition the differential for vibration free operation at high speed. The stainless steel Dirt Logic 2.5 Coilovers replace the Trail Boss or AT4 coilover with an outstanding ride quality both on and offroad. They are designed for aggressive offroad use yet have a supple on road feel. Rear Dirt Logic 2.25 shocks aid in damping the vehicle for a balanced ride. Rear lift is accomplished by removing the factory 2in block and replacing it with a 5in block and u-bolt system. Fabtech has addressed all aspects of the Trail Boss suspension for full suspension travel with lock to lock steering without over cycling. Comes with a free 5 year 60,000 mile Powertrain Warranty. CROSSMEMBERS: 1/4in thick steel lower control arm Crossmembers are arched for maximum ground clearance. The welded box design of these Crossmembers provides additional strength to the front suspension. Retains factory alignment cams for easy adjustment. STEERING KNUCKLES: Fabtech's extended length ductile iron Steering Knuckles provide zero bump steer throughout the suspension travel. This provides an enhanced driver experience compared to stock. Near stock track width keeps the tires under the fenders for a clean appearance. TIE RODS: Oversized tie ro

Attributes:

  • GTIN: 00674866110618
  • Brand Name: Fabtech

Extended Information:

  • Country of Origin: United States
  • Emissions : Released
  • Life Cycle Status: Available To Order

Packing Information:

  • Quantity of Each: 1
  • Package UOM: EA
  • Dimension: 45.5 x 44.33 x 15.13 inches
  • Weight: 289.4 lb
