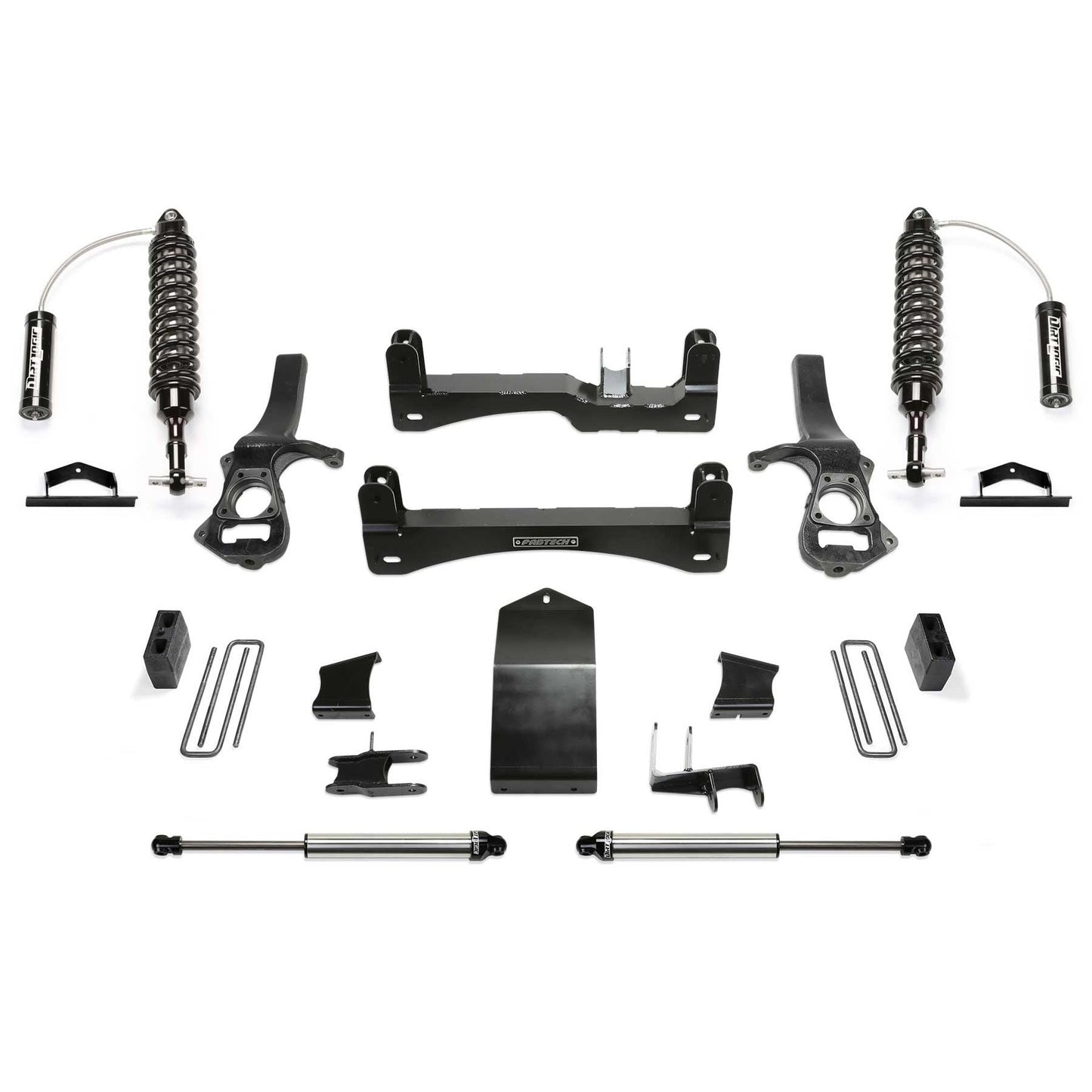

• Fabtech 4" Performance System w/ 2.5" Downlink Reservoir & 2.25" | GM K1500 Pickup (19-22) w/ Trail Boss/AT4 Package Diesel (K1174DL)
1 1

Fabtech 4in Performance System w/ 2.5in Downlink Reservoir & 2.25in | GM K1500 (K1174DL)

Fabtech 4in Performance System w/ 2.5in Downlink Reservoir & 2.25in | GM K1500 (K1174DL)

K1174DL

Out of stock

$3,702.59 USD
$4,351.92 USD $3,702.59 USD
ADDITIONAL DISCOUNTS APPLIED AT CHECKOUT Sold out

The Fabtech 4in Performance System with 2.5in Downlink Reservoir and 2.25in components is a comprehensive suspension upgrade designed specifically for GM K1500 trucks, including the Chevy Trail Boss and GMC AT4 models. This system provides a total lift height of 4 inches on top of the factory 2-inch lift, enabling the installation of 35-inch tall tires for enhanced off-road capability and aggressive appearance. Constructed with durable materials, the kit maintains near stock track width, ensuring the tires stay within the fenders for a clean, OEM-like look. The system improves ground clearance, ride quality, and off-road performance, making it an ideal choice for enthusiasts seeking a balanced combination of durability and performance.

This suspension system is engineered for 2019–2023 GM K1500 trucks, specifically tailored for Trail Boss and AT4 trims with factory 2-inch lifts. It serves as a direct bolt-on upgrade, preserving factory ride characteristics while significantly increasing off-road capability. The kit includes all necessary components for installation, such as shocks, springs, and linkages, designed to fit trucks with stock or slightly modified configurations. Suitable for off-road adventures, daily driving, and performance upgrades, this system enhances vehicle height, stability, and tire clearance without compromising on-road comfort or handling.

Overview

The Chevy Trail Boss and GMC AT4 both have a factory 2in lift compared to other GM 1500 trucks of the same year model. Fabtech's suspension system for these two trucks provide a 4in lift height on top of the factory 2in lift for clearance of 35in tall tires. Once a Trail Boss or AT4 is lifted with a Fabtech 4in system, the truck will sit at the same height as a 1500 with a 6in suspension and 35in tires. The near stock track width keeps the tires under the fenders for a clean appearance. Fabtech's proprietary steering knuckle geometry provides excellent lock to lock turning radius to maneuver in tight spots. Heavy duty 1/4in thick steel crossmembers feature OE style alignment cam pins that utilize the factory cams for easy adjustment. Triple front diff mounts reposition the differential for vibration free operation at high speed. The stainless steel Dirt Logic 2.5 Coilovers replace the Trail Boss or AT4 coilover with an outstanding ride quality both on and offroad. They are designed for aggressive offroad use yet have a supple on road feel. Rear Dirt Logic 2.25 shocks aid in damping the vehicle for a balanced ride. Rear lift is accomplished by removing the factory 2in block and replacing it with a 5in block and u-bolt system. Fabtech has addressed all aspects of the Trail Boss suspension for full suspension travel with lock to lock steering without over cycling. Comes with a free 5 year 60,000 mile Powertrain Warranty. CROSSMEMBERS: 1/4in thick steel lower control arm Crossmembers are arched for maximum ground clearance. The welded box design of these Crossmembers provides additional strength to the front suspension. Retains factory alignment cams for easy adjustment. STEERING KNUCKLES: Fabtech's extended length ductile iron Steering Knuckles provide zero bump steer throughout the suspension travel. This provides an enhanced driver experience compared to stock. Near stock track width keeps the tires under the fenders for a clean appearance. TIE RODS: Oversized tie ro

Attributes:

  • GTIN: 00674866110625
  • Brand Name: Fabtech

Extended Information:

  • Country of Origin: United States
  • Emissions : Released
  • Life Cycle Status: Available To Order

Packing Information:

  • Quantity of Each: 1
  • Package UOM: EA
  • Dimension: 45.5 x 44.33 x 15.13 inches
  • Weight: 295.4 lb
