• Fabtech 4" Radius Arm System w/ DLSS 4.0 Coilover & Rear DLSS | Ford F350 4WD (11-16) (K2206DL)
  • Fabtech 4" Radius Arm System w/ DLSS 4.0 Coilover & Rear DLSS | Ford F350 4WD (11-16) (K2206DL)
1 2

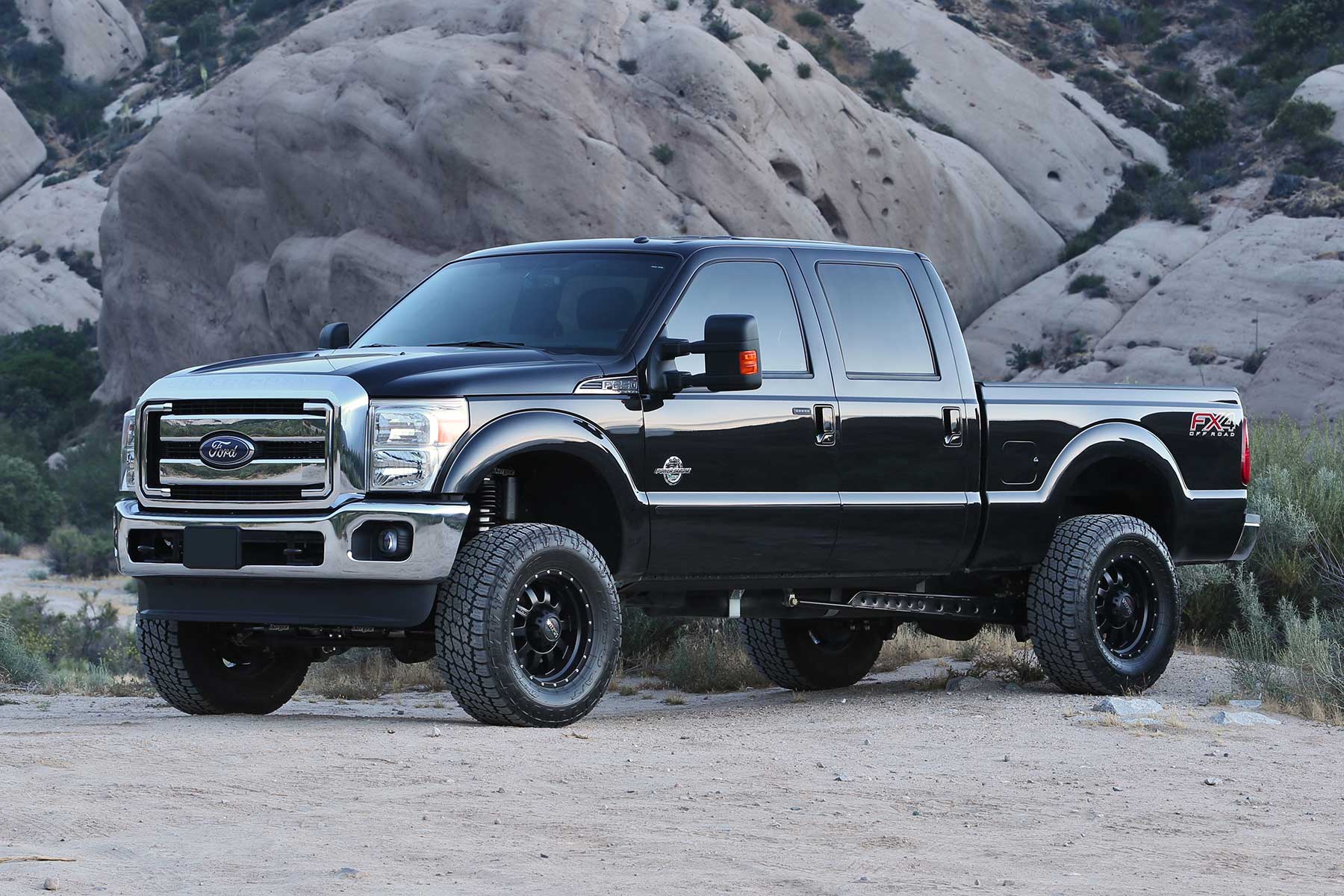

Fabtech 4" Radius Arm System w/ DLSS 4.0 Coilover & Rear DLSS | Ford F350 4WD (11-16) (K2206DL)

Fabtech 4" Radius Arm System w/ DLSS 4.0 Coilover & Rear DLSS | Ford F350 4WD (11-16) (K2206DL)

K2206DL

Out of stock

$5,605.25 USD
$6,588.27 USD $5,605.25 USD
ADDITIONAL DISCOUNTS APPLIED AT CHECKOUT Sold out

The Fabtech 4" Radius Arm System with DLSS 4.0 Coilover and Rear DLSS is a comprehensive suspension upgrade designed for 2011–2016 Ford F350 4WD trucks. This system features a 4-inch lift height, utilizing the Dirt Logic 4.0 Coilover for enhanced off-road performance and highway comfort. The coilover incorporates a dual-rate coil spring and a stainless steel body, providing durability, smooth ride quality, and superior off-road capabilities. The system replaces the upper coil spring bucket with a tubular and plate-style mount that reinforces the frame, ensuring rugged reliability in demanding conditions. Built for serious off-road use, this kit offers improved ground clearance and handling while maintaining ride quality on paved roads.

Designed specifically for 2011–2016 Ford F350 4WD models, this coilover conversion system is a direct bolt-on upgrade that replaces factory components for enhanced performance. It is suitable for off-road enthusiasts, heavy-duty work, or those seeking a higher stance with improved articulation. The kit includes the necessary coilovers, radius arm components, and mounting hardware for a straightforward installation. Compatible with trucks equipped with the factory coil spring setup, this system provides a balanced combination of off-road capability and on-road comfort, making it ideal for both daily driving and rugged off-road adventures.

Overview

Fabtech's Coilover Conversion system is now available in a 4in lift height for use with Radius Arm and 4 Link Systems. This system utilizes the massive Dirt Logic 4.0 Coilover for a great highway ride with superior offroad capabilities. The Coilover Conversion system replaces the upper coil spring bucket with a tubular and plate style mount that reinforces the frame for rugged offroad use. The Dirt Logic 4.0 Coilover features a dual rate coil spring for a smooth ride. The stainless steel body and black NitroSteel piston rod provide maximum corrosion resistance. The finned billet aluminum reservoir helps keep the shock cool during aggressive offroad driving. This high end Dirt Logic Coilover Conversion system is the ultimate suspension upgrade for Fabtech's Radius Arm and 4 Link Suspensions. Includes rear Dirt Logic Shocks. Estimated installation time- 7-8 hours. 6 holes to drill. No welding required. Front driveshaft modification may be required to clear exhaust on gas motor.

Attributes:

  • GTIN: 00674866102262
  • Brand Name: Fabtech

Extended Information:

  • Country of Origin: United States
  • Emissions : Released
  • Life Cycle Status: Available To Order

Packing Information:

  • Quantity of Each: 1
  • Package UOM: EA
  • Dimension: 45.5 x 66.18 x 30.2 inches
  • Weight: 425.8 lb
