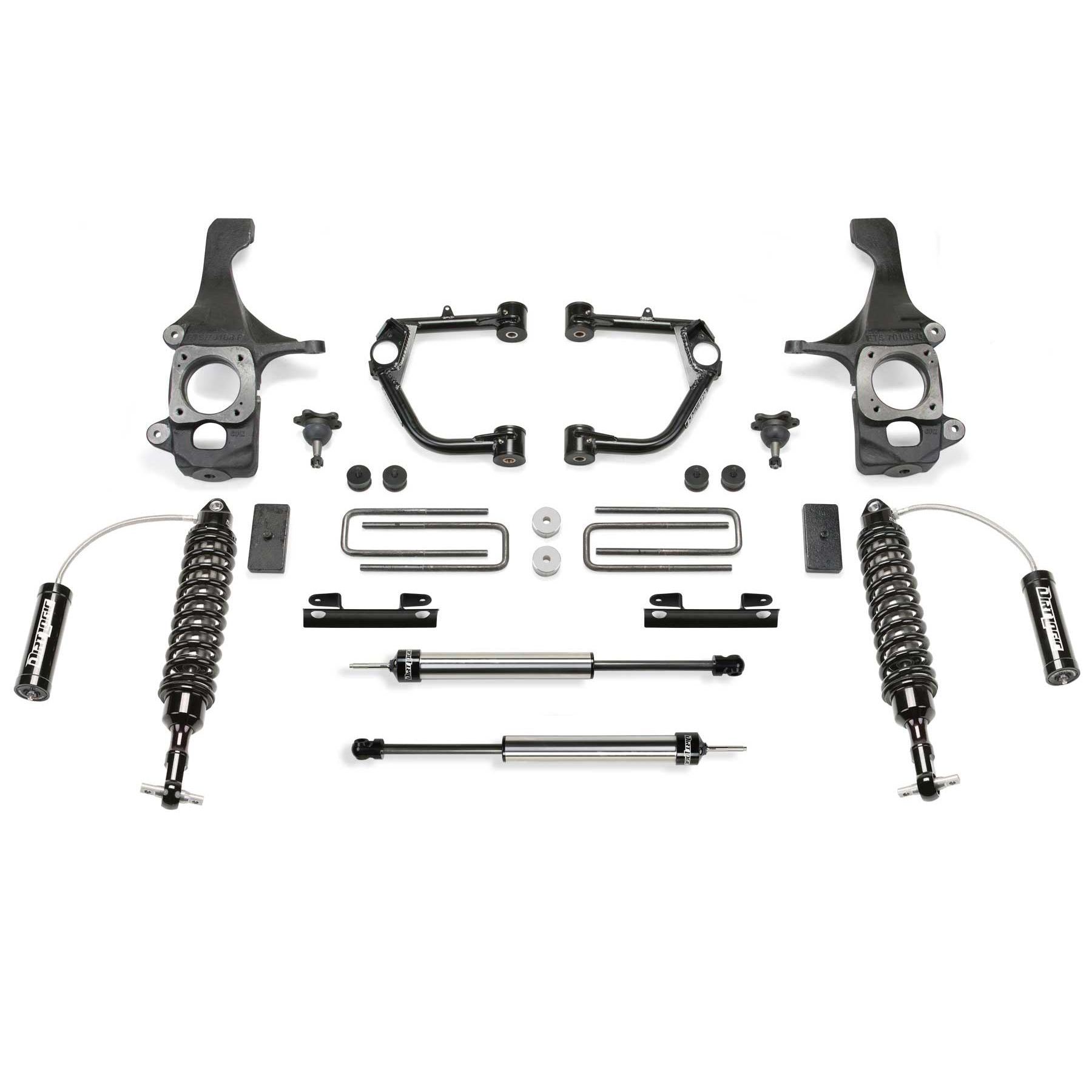

Fabtech 4" Front Control Arm Kit w/ Ball Joints & DLSS 2.5 Coilovers | Tundra 07-15 (K7044DL)

Fabtech 4" Front Control Arm Kit w/ Ball Joints & DLSS 2.5 Coilovers | Tundra 07-15 (K7044DL)

K7044DL

Out of stock

$3,346.15 USD
$3,932.97 USD $3,346.15 USD
ADDITIONAL DISCOUNTS APPLIED AT CHECKOUT Sold out

The Fabtech 4" Front Control Arm Kit with Ball Joints and DLSS 2.5 Coilovers is a comprehensive suspension upgrade designed for the Toyota Tundra from 2007 to 2015. This system provides a 4-inch lift, leveraging the truck's large wheelwell openings to accommodate 35-inch tires with minimal lift height. Constructed with a new suspension design that reduces part count, it enhances performance and durability. The kit features replacement upper control arms made from .120-inch wall DOM tubing and heavy-duty extended-range ball joints, offering increased strength and reliability. The inclusion of heavy-duty extended-length steering knuckles further improves handling and stability, making it suitable for off-road and aggressive driving conditions.

This control arm kit is specifically engineered for 2007-2015 Toyota Tundra models, providing a direct bolt-on upgrade that maintains proper alignment and suspension geometry. It is ideal for off-road enthusiasts, trail riders, and those seeking improved ground clearance and tire fitment. The system is designed for easy installation with compatible components that enhance the vehicle's capability for off-road adventures or aggressive street driving. The kit includes all necessary control arms, ball joints, and coilover components, ensuring a complete and reliable suspension upgrade for demanding applications.

Overview

This 4'' System capitalizes on Toyota Tundra's large Wheelwell opening to allow use of 35'' tall tires with minimum lift height. The design of this 4'' System is a new style of suspension that delivers improved performance with fewer parts, and comes with an affordable price. The system includes replacement upper control with a .120'' wall DOM arm with heavy duty extended range ball joints that provide additional strength to the front suspension. Heavy duty extended length steering knuckles are included to provide proper functionality of the factory ESC (Electronic Stability Control) with 35'' tall tires. The knuckles retain the stock track width keeping the tires under the front fenders. The front differential is relocated to keep CV angles proper during the full range of travel. Front bump stop extensions and brake hose relocation brackets complete the front suspension. Rear lift comes from a 1'' lift block and u-bolt system to level the stance of the vehicle. The 4'' System is available with Dirt Logic 2.50 front Coilovers and rear Dirt Logic 2.25 shocks for increased travel and aggressive offroad driving.

Attributes:

  • GTIN: 00674866099814
  • Brand Name: Fabtech

Extended Information:

  • Country of Origin: United States
  • Emissions : Released
  • Life Cycle Status: Available To Order

Packing Information:

  • Quantity of Each: 1
  • Package UOM: EA
  • Dimension: 35.75 x 30.25 x 22 inches
  • Weight: 201.4 lb
