• Fabtech 4" Upper Control Arm Kit w/ Uniballs & DLSS 2.5 C/O Resi & Rear DLSS | Toyota Tundra 2WD/4WD (16-21) (K7053DL)
1 1

Fabtech 4" Upper Control Arm Kit w/ Uniballs & DLSS 2.5 C/O | Toyota Tundra 16-21 (K7053DL)

Fabtech 4" Upper Control Arm Kit w/ Uniballs & DLSS 2.5 C/O | Toyota Tundra 16-21 (K7053DL)

K7053DL

Out of stock

$3,534.25 USD
$4,154.07 USD $3,534.25 USD
ADDITIONAL DISCOUNTS APPLIED AT CHECKOUT Sold out

The Fabtech 4-inch Upper Control Arm Kit with Uniballs and DLSS 2.5 Coilovers is a high-performance suspension upgrade designed for the Toyota Tundra models from 2016 to 2021. This system allows for a 4-inch lift, optimizing wheelwell clearance to accommodate 35-inch tires with minimal lift height. The kit features replacement upper control arms crafted from .120-inch wall 4130 Chromoly steel and equipped with 1-inch FK Stainless Uniballs, ensuring durability and precise movement. Heavy-duty extended length steering knuckles are included to maintain proper steering geometry and functionality. The design emphasizes improved performance, reliability, and affordability, making it an ideal choice for off-road enthusiasts and those seeking enhanced vehicle capability.

This control arm kit is specifically engineered for 2016-2021 Toyota Tundra trucks, providing a direct bolt-on upgrade that enhances off-road performance and ride quality. It is suitable for use on trucks that require increased tire clearance and suspension travel, whether for off-road adventures or aggressive street driving. The kit includes all necessary components for installation, including control arms and steering knuckles, ensuring a straightforward upgrade process. Compatible with models equipped with the appropriate chassis and suspension setup, this system offers a robust solution for those looking to improve handling, ground clearance, and overall vehicle capability.

Overview

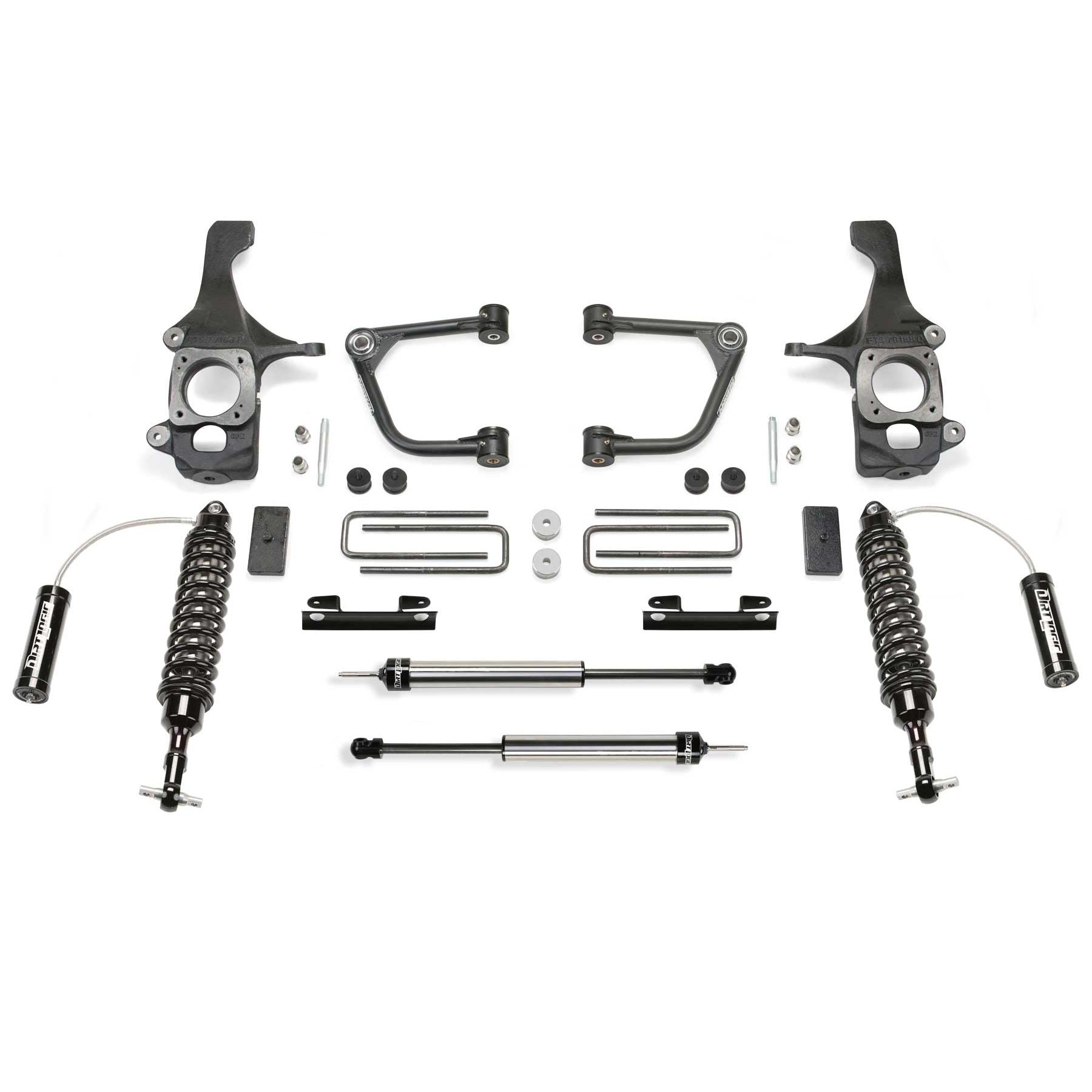

This 4in System capitalizes on Toyota Tundra's large Wheelwell opening to allow use of 35in tall tires with minimum lift height. The design of this 4in System is a new style of suspension that delivers improved performance with fewer parts, and comes with an affordable price. The system includes replacement upper control arms constructed with .120in wall 4130 Chromoly and 1in FK Stainless Uniballs. Heavy duty extended length steering knuckles are included to provide proper functionality of the factory ESC (Electronic Stability Control) with 35in tall tires. The knuckles retain the stock track width keeping the tires under the front fenders. The front differential is relocated to keep CV angles proper during the full range of travel. Front bump stop extensions and brake hose relocation brackets complete the front suspension. Rear lift comes from a 1in lift block and u-bolt system to level the stance of the vehicle. The 4in System is available with Dirt Logic 2.50 front Coilovers and rear Dirt Logic 2.25 shocks for increased travel and aggressive offroad driving.

Attributes:

  • GTIN: 00674866101050
  • Brand Name: Fabtech

Extended Information:

  • Country of Origin: United States
  • Emissions : Released
  • Life Cycle Status: Available To Order

Packing Information:

  • Quantity of Each: 1
  • Package UOM: EA
  • Dimension: 35.75 x 30.25 x 22 inches
  • Weight: 198.6 lb
