Fabtech 5" Trail w/ Stealth Suspension Kit | Jeep JL 4WD 4-Door (18-22) (K4140M)

Fabtech 5" Trail w/ Stealth Suspension Kit | Jeep JL 4WD 4-Door (18-22) (K4140M)

K4140M

Out of stock

$1,965.43 USD
$2,310.09 USD $1,965.43 USD
ADDITIONAL DISCOUNTS APPLIED AT CHECKOUT Sold out

The Fabtech 5" Trail with Stealth Suspension Kit for the Jeep JL is a comprehensive off-road suspension system designed to improve performance across a variety of challenging terrains. This system features a 5-inch lift height, utilizing a complete short arm suspension setup that incorporates factory control arm mounts for straightforward installation. Built with heavy-duty links and components, it enhances off-highway capabilities, including rock crawling, aggressive trail driving, and overland expeditions. On-road, the suspension is tuned with dual-rate coil springs and optimized shock valving to deliver a smooth, compliant ride, balancing off-road durability with daily driving comfort. The kit is engineered for durability and performance, ensuring reliable handling in demanding conditions.

This suspension kit is specifically designed for 2018-2022 Jeep JL 4WD 4-door models, accommodating various off-road and overland applications. It is a direct bolt-on upgrade that maintains compatibility with factory mounting points, simplifying installation. The system is ideal for enthusiasts seeking increased ground clearance, improved articulation, and enhanced off-road capability without sacrificing on-road comfort. The kit includes all necessary components for a complete upgrade, making it suitable for both trail and daily use. Properly installed, this suspension system provides a significant performance boost for off-road adventures while maintaining a comfortable ride on paved roads.

Overview

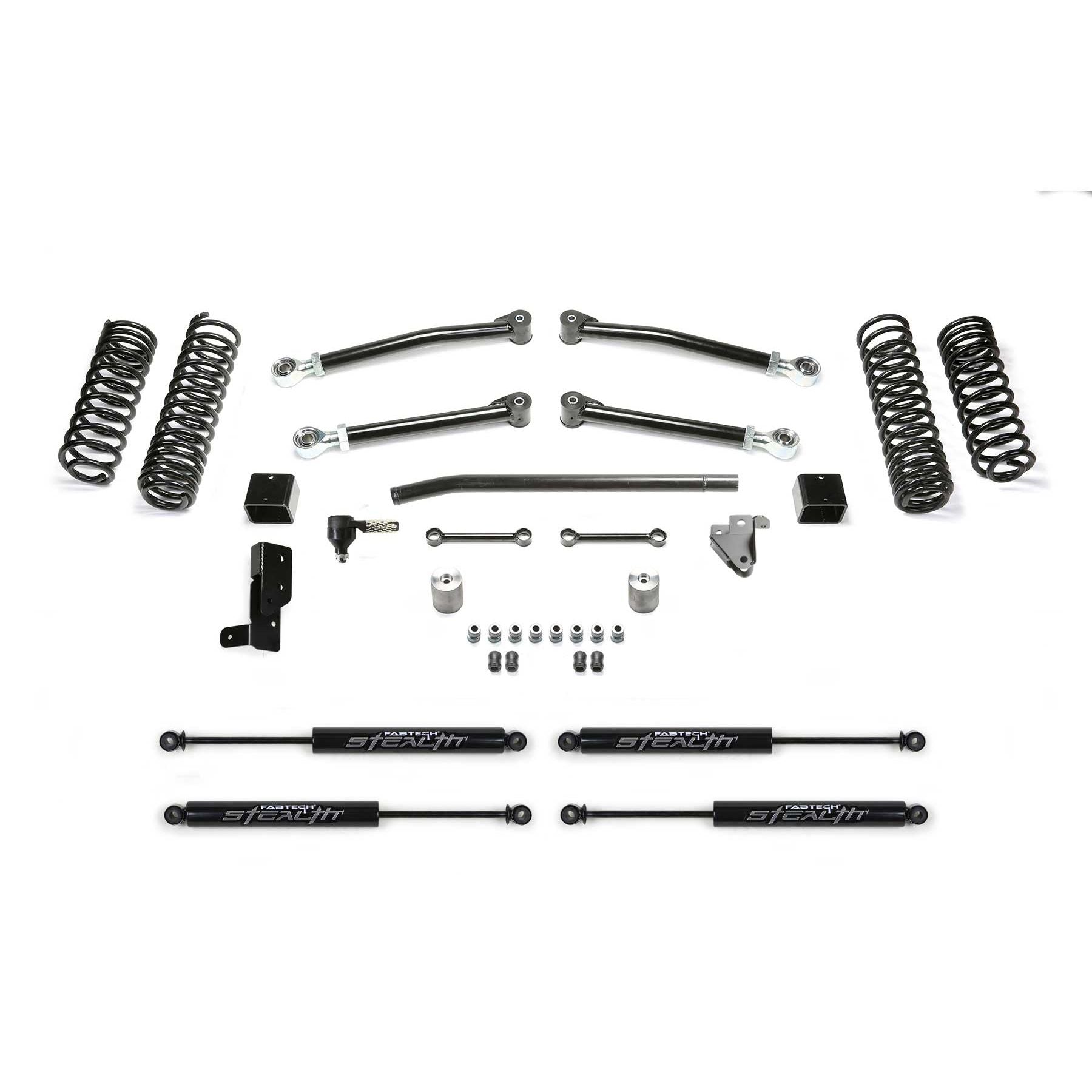

This 5in Trail system for the Jeep JL provides enhanced suspension performance to address all variants of off highway travel use including rock crawling, aggressive trail use and overland expeditions. On road, the JL suspension has been tuned with proper dual rate coil springs and shock valving to provide a very compliant ride that you will appreciate. The system is a complete short arm suspension that utilizes the factory control arm mounts for an easy installation. The Fabtech heavy duty link arms are constructed of 1.75in OD. .250in thick wall steel tubing that are guaranteed never to bend. They come with large poly urethane bushings on one end with internal threads on the other to accept the ground breaking Fabtech 5 Ton Joint for longevity and a quiet ride. Fabtech's long travel Dual Rate coil Springs are corner specific to the Jeep JL. This keeps the vehicle level side to side and allows for increased suspension travel. The first stage of the spring provides a soft ride with the ability to extend for additional travel. The second stage is designed to handle the payload of the vehicle and address large impact absorption at higher speeds. To address the steering geometry with the increased ride height, a Draglink Flip System along with a heavy duty Track Bar bracket is included. This relocates the steering geometry to the factory plane allowing for full articulation without binding the draglink ends in extreme conditions. The factory angle of the draglink to the pitman arm does not change and there is no increased side load on the steering box sector shaft as compared to using a dropped pitman arm. This helps extends the life of the steering box with the increased ride height. The heavy duty rear Track Bar bracket with side support maintains the factory roll center of the vehicle while centering the axle. Front and rear bumps stop extensions protect the suspension from over cycling. Each Fabtech component has been designed with specific features and benefi

Attributes:

  • GTIN: 00674866107854
  • Brand Name: Fabtech

Extended Information:

  • Country of Origin: United States
  • Emissions : Released
  • Life Cycle Status: Available To Order

Packing Information:

  • Quantity of Each: 1
  • Package UOM: EA
  • Dimension: 35.4 x 45.9 x 14.06 inches
  • Weight: 186.2 lb
