Fabtech 6" 4-Link Suspension System w/ 4.0 & 2.25 DL | Ford F450/F550 4WD Diesel (17) (K2285DL)

Fabtech 6" 4-Link Suspension System w/ 4.0 & 2.25 DL | Ford F450/F550 4WD Diesel (17) (K2285DL)

K2285DL

Out of stock

$5,529.47 USD
$6,499.21 USD $5,529.47 USD
ADDITIONAL DISCOUNTS APPLIED AT CHECKOUT Sold out

The Fabtech 6-inch 4-Link Suspension System with 4.0 and 2.25 DL for Ford F450 and F550 4WD Diesel trucks is a heavy-duty upgrade designed to enhance off-road and on-road performance. Constructed with 2-inch OD heavy wall link arms and 1/4-inch thick steel brackets, this system provides increased durability and strength. The inclusion of adjustable alignment cams and Fabtech's renowned 5-ton joints ensures smooth pivoting and extended service life. The kit offers a robust and reliable suspension solution that improves axle control, ride quality, and load handling for demanding applications. Its design emphasizes solid mounting points and factory track bar compatibility, making it a high-performance upgrade for serious truck enthusiasts.

This suspension system is engineered specifically for 2017 and newer Ford F450 and F550 Super Duty models equipped with diesel engines. It is a direct bolt-on conversion that replaces the factory suspension components, providing a significant lift and improved articulation. The kit includes all necessary brackets, link arms, and joints for a complete installation. Ideal for off-road adventures, heavy towing, and daily driving, this system enhances vehicle stability and capability under challenging conditions. Proper fitment is ensured for trucks with the specified chassis and axle configurations, making it a reliable choice for those seeking maximum performance and durability.

Overview

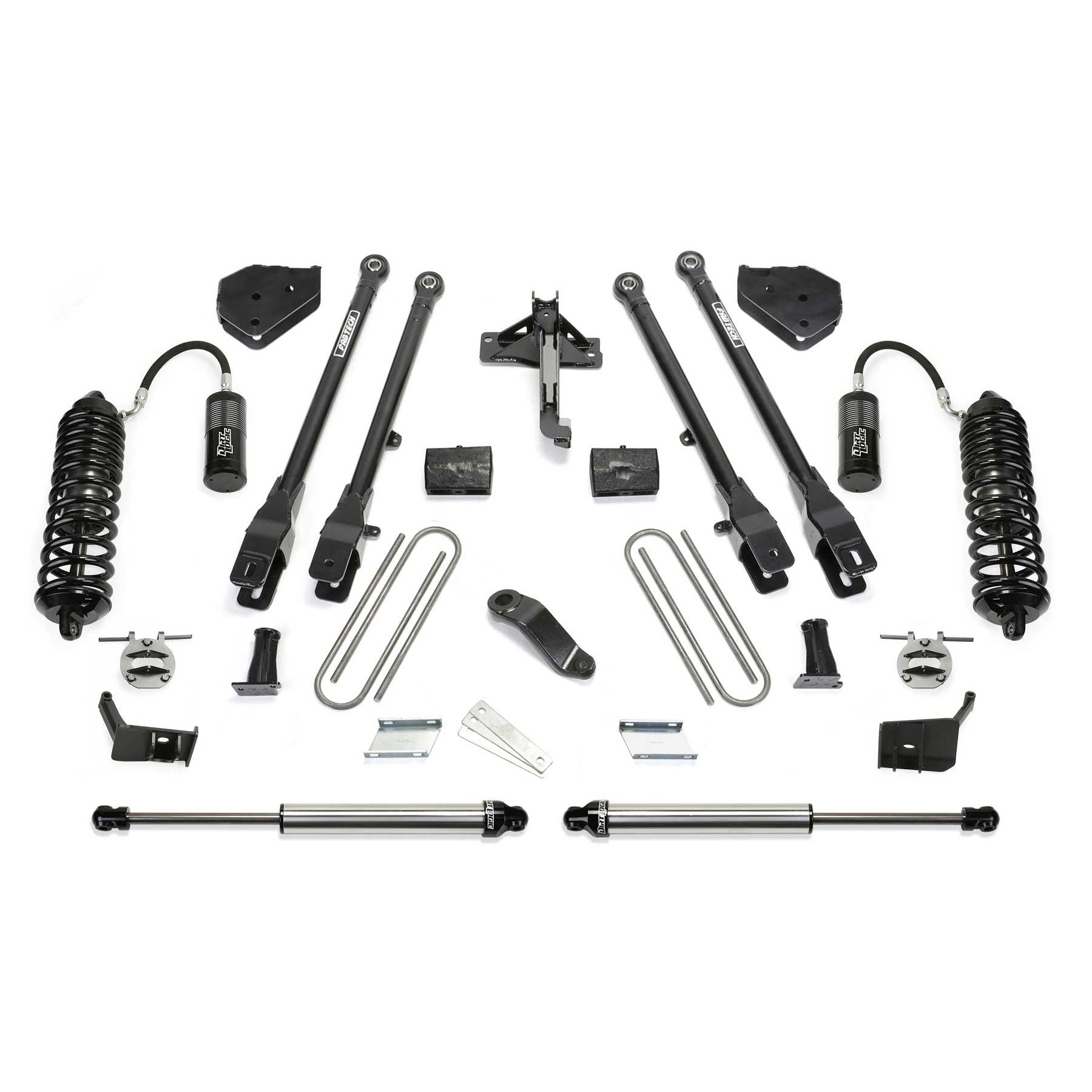

Fabtech's 6in 4 Link Conversion system for the Ford F450 and F550 Super Duty is built to handle the on and offroad demands of the truck enthusiast. 2in OD Heavy wall link arms have 1/4in thick steel brackets at the axle with adjustable alignment cams and Fabtech's legendary 5 Ton joints to pivot at the frame for an extended service life. The 4 Link Arms attach to stout 1/4in thick steel frame brackets for a solid mounting of the new suspension and factory track bar to center the axle under the vehicle with the increased lift height. The Dropped Pitman Arm uses forged steel construction with high strength material that exceeds the factory specifications. 1/4in thick steel drop brackets reposition the front sway bar for the increased ride height. This allows the sway bar link ends to fully cycle without binding throughout the extended travel range. Brake Line Brackets reposition the factory brake lines down on the frame for the new travel range without having to open the brake system. Keeps factory fluid system intact. Steering Stabilizer Brackets retain the factory F450 or F550 long travel steering stabilizer with a 1/4in thick steel bracket and support brace to help reduce tire shimmy. Steel rear lift blocks replaces the factory blocks for additional lift without changing the ride quality or load carrying capacity. American made U-Bolts designed to attach the entire rear differential to the vehicle. Simplistic super stout 1/4in thick steel brackets utilize the factory coil bucket to bolt in the big Dirt Logic 4.0 Coilover. A massive 4in diameter stainless steel body with 1.25 NitroSteel piston rod for maximum corrosion resistance and durability for the most aggressive driving conditions. The remote aluminum reservoir dissipates heat for continuous damping when driving over extreme terrain at high speed. The rear Dirt Logic 2.25 Shocks are constructed of a stainless steel body with NitroSteel piston rod for maximum corrosion resistance and durability.

Attributes:

  • GTIN: 00674866105379
  • Brand Name: Fabtech

Extended Information:

  • Country of Origin: United States
  • Emissions : Released
  • Life Cycle Status: Available To Order

Packing Information:

  • Quantity of Each: 1
  • Package UOM: EA
  • Dimension: 43.5 x 53.64 x 15.59 inches
  • Weight: 383 lb
