Fabtech 6in 4-Link System w/ Coils & Dual Shocks | Ford F450/550 4WD Diesel (19-20) (K2337DL)

Fabtech 6in 4-Link System w/ Coils & Dual Shocks | Ford F450/550 4WD Diesel (19-20) (K2337DL)

K2337DL

Out of stock

$3,811.79 USD
$4,480.31 USD $3,811.79 USD
ADDITIONAL DISCOUNTS APPLIED AT CHECKOUT Sold out

The Fabtech 6-inch 4-Link System with Coils and Dual Shocks is a comprehensive suspension upgrade designed specifically for the Ford F450 and F550 4WD Diesel models from 2019 to 2020. Engineered to meet the demanding needs of truck enthusiasts both on and off the road, this system offers a robust solution that enhances vehicle performance and durability. The conversion kit includes all necessary components to replace the factory suspension with a 4-Link front setup, providing improved stability and handling. The design minimizes caster change throughout the suspension travel, resulting in better on-road driving characteristics. Constructed with high-quality materials, this system ensures long-lasting performance and reliable operation under heavy-duty conditions.

This suspension upgrade is tailored for 2019–2020 Ford F450 and F550 Super Duty trucks equipped with diesel engines. It serves as a direct replacement for the stock front suspension, offering a significant upgrade for off-road adventures, towing, or heavy-duty use. The kit is intended for those seeking enhanced articulation and load-carrying capacity, making it suitable for both street and off-road applications. Installation involves replacing the factory components with the included 4-Link setup, which is designed for a bolt-on fitment. Compatibility is specific to the F450 and F550 4WD Diesel models, ensuring optimal performance and fitment for these trucks.

Overview

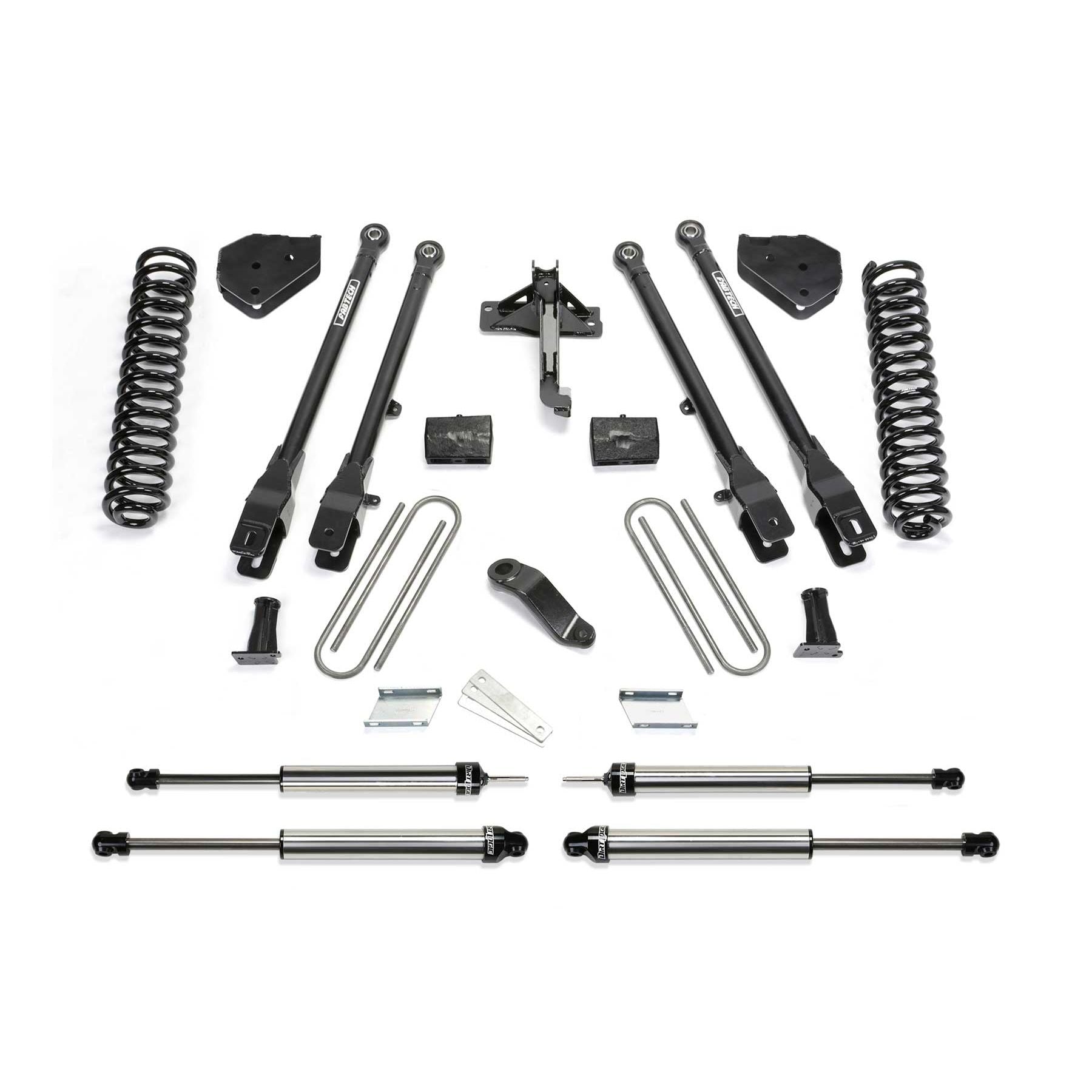

Fabtech's 6in 4 Link Conversion system for the Ford F450 and F550 Super Duty is built to handle the on and offroad demands of the truck enthusiast. This vehicle's suspension is more robust than the Ford F250 and F350 and therefore demands specialty parts only available from Fabtech. This system comes with everything needed to convert to a 4 Link front suspension. The system will provide less caster change throughout the travel range which benefits on road driving. Offroad the 4 Link system will provide more articulation than a Radius Arm for increased terrain traversing at all speeds. Fabtech's 4 Link System has been proven in over 10 years of service in consumer, commercial and military applications. High quality components with properly design suspension geometry is the pinnacle of Super Duty suspension systems. Each Fabtech component is expertly built in house and has specific design features and benefits as listed below. FEATURES: LINK ARMS & BRACKETS - 2in OD Heavy wall link arms have 1/4in thick steel brackets at the axle with adjustable alignment cams and Fabtech's legendary 5 Ton joints to pivot at the frame for an extended service life. The 5 Ton joints have been proven in military use for over 10 years and are quiet and strong. The 4 Link Arms attach to stout 1/4in thick steel frame brackets for a solid mounting of the new suspension. The geometry of the 4 Link arms and frame brackets has been designed to provide an improved highway ride due to reduced caster change and able to tackle rough offroad conditions better than a Radius Arm suspension. COIL SPRINGS - American made coil springs have been designed for a very compliant ride quality both on and offroad. Each coil is preset during the manufacturing process to insure no ride height settling over time. Allows for a 2in increase in Wheel travel over stock when used with Fabtech shock absorbers. TRACK BAR BRACKET - 1/4in thick steel bracketry rep-ositions the factory track bar to center the axle u

Attributes:

  • GTIN: 00674866109247
  • Brand Name: Fabtech

Extended Information:

  • Country of Origin: United States
  • Emissions : Released
  • Life Cycle Status: Available To Order

Packing Information:

  • Quantity of Each: 1
  • Package UOM: EA
  • Dimension: 45.5 x 53.04 x 15 inches
  • Weight: 324.8 lb
