Fabtech 6" 4-Link System with Coils & Performance Shocks

2008–2010 Ford F450/F550 4WD

Part #: K2054

Overview

The Fabtech 6" 4-Link System with Coils and Performance Shocks is designed to elevate the off-road capabilities and suspension performance of your Ford F450 or F550 4WD. Engineered specifically for the 2008–2010 Super Duty trucks, this bolt-on suspension upgrade offers unmatched articulation, increased wheel travel, and enhanced durability. Whether you're tackling rugged trails, heavy-duty work, or seeking improved on-road ride quality, this system provides a comprehensive solution to meet your performance needs.

Built for enthusiasts who demand superior strength and reliability, the Fabtech 4-Link System transforms your truck's suspension geometry, allowing for greater flexibility and control over challenging terrains. The system's robust design ensures that your vehicle maintains stability and handling, even under demanding conditions, while supporting larger tires and heavier loads.

Key Features

The Fabtech 4-Link System incorporates advanced engineering and high-quality materials to deliver exceptional performance and durability. Key features include:

• Heavy-wall 2-inch diameter links constructed from high-strength steel for maximum resilience and longevity.
• Race-style 1-inch Uniballs at pivot points, providing superior strength and precise movement, reducing wear over time.
• Thick 1/4-inch steel brackets that securely mount the links to the vehicle's frame without the need for cutting or welding, simplifying installation.
• Compatibility with factory or aftermarket coil springs, allowing for customization based on your driving style and load requirements.
• Option to upgrade to Dirt Logic adjustable coilover shocks for fine-tuning ride height and damping characteristics.
• Billet sway bar links included to improve stability and handling during off-road maneuvers.
• Trac bar brackets and hardware designed for a precise fit and long-lasting performance.

Construction & Design

The Fabtech 4-Link System is meticulously engineered with heavy-duty steel components that withstand the rigors of off-road driving and heavy loads. The 2-inch diameter links are crafted from thick-walled steel tubing, ensuring strength and resistance to bending or breaking under stress. The race-style 1-inch Uniballs are precision-machined and TIG-welded for a seamless, durable connection that allows for smooth articulation and reduced wear.

The system's brackets are made from 1/4-inch steel, providing a sturdy foundation that secures the links firmly to the frame without requiring cutting or welding, making the installation process straightforward and less invasive. The design maintains proper suspension geometry, optimizing wheel travel and articulation while preserving ride quality and handling characteristics. The inclusion of billet sway bar links further enhances stability, especially during off-road excursions.

Performance & Sound

This 4-Link System significantly improves your truck's off-road articulation and wheel travel, allowing for better traction and control over uneven terrain. The heavy-duty components and race-style Uniballs contribute to a more responsive suspension, translating into improved handling and a smoother ride both on and off the pavement. While the system is primarily designed for performance and durability, it also provides a more commanding stance and aggressive appearance.

Installation & Fitment

The Fabtech 4-Link System is a bolt-on upgrade that requires no cutting or welding, making it accessible for experienced DIY enthusiasts and professional installers alike. The system mounts directly to the factory frame and existing suspension points, ensuring a precise fit. Some minor adjustments may be necessary to optimize alignment and ride height, especially if upgrading to adjustable coilover shocks. Overall, installation is straightforward with standard tools, and detailed instructions are included to guide you through the process.

• Designed specifically for 2008–2010 Ford F450 and F550 4WD trucks.
• Compatible with factory coil springs or aftermarket coilover shocks.
• No cutting, welding, or major modifications required for installation.

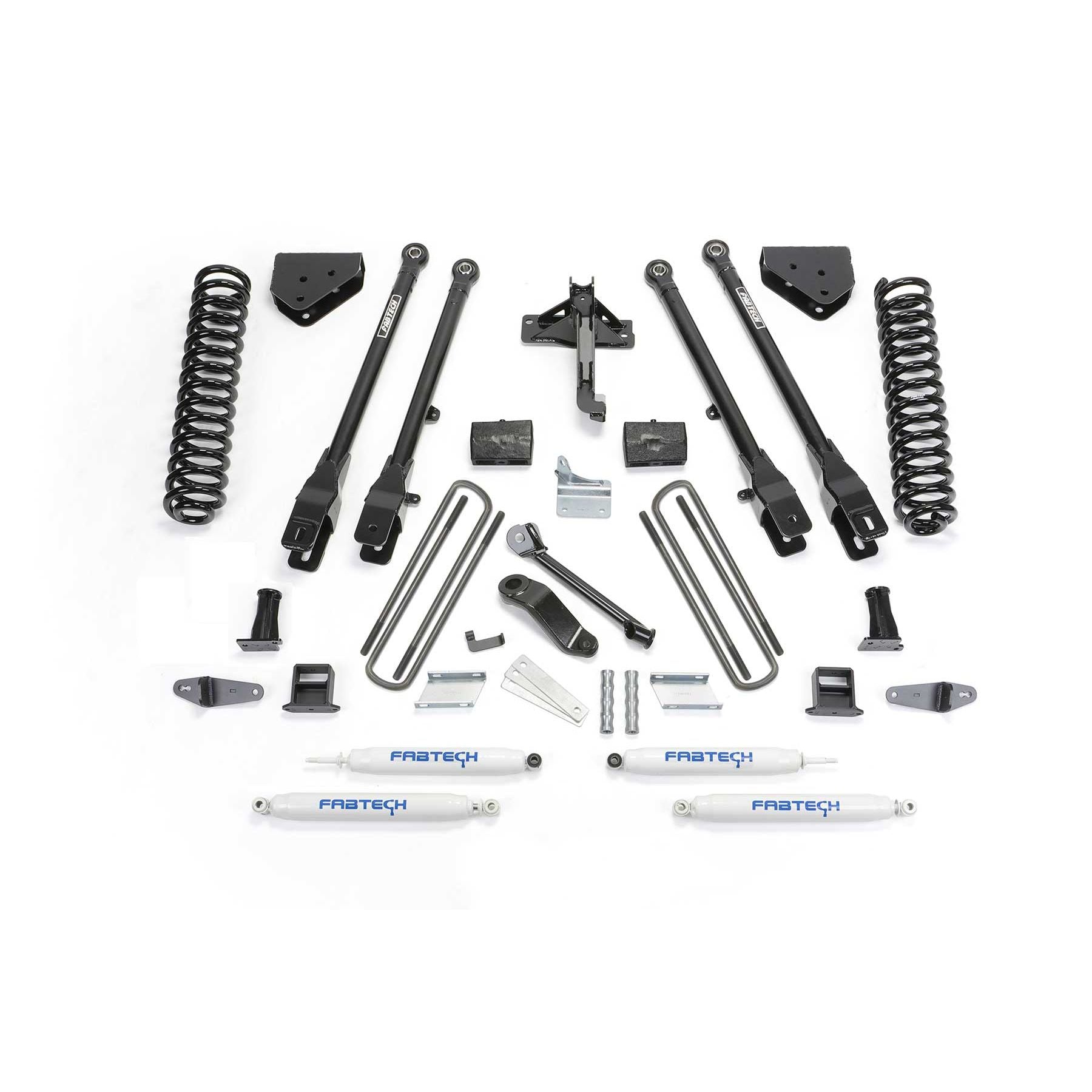

What's Included

• Heavy-duty 2-inch diameter steel links with race-style 1-inch Uniballs
• Steel brackets for frame mounting
• Billet sway bar links
• Trac bar brackets and hardware
• All necessary mounting hardware and instructions

Ideal For

This suspension system is perfect for off-road enthusiasts, heavy-duty truck owners, and those seeking to improve their Ford F450/F550's articulation, wheel travel, and overall suspension performance. Whether for trail riding, towing, or heavy payloads, this system provides the strength and flexibility needed to handle demanding conditions with confidence.
