Fabtech 6in Basic System w/ Performance Shocks | Nissan Titan 4WD (14-17) (K6008)

Fabtech 6in Basic System w/ Performance Shocks | Nissan Titan 4WD (14-17) (K6008)

K6008

Out of stock

$1,909.26 USD
$2,244.08 USD $1,909.26 USD
ADDITIONAL DISCOUNTS APPLIED AT CHECKOUT Sold out

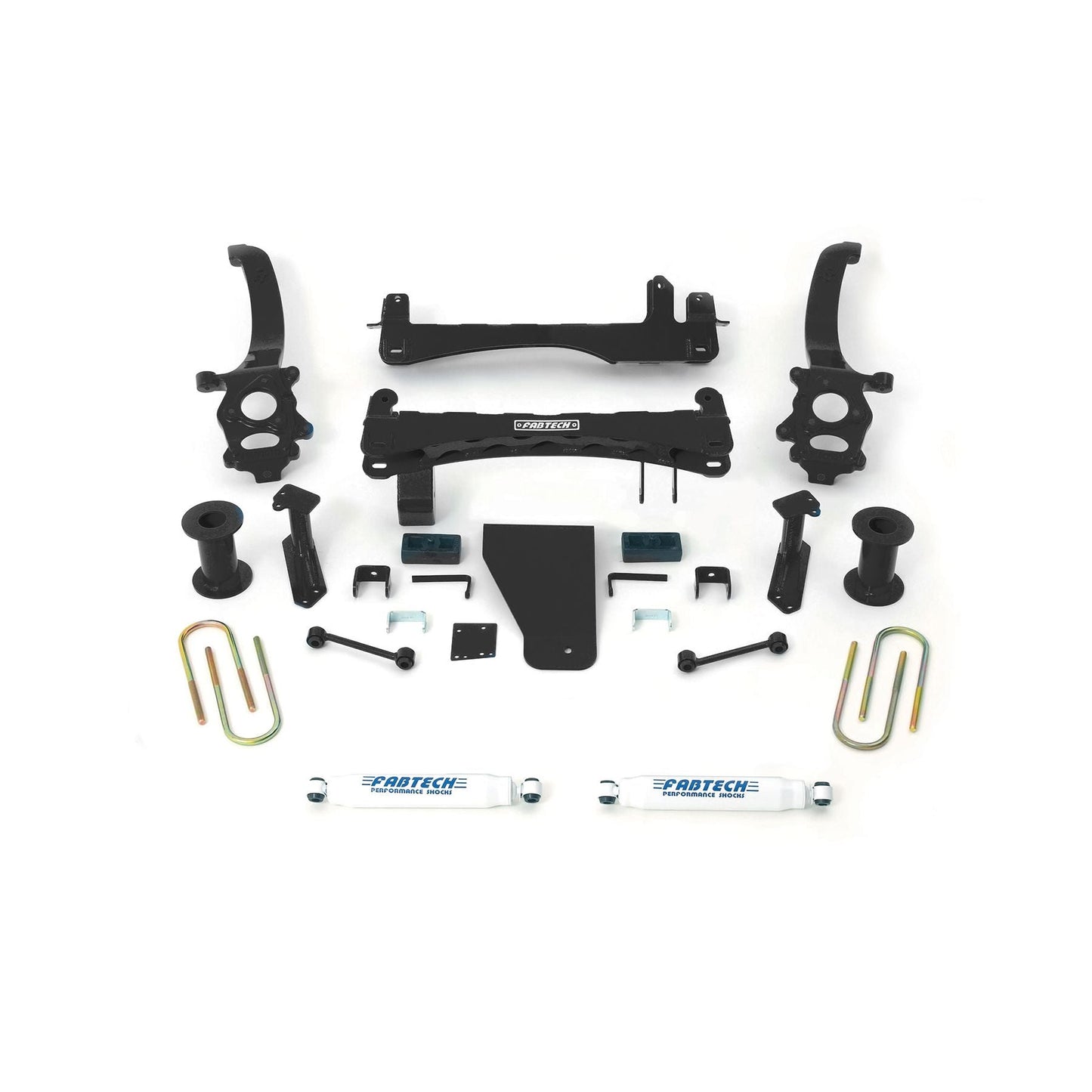

The Fabtech 6-inch Basic System with Performance Shocks for the Nissan Titan 4WD (2014-2017) is a comprehensive suspension lift kit designed to enhance off-road capability and ground clearance. It features Fabtech's proven independent front suspension (IFS) technology, incorporating extended ductile iron steering knuckles that maintain factory electronic stability control functionality. The system includes heavy-duty 1/4-inch thick steel lower control arm crossmembers, providing increased durability and strength, while the integrated front differential skid plate offers essential protection for the drivetrain during rugged off-road use. The rear lift is achieved through a block and u-bolt configuration, ensuring a stable and reliable lift height. The kit also includes front coilover spacers that utilize the factory coilover shocks, simplifying installation and maintaining ride quality.

Designed specifically for 2014-2017 Nissan Titan 4WD models, this lift system is a direct bolt-on upgrade that improves ground clearance and off-road performance without compromising on-road handling. It is suitable for off-road enthusiasts seeking increased ride height for larger tires and better obstacle clearance, as well as those wanting a more aggressive stance. The kit is intended for off-road and trail use, providing a durable and reliable solution for lifted trucks. Installation involves replacing factory components with the included spacers, control arm crossmembers, and skid plates, making it an effective upgrade for both daily drivers and serious off-roaders.

Overview

This system feature Fabtech's proven IFS technology with extended length ductile iron steering knuckles for proper factory electronic stability control functionality. Heavy duty 1/4in thick steel lower control arm crossmembers provide superior ground clearance while the integrated front differential skid plate adds protection to the drivetrain. Rear lift is accomplished with a block and u bolt configuration. The Basic System includes front coilover spacers that utilize the factory Coilover shocks for a stock like ride characteristic. 1/4in thick steel lower control arm crossmembers are arched for maximum ground clearance. Four adjustable alignment cams provide a wide range of adjustment. Extended length ductile iron steering knuckles retain near stock track width keeping the tires under the fenders. These steering knuckles are designed to work in conjunction with the factory ESC for proper functionality at all speeds. Thick wall tubing and 1/4in thick steel plate is used to build these 6in lift spacers that retain the factory Coilover shocks for a stock ride. A heavy duty front differential skid plate is constructed of 1/4in thick steel to protect the diff from offroad obstacles. Integrated differential mounts on the crossmembers properly re-position the front diff for the precise CV and driveshaft angle throughout the entire steering and suspension travel range. 1/4in thick steel construction with heavy wall tubing is built to handle the full compression impact of the Titan. Extended length sway bar end links feature urethane bushings for positive on road feel and longevity. Steel rear lift blocks replaces the factory blocks for addition lift without changing the ride quality or load carrying capacity. American made U-Bolts that retain the entire rear differential to the vehicle. A critical part that demands the best quality for your vehicle. Extended length Performance twin tube shocks provide a good highway ride with the ability to tackle offroad.

Attributes:

  • GTIN: 00674866105492
  • Brand Name: Fabtech

Extended Information:

  • Country of Origin: United States
  • Emissions : Released
  • Life Cycle Status: Available To Order

Packing Information:

  • Quantity of Each: 1
  • Package UOM: EA
  • Dimension: 45.5 x 30.635 x 16.25 inches
  • Weight: 225.9 lb
