• Fabtech 6" Performance System w/ 2.5" Front Coilover & Rear Dual Link Suspension | Ram 1500 2WD (19-21) (K3094DL)
  • Fabtech 6" Performance System w/ 2.5" Front Coilover & Rear Dual Link Suspension | Ram 1500 2WD (19-21) (K3094DL)
1 2

Fabtech 6in Perf System w/ 2.5in F&R Coilovers & Dual Link Suspension | Ram 1500 19-21 (K3094DL)

Fabtech 6in Perf System w/ 2.5in F&R Coilovers & Dual Link Suspension | Ram 1500 19-21 (K3094DL)

K3094DL

Out of stock

$3,476.03 USD
$4,085.65 USD $3,476.03 USD
ADDITIONAL DISCOUNTS APPLIED AT CHECKOUT Sold out

The Fabtech 6-inch Performance Suspension System for the Ram 1500 (2019-2021) is a comprehensive lift kit designed to increase ride height while maintaining factory suspension components. It features heavy-duty bracketry and extended length ductile iron steering knuckles, ensuring proper electronic stability control functionality. The system includes high-quality Dirt Logic shocks that enhance damping capacity for off-road performance, providing superior ride quality both on and off the pavement. Constructed with durable materials such as 1/4-inch thick steel lower control arm crossmembers, this suspension system offers increased durability and strength for demanding driving conditions. Its proven IFS technology ensures reliable performance and improved ground clearance, making it suitable for aggressive off-road adventures or enhanced on-road presence.

Designed specifically for 2019-2021 Ram 1500 models, this lift system is compatible with various engine configurations and chassis codes within that range. It is intended for off-road enthusiasts and those seeking a higher stance for improved ground clearance and tire clearance. The kit is a bolt-on upgrade that does not require extensive modifications, simplifying installation. It includes all necessary components for a complete suspension lift, ensuring a seamless fit and optimal performance. Whether for off-road excursions or a more commanding street presence, this system enhances the vehicle’s capabilities while maintaining ride quality and stability.

Overview

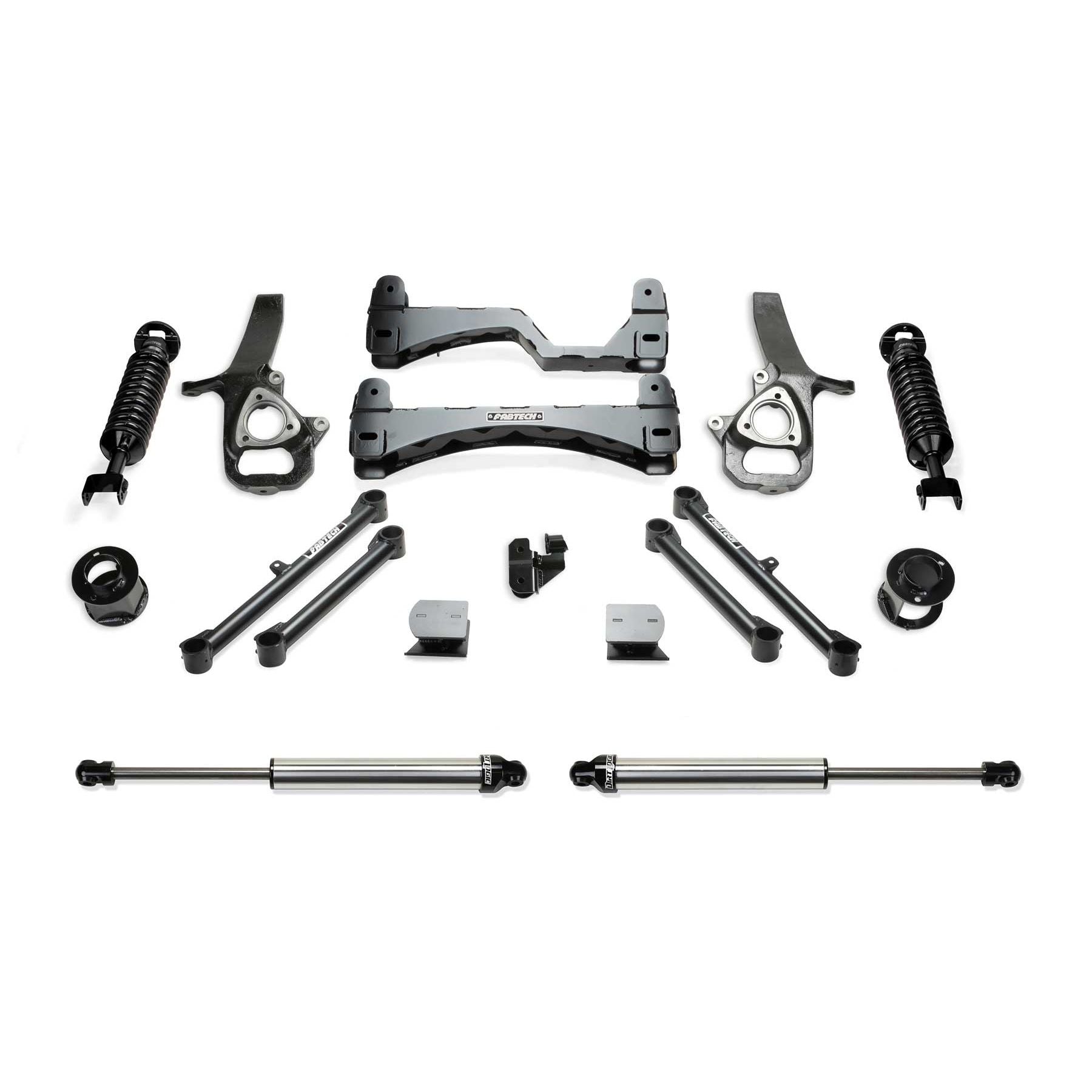

This system offers increased ride height utilizing the factory suspension components with heavy duty bracketry. High quality Dirt Logic shocks are included to enhance the damping capacity of the vehicle for offroad use while providing a superior on road ride quality. The system feature Fabtech's proven IFS technology with extended length ductile iron steering knuckles for proper electronic stability control functionality. Heavy duty 1/4in thick steel lower control arm crossmembers provide superior ground clearance for adventurous offroad trails. Rear lift is accomplished with steel coil spring spacers that utilize the factory coil springs for proper load capacity and a great highway ride. The Performance lift kit includes Fabtech's legendary stainless steel Dirt Logic 2.5 Coilovers and rear Dirt Logic 2.25 shocks for outstanding damping capacity with a superior highway ride. CROSSMEMBERS: 1/4in thick steel lower control arm crossmembers are arched for maximum ground clearance. Four adjustable alignment cams provide a wide range of adjustment. The fully welded box design of these crossmembers provides additional strength to the front suspension. STEERING KNUCKLES: Extended length ductile iron steering knuckles retain near stock track width keeping the tires under the fenders. These steering knuckles are designed to work in conjunction with the factory ESC for proper functionality at all speeds. FRONT DIRT LOGIC 2.5 COILOVERS: Constructed of a stainless steel body and NitroSteel piston rod these 6in lift Coilovers are the finest quality on the market. Extensive ride work was performed to ensure a superior ride on and offroad. Outstanding damping for offroad. SWAY BAR BRACKETS: Heavy duty drop brackets retain the factory link ends at the correct angle for a positive road feel without creating binding at full droop. REAR COIL SPRING SPACERS: Steel rear spring spacers utilize the factory coil springs retaining the stock load carrying capacity and ride comfort. REAR TRACK

Attributes:

  • GTIN: 00674866110403
  • Brand Name: Fabtech

Extended Information:

  • Country of Origin: United States
  • Emissions : Released
  • Life Cycle Status: Available To Order

Packing Information:

  • Quantity of Each: 1
  • Package UOM: EA
  • Dimension: 45.5 x 44.33 x 15.13 inches
  • Weight: 308 lb
