Fabtech 6" Radius Arm System w/ 4.0 & 2.25 DL | Ford F450/F550 4WD Diesel (17) (K2283DL)

Fabtech 6" Radius Arm System w/ 4.0 & 2.25 DL | Ford F450/F550 4WD Diesel (17) (K2283DL)

K2283DL

Out of stock

$5,100.35 USD
$5,994.84 USD $5,100.35 USD
ADDITIONAL DISCOUNTS APPLIED AT CHECKOUT Sold out

The Fabtech 6-inch Radius Arm System for the Ford F450 and F550 4WD Diesel is a heavy-duty suspension upgrade designed to enhance off-road capability and towing performance. Constructed with tubular components and featuring dimple die side plates, this system provides superior strength and durability to withstand demanding terrain and heavy loads. The kit includes 1/4-inch thick steel brackets that reposition the factory track bar, ensuring proper axle alignment at increased lift heights. Engineered for robust performance, this radius arm system improves ground clearance, stability, and handling, making it ideal for off-road adventures and heavy-duty applications.

Designed specifically for 2017 and newer Ford F450 and F550 Super Duty trucks with diesel engines, this system is a direct bolt-on replacement that maintains factory ride quality while providing significant suspension travel and articulation. It is suited for trucks used in off-road, towing, and heavy-duty work environments. The kit includes all necessary components for installation, ensuring a straightforward upgrade process. Compatibility is limited to the specified models and year range, making it a reliable choice for those seeking increased suspension performance and durability.

Overview

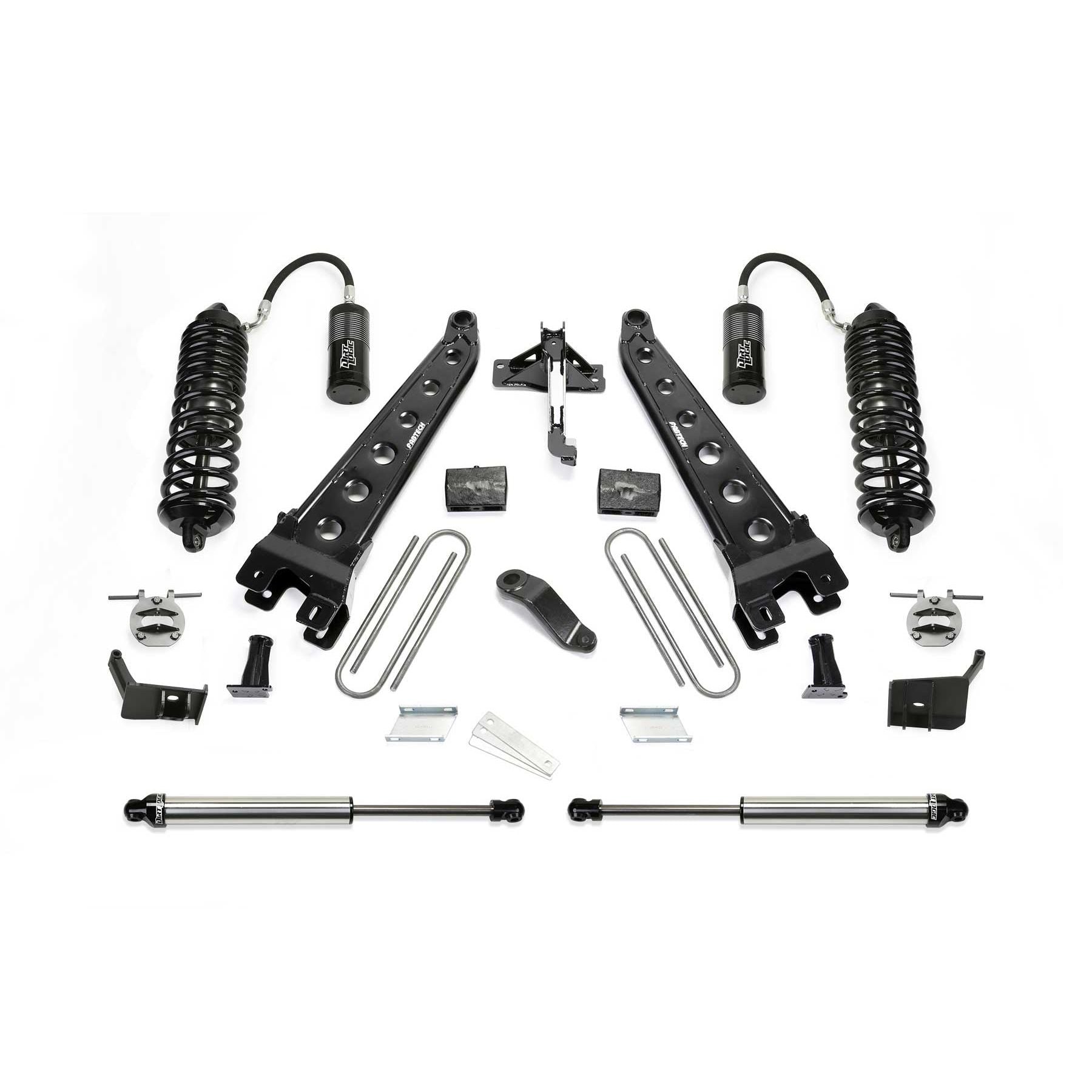

Fabtech's 6in Radius Arm system for the Ford F450 and F550 Super Duty is built to handle the on and offroad demands of the truck enthusiast. This vehicle's suspension is more robust than the Ford F250 and F350 and therefore demands specialty parts only available from Fabtech. The Radius Arms use tubular construction with dimple die side plate for superior strength. 1/4in thick steel bracketry repositions the factory track bar to center the axle under the vehicle with the increased lift height. The Dropped Pitman Arm uses forged steel construction with high strength material that exceeds the factory specifications. 1/4in thick steel drop brackets reposition the front sway bar for the increased ride height. This allows the sway bar link ends to fully cycle without binding throughout the extended travel range. Brake Line Brackets reposition the factory brake lines down on the frame for the new travel range without having to open the brake system. Keeps factory fluid system intact. Steering Stabilizer Brackets retain the factory F450 or F550 long travel steering stabilizer with a 1/4in thick steel bracket and support brace to help reduce tire shimmy. Steel rear lift blocks replaces the factory blocks for additional lift without changing the ride quality or load carrying capacity. American made U-Bolts designed to attach the entire rear differential to the vehicle. Simplistic super stout 1/4in thick steel brackets utilize the factory coil bucket to bolt in the big Dirt Logic 4.0 Coilover. A massive 4in diameter stainless steel body with 1.25 NitroSteel piston rod for maximum corrosion resistance and durability for the most aggressive driving conditions. The remote aluminum reservoir dissipates heat for continuous damping when driving over extreme terrain at high speed. The rear Dirt Logic 2.25 Shocks are constructed of a stainless steel body with NitroSteel piston rod for maximum corrosion resistance and durability.

Attributes:

  • GTIN: 00674866105348
  • Brand Name: Fabtech

Extended Information:

  • Country of Origin: United States
  • Emissions : Released
  • Life Cycle Status: Available To Order

Packing Information:

  • Quantity of Each: 1
  • Package UOM: EA
  • Dimension: 45.5 x 46.6 x 15.1 inches
  • Weight: 346.4 lb
