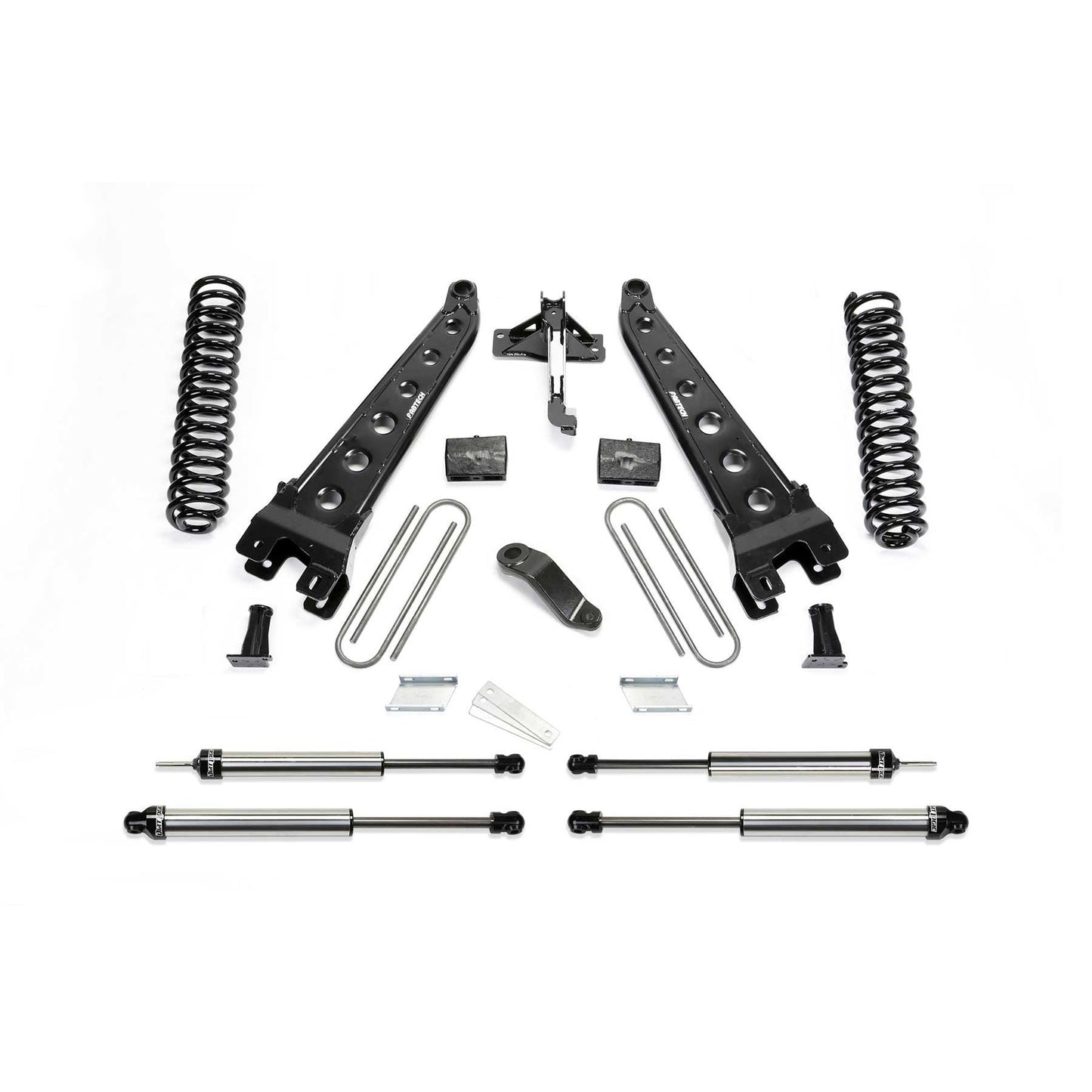

Fabtech 6in Rad Arm System w/ Coils & Dual Shocks | Ford F450/F550 4WD Diesel (19-20) (K2335DL)

Fabtech 6in Rad Arm System w/ Coils & Dual Shocks | Ford F450/F550 4WD Diesel (19-20) (K2335DL)

K2335DL

Out of stock

$3,344.43 USD
$3,930.98 USD $3,344.43 USD
ADDITIONAL DISCOUNTS APPLIED AT CHECKOUT Sold out

The Fabtech 6-inch Radius Arm System with Coils and Dual Shocks is a comprehensive lift kit designed specifically for the Ford F450 and F550 Super Duty 4WD Diesel models from 2019 to 2020. Engineered to meet the demanding off-road and on-road performance needs of truck enthusiasts, this system offers a significant lift height while enhancing suspension strength and durability. Constructed with high-quality materials, the radius arm design provides improved stability and handling, especially when fitted with oversized tires. The inclusion of dual shocks ensures superior damping and ride comfort, making it suitable for both recreational off-roading and heavy-duty applications. This upgrade is a proven solution, backed by over a decade of successful service in various demanding environments.

This lift kit is a direct replacement for the factory suspension components on 2019-2020 Ford F450 and F550 Super Duty trucks equipped with diesel engines. It is tailored for vehicles requiring increased ground clearance and improved off-road capability, whether for work, recreation, or daily driving. The kit includes all necessary components for a bolt-on installation, ensuring a straightforward upgrade process. Designed to handle the increased stresses of off-road use and larger tires, this system enhances vehicle performance and stability. It is ideal for truck owners seeking a robust suspension upgrade that maintains factory-like reliability while providing additional height and strength.

Overview

Fabtech's 6in Radius Arm lift kit for the Ford F450 and F550 Super Duty is built to handle the on and offroad demands of the truck enthusiast. This vehicle's suspension is more robust than the Ford F250 and F350 and therefore demands specialty parts only available from Fabtech. This Radius Arm system is a complete upgrade to the factory suspension and will provide additional strength for use with oversized tires. The design has been proven in over 10 years of service in consumer, commercial and military applications. High quality components with properly designed suspension geometry is what sets this system apart from all other Radius Arm suspensions. Each Fabtech component has been designed with specific features and benefits that create this quality suspension system. For a greater understand of each these components please see below. FEATURES: RADIUS ARM - Tubular construction with dimple die side plate for superior strength. Arms are offset to allow for full turning radius of the Dana Super 60 front axle with wide tires. Fabtech Radius Arms have 1 degree of caster built in for the increased ride height. Adjustable alignment cams on the Arms allow for an additional 1.5-2 degrees of caster adjustment. COIL SPRINGS - American made coil springs have been designed for a very compliant ride quality both on and offroad. Each coil is preset during the manufacturing process to insure no ride height settling over time. Allows for a 2in increase in Wheel travel over stock when used with Fabtech shock absorbers. TRACK BAR BRACKET - 1/4in thick steel bracketry repositions the factory track bar to center the axle under the vehicle with the increased lift height. Super stout box style bracket is designed to eliminate deflection when the track bar moves through its full cycle. DROPPED PITMAN ARM - Forged steel construction with high strength material that exceeds the factory specifications. Designed specifically for the F450 and F550 to work in conjunction with the facto

Attributes:

  • GTIN: 00674866109209
  • Brand Name: Fabtech

Extended Information:

  • Country of Origin: United States
  • Emissions : Released
  • Life Cycle Status: Available To Order

Packing Information:

  • Quantity of Each: 1
  • Package UOM: EA
  • Dimension: 45.5 x 45 x 15 inches
  • Weight: 286.2 lb
