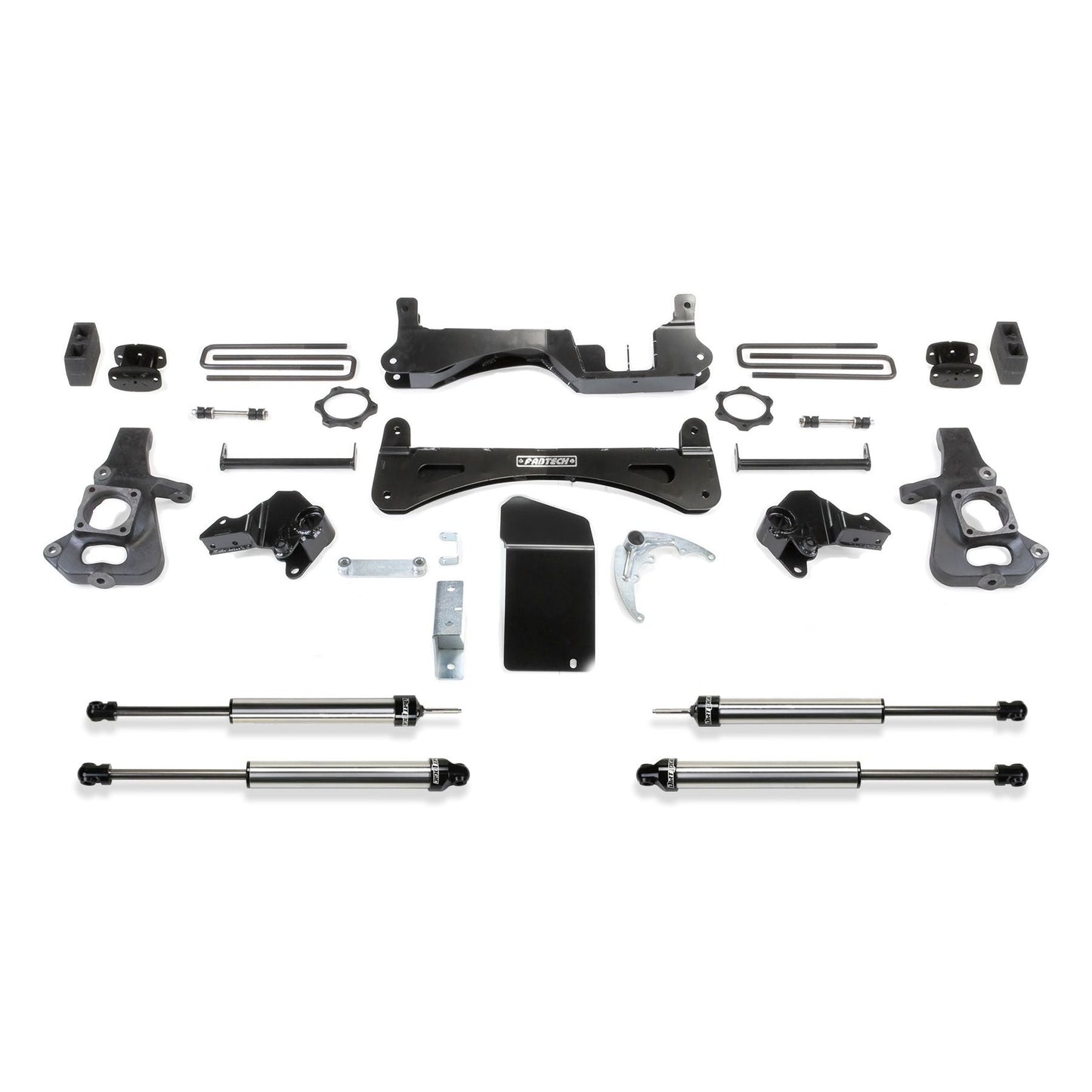

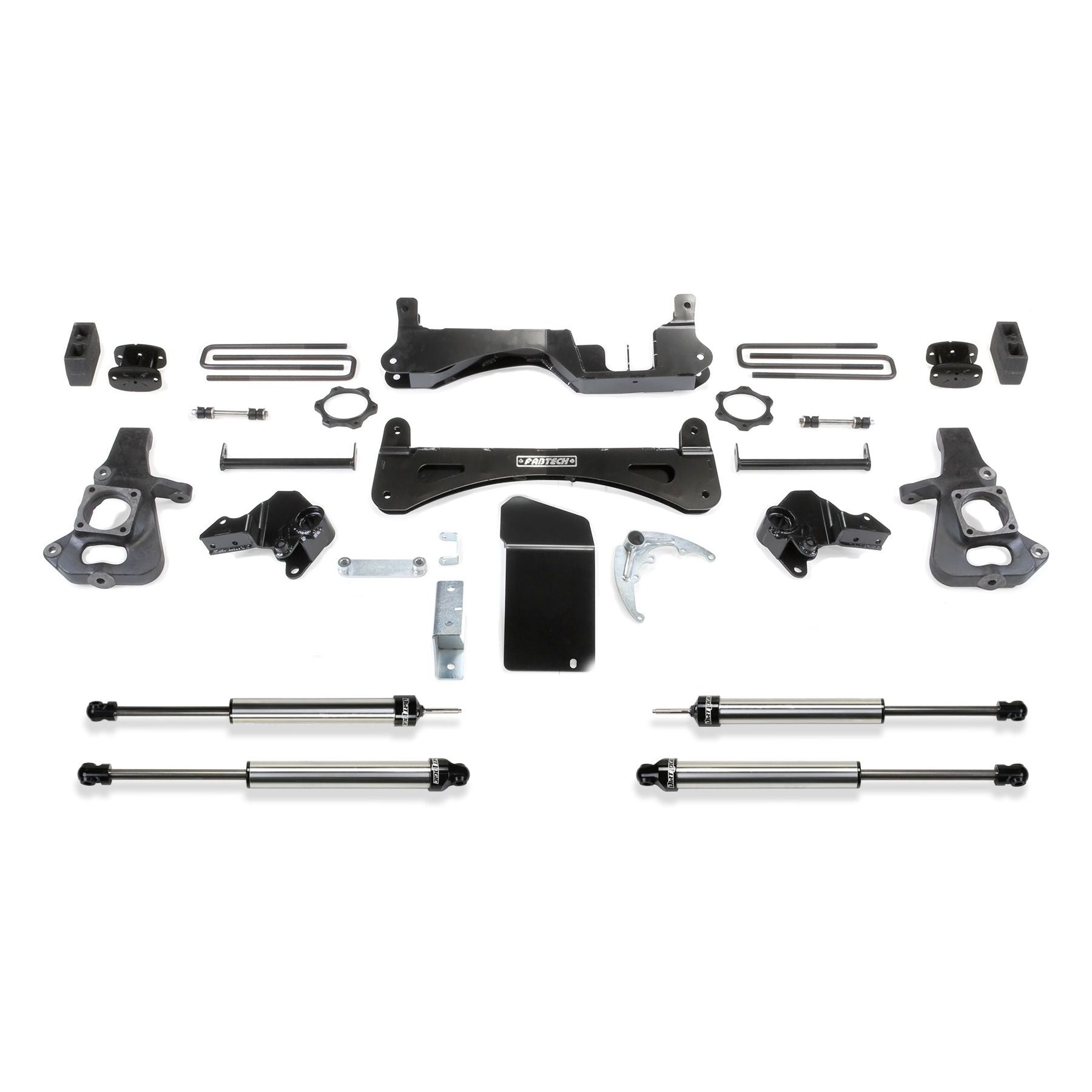

Fabtech 6in RTS System w/ DLSS Shocks | GM C/K2500HD / C/K3500HD (01-10) (K1045DL)

Fabtech 6in RTS System w/ DLSS Shocks | GM C/K2500HD / C/K3500HD (01-10) (K1045DL)

K1045DL

Out of stock

$3,260.98 USD
$3,832.88 USD $3,260.98 USD
Special Discounts May Apply at Checkout Sold out

The Fabtech 6-inch RTS System with DLSS Shocks is a high-performance suspension upgrade designed for GM C/K2500HD and C/K3500HD trucks from 2001 to 2010. This raised torsion suspension system features patent-pending torsion bar brackets that maintain the torsion bars in their stock location, providing improved ground clearance at the frame. The system eliminates hanging torsion bars that can become high-centered or damaged during off-road use. Constructed with unitized bracketry, it reduces installation time while increasing overall strength and durability. The high arched crossmembers are built from 1/4-inch steel, ensuring robust performance and longevity. This suspension kit enhances off-road capability, ground clearance, and vehicle stability, making it ideal for aggressive off-road adventures and heavy-duty applications.

Designed specifically for 2001-2010 GM C/K2500HD and C/K3500HD models, this system is a direct bolt-on upgrade that maintains factory ride quality while providing increased suspension travel and articulation. It is suitable for trucks used in off-road, towing, or heavy-duty work environments. The kit includes all necessary brackets, hardware, and shocks, streamlining the installation process. Compatible with stock or aftermarket wheels and tires, this RTS system is an excellent choice for those seeking to improve off-road performance without sacrificing ride comfort or reliability. Proper installation requires basic mechanical skills, and it is recommended for use on vehicles with the specified chassis and engine configurations.

Overview

The all new RTS (Raised Torsion Suspension) system utilizes patent pending torsion bar brackets that keep the torsion bars raised up, in the stock location. This feature provides superior ground clearance at the frame as there is no torsion bars hanging down to become high centered on or damaged when offroading. The RTS system has been designed with unitized bracketry reducing the installation time and providing increased strength. Our signature high arched crossmembers are constructed of 1/4in thick steel and feature tubular cross braces with a 1/4in thick steel front differential skid plate. The construction of the crossmembers, using 1/4in thick steel, is an important part of this system. Only 1/4in thick steel provides the rigidity and strength necessary to relocate the torsion bars, bump stops and lower control arms properly. Fabtech has performed rigorous on and offroad testing of this new RTS system to establish the proper bump stop engagement, torsion bar location and shock valving for a superior performing suspension system. This industry leading system rewrites how an IFS suspension system should function for ultimate offroad use with great highway manners. Includes front and rear 2.25 Dirt Logic Stainless Steel shocks.

Attributes:

  • GTIN: 00674866095670
  • Brand Name: Fabtech

Extended Information:

  • Country of Origin: United States
  • Emissions : Released
  • Life Cycle Status: Available To Order

Packing Information:

  • Quantity of Each: 1
  • Package UOM: EA
  • Dimension: 45.5 x 43.5 x 22 inches
  • Weight: 282.2 lb
