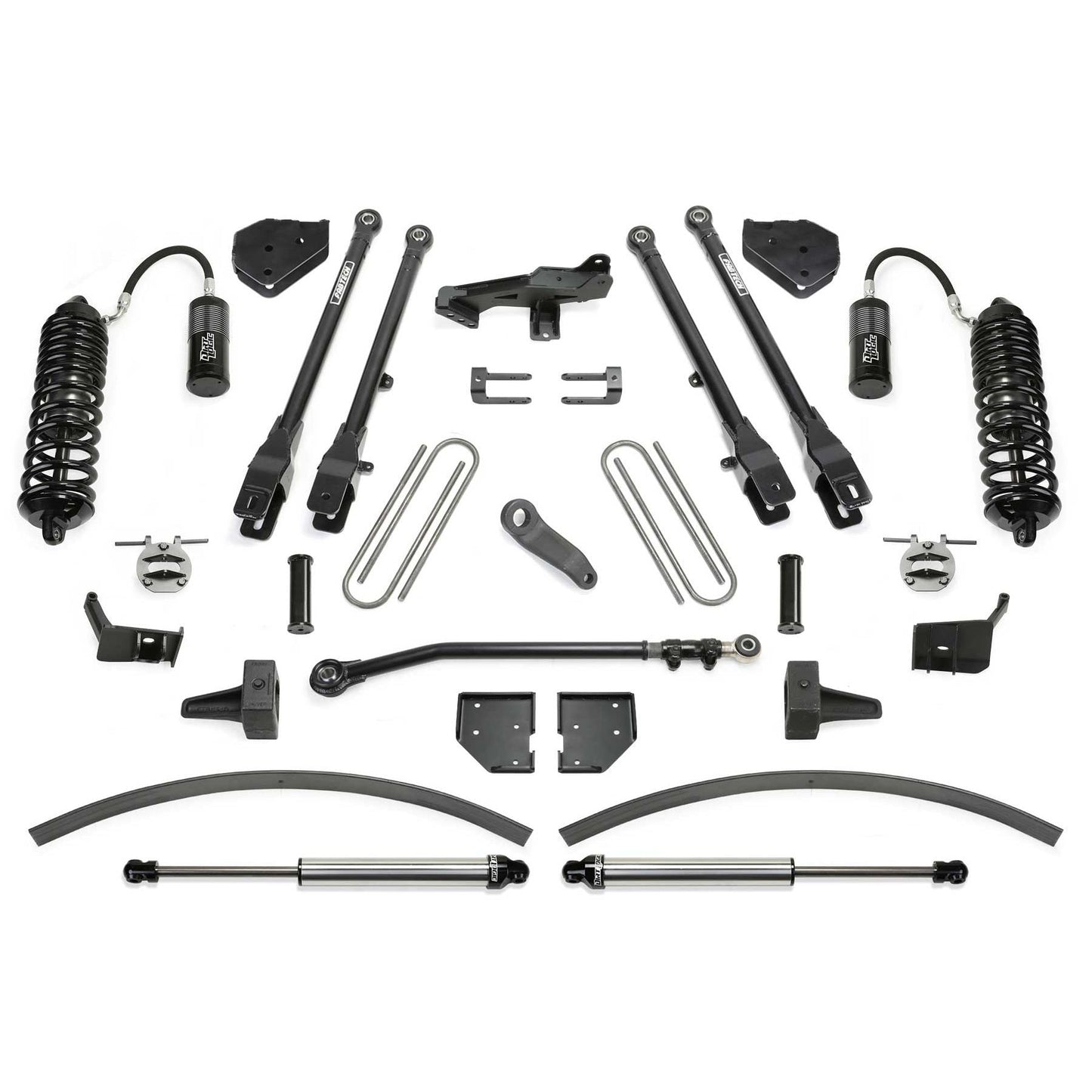

Fabtech 8" 4-Link System w/ 4.0 & 2.25 | Ford F250/F350 4WD Diesel (17-21) (K2302DL)

Fabtech 8" 4-Link System w/ 4.0 & 2.25 | Ford F250/F350 4WD Diesel (17-21) (K2302DL)

K2302DL

Out of stock

$5,937.04 USD
$6,978.25 USD $5,937.04 USD
ADDITIONAL DISCOUNTS APPLIED AT CHECKOUT Sold out

The Fabtech 8" 4-Link Conversion System for the Ford F250/F350 4WD Diesel is a high-performance suspension upgrade designed to enhance both on-road and off-road capabilities. This system replaces the factory radius arm suspension with heavy-duty 4-link components, offering increased strength and improved functionality. It is engineered to provide less caster change throughout the suspension travel, resulting in more stable handling and steering precision during daily driving. Additionally, the system delivers increased articulation for off-road terrain traversal, making it ideal for demanding off-road adventures. Constructed with durable materials, the components are built to withstand rigorous use and provide long-lasting performance.

Designed for 2017-2021 Ford F250 and F350 Super Duty models equipped with diesel engines, this 4-link system is a direct replacement upgrade that enhances suspension performance. It is suitable for both street and off-road applications, offering improved articulation and stability across rough terrains. The kit includes all necessary components for installation, ensuring a straightforward bolt-on process. This system is perfect for enthusiasts seeking increased suspension durability and articulation for off-road excursions or heavy-duty towing, providing a reliable upgrade for demanding driving conditions.

Overview

Fabtech's 8" 4 Link Conversion System for the Ford Super Duty is designed to provide maximum suspension performance for both on and offroad use. The system replaces the factory Radius Arm suspension with heavy duty 4 Link components for increased strength and functionality. The system will provide less caster change throughout the travel range which benefits on road driving. When offroad the 4 Link system will provide more articulation than a Radius Arm for increased terrain traversing at all speeds. Unique to this 8" system is Fabtech's extended length Track Bar to address the hyper sensitive steering box of the late model Super Duty. Fabtech is the only manufacturer with this exclusive system that offers proper steering performance. Fabtech's extended length Track Bar is 4" longer than stock and is offset to the driver side with a stout 1/4" thick steel mounting bracket. This design helps keep the Track Bar and Draglink closer to parallel than the factory angles to reduce push in the steering. The Track Bar allows for full lock steering of 15.50 wide tires w/ 4-3/4" BS Wheels. Included in this system is the massive Dirt Logic 4.0 Resi Coilover Conversion for outstanding damping capacity offroad with a quality on road ride. The Coilover bolts in place of the factory coil spring without removal of the coil spring bucket. The giant 4" diameter aluminum remote reservoir mounts horizontally above the Coilover to allow for full compression travel with oversized tires. The Dirt Logic 4.0 Resi Coilover is the biggest and baddest on the market for the Ford Super Duty. Fabtech's 4 Link System has been proven in over 10 years of service in rugged commercial and military applications to ensure long life on your daily driven vehicle. High quality components with properly designed suspension geometry makes this Super Duty system the pinnacle of all suspensions. Comes with a free 5 year 60,000 mile powertrain warranty.

Attributes:

  • GTIN: 00674866105966
  • Brand Name: Fabtech

Extended Information:

  • Country of Origin: United States
  • Emissions : Released
  • Life Cycle Status: Available To Order

Packing Information:

  • Quantity of Each: 1
  • Package UOM: EA
  • Dimension: 43.5 x 49.7 x 15.1 inches
  • Weight: 440.2 lb
