Fabtech 8in 4Link System w/ Coils & Dual Reservoir Shocks | Ford F250/350 17-21 (K2298DL) (K2298DL)

Fabtech 8in 4Link System w/ Coils & Dual Reservoir Shocks | Ford F250/350 17-21 (K2298DL) (K2298DL)

K2298DL

Out of stock

$4,359.30 USD
$5,123.82 USD $4,359.30 USD
ADDITIONAL DISCOUNTS APPLIED AT CHECKOUT Sold out

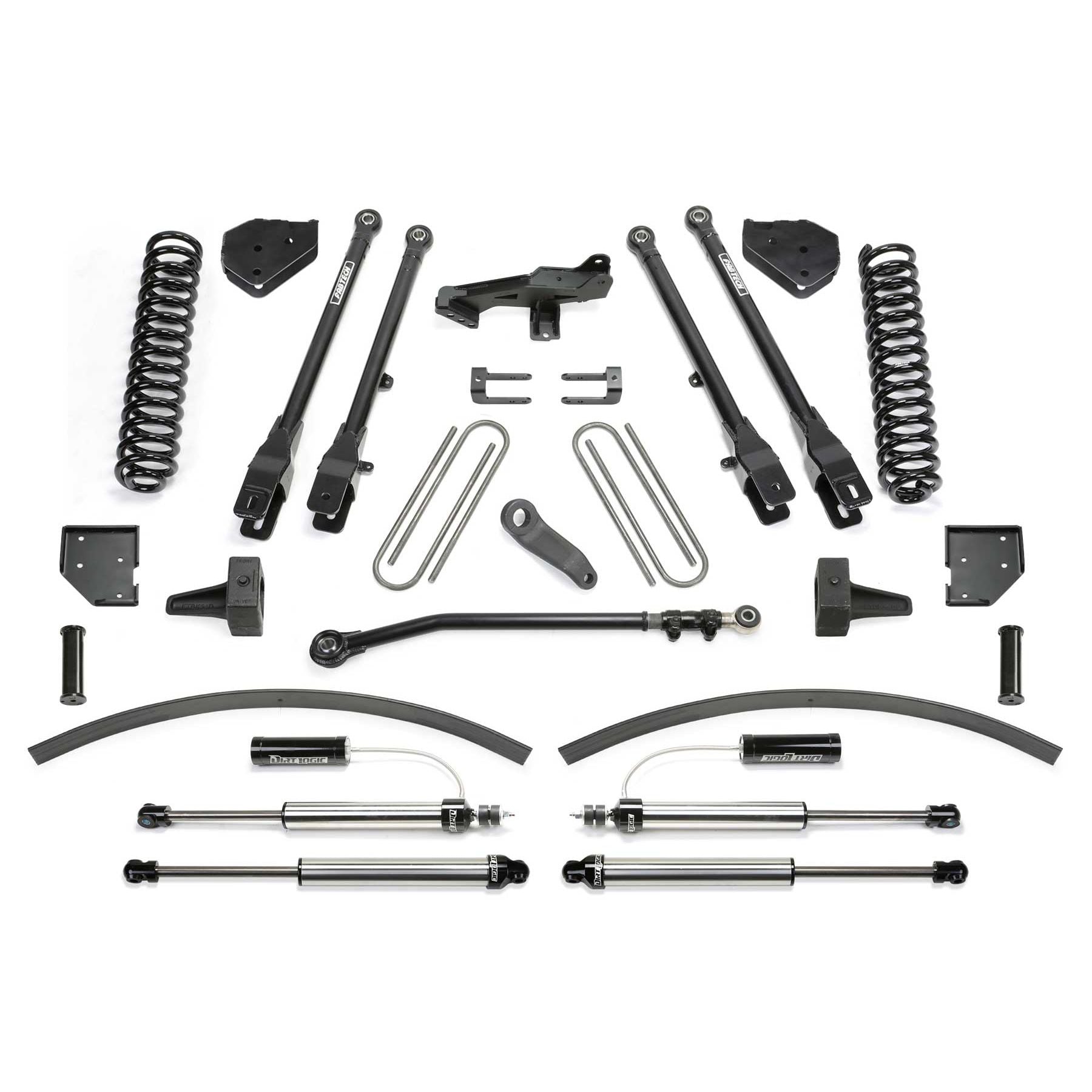

The Fabtech 8-inch 4 Link Conversion System for Ford F250 and F350 trucks is a high-performance suspension upgrade designed to enhance both on-road comfort and off-road capability. This system replaces the factory radius arm suspension with heavy-duty 4 link components, offering increased strength, durability, and improved articulation. Built with robust materials, the system ensures better terrain traversal and increased suspension travel, making it ideal for off-road adventures. It also minimizes caster change throughout the suspension travel, resulting in more stable handling and steering response during daily driving and highway use.

Designed for 2017 to 2021 Ford F250 and F350 models, this conversion kit is compatible with trucks equipped with the factory coil suspension. It is intended for off-road enthusiasts and those seeking a reliable, high-performance suspension upgrade for demanding terrain or heavy-duty use. The kit includes all necessary components for a bolt-on installation, providing a direct replacement for the factory suspension system. Suitable for off-road, towing, and heavy-duty applications, this system enhances vehicle capability while maintaining on-road stability and ride quality.

Overview

Fabtech's 8in 4 Link Conversion System for the Ford Super Duty is designed to provide maximum suspension performance for both on and offroad use. The system replaces the factory Radius Arm suspension with heavy duty 4 Link components for increased strength and functionality. The system will provide less caster change throughout the travel range which benefits on road driving. When offroad the 4 Link system will provide more articulation than a Radius Arm for increased terrain traversing at all speeds. Unique to this 8in system is Fabtech's extended length Track Bar to address the hyper sensitive steering box of the late model Super Duty. Fabtech is the only manufacturer with this exclusive system that offers proper steering performance. Fabtech's extended length Track Bar is 4in longer than stock and is offset to the driver side with a stout 1/4in thick steel mounting bracket. This design helps keep the Track Bar and Draglink closer to parallel than the factory angles to reduce push in the steering. The Track Bar allows for full lock steering of 15.50 wide tires w/ 4 3/4in BS Wheels. Fabtech's 4 Link System has been proven in over 10 years of service in rugged commercial and military applications to ensure long life on your daily driven vehicle. High quality components with properly designed suspension geometry makes this Super Duty system the pinnacle of all suspensions. Comes with a free 5 year 60,000 mile powertrain warranty.

Attributes:

  • GTIN: 00674866105928
  • Brand Name: Fabtech

Extended Information:

  • Country of Origin: United States
  • Emissions : Released
  • Life Cycle Status: Available To Order

Packing Information:

  • Quantity of Each: 1
  • Package UOM: EA
  • Dimension: 43.5 x 48.1 x 15 inches
  • Weight: 385.6 lb
