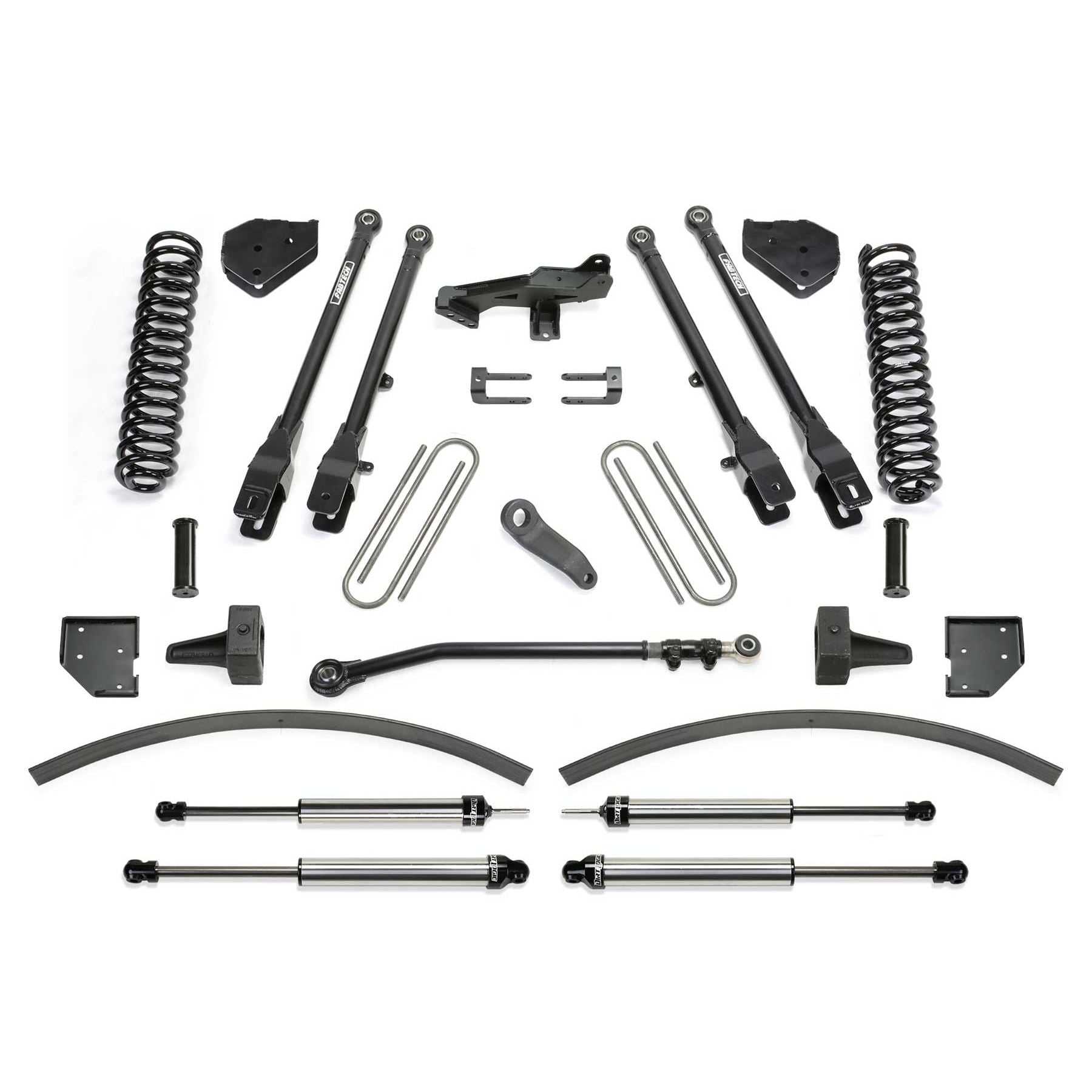

Fabtech 8" 4-Link System w/ Coils & DLSS Shocks | Ford F250/F350 4WD Diesel (17-21) (K2266DL)

Fabtech 8" 4-Link System w/ Coils & DLSS Shocks | Ford F250/F350 4WD Diesel (17-21) (K2266DL)

K2266DL

Out of stock

$4,172.51 USD
$4,904.28 USD $4,172.51 USD
ADDITIONAL DISCOUNTS APPLIED AT CHECKOUT Sold out

The Fabtech 8" 4-Link System with Coils and DLSS Shocks is a high-performance suspension upgrade designed for Ford F250 and F350 4WD Diesel models from 2017 to 2021. This system features Fabtech’s proven Radius Arm and 4-Link designs, combined with an all-new offset Track Bar system specifically engineered for the late model Super Duty platform. The suspension enhances off-road capability and ride height while maintaining precise steering control. The innovative Track Bar system addresses the hyper-sensitive steering box issues that can occur when increasing ride height to 8 inches and running oversized tires, ensuring proper steering performance and stability. Constructed with durable materials, the system provides a reliable, long-lasting upgrade for demanding off-road and towing applications.

This suspension kit is designed to fit 2017–2021 Ford Super Duty trucks equipped with diesel engines and four-wheel drive. It serves as a direct bolt-on replacement for the factory components, offering a significant upgrade in ride height, handling, and off-road performance. The kit includes all necessary components for installation, such as coils, shocks, and the specialized offset Track Bar system. Ideal for off-road enthusiasts, towing, and daily drivers seeking improved ground clearance and stability, this system ensures enhanced vehicle control and durability. Proper fitment and compatibility are confirmed for the specified model years and configurations, making it a comprehensive solution for serious truck owners.

Overview

Fabtech's 8in Super Duty suspension systems incorporate their proven Radius Arm and 4 Link designs with an all new offset Track Bar system specifically for the late model Super Duty platform. This innovative Track Bar system addresses the hyper sensitive steering box of the Ford Super Duty when increasing the ride height to 8in and running oversized tires. Fabtech is the only manufacturer with this ground breaking system that offers proper steering performance. Fabtech's extended length Track Bar is 4in longer than stock and is offset to the driver side with a stout 1/4in thick steel mounting bracket. This design helps keep the Track Bar and Draglink closer to parallel than the factory angle to reduce push in the steering. The Track Bar allows for full lock steering of 15.50 wide tires w/ 5in BS Wheels. The 8in System is available with heavy duty tubular Radius Arms or 4 Link Conversion System for outstanding on and offroad performance. Front spring options include performance Coil Springs or the Dirt Logic 4.0 Coilover Conversion system for maximum damping capacity. Dirt Logic 2.25 Stainless Steel shocks are included with these systems for a superior ride quality. These high end 8in Systems are the pinnacle of quality and ride performance for the 2017 Super Duty. Each system is a bolt on installation and comes with Fabtech's 5 year 60,000 mile warranty.

Attributes:

  • GTIN: 00674866105911
  • Brand Name: Fabtech

Extended Information:

  • Country of Origin: United States
  • Emissions : Released
  • Life Cycle Status: Available To Order

Packing Information:

  • Quantity of Each: 1
  • Package UOM: EA
  • Dimension: 43.5 x 48.1 x 15 inches
  • Weight: 378.6 lb
