Fabtech 8" 4-Link System w/ Coils & Stealth Shocks | Ford F250/F350 4WD Diesel (17-21) (K2266M)

Fabtech 8" 4-Link System w/ Coils & Stealth Shocks | Ford F250/F350 4WD Diesel (17-21) (K2266M)

K2266M

Out of stock

$3,356.33 USD
$3,944.92 USD $3,356.33 USD
ADDITIONAL DISCOUNTS APPLIED AT CHECKOUT Sold out

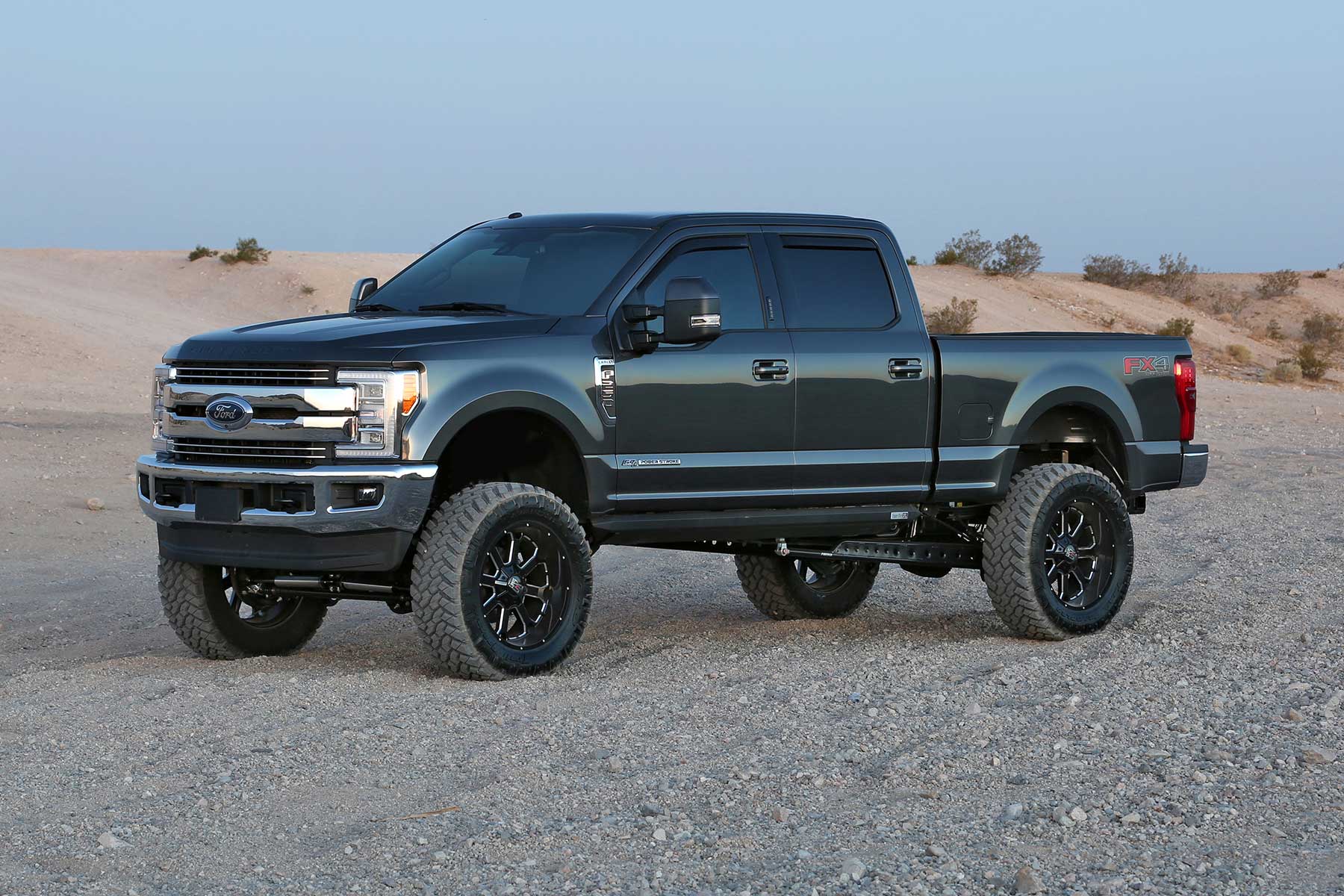

The Fabtech 8" 4-Link Conversion System with Coils and Stealth Shocks is a high-performance suspension upgrade designed for the Ford F250 and F350 4WD Diesel models from 2017 to 2021. This system replaces the factory radius arm suspension with heavy-duty 4-link components, enhancing overall strength and functionality. It is engineered to deliver improved articulation and terrain traversal capabilities for off-road driving, while also maintaining stability and reduced caster change during on-road use. The inclusion of stealth shocks ensures a smooth ride and reliable damping performance, making it suitable for both aggressive off-road adventures and daily driving conditions. Constructed with durable materials, this conversion system offers a significant upgrade in suspension performance and durability.

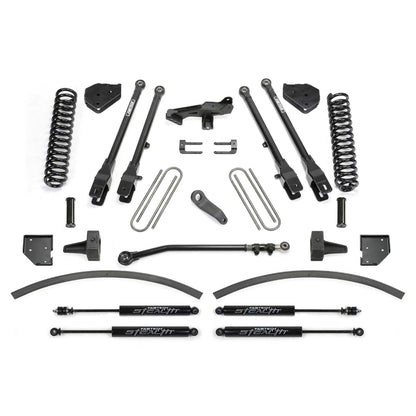

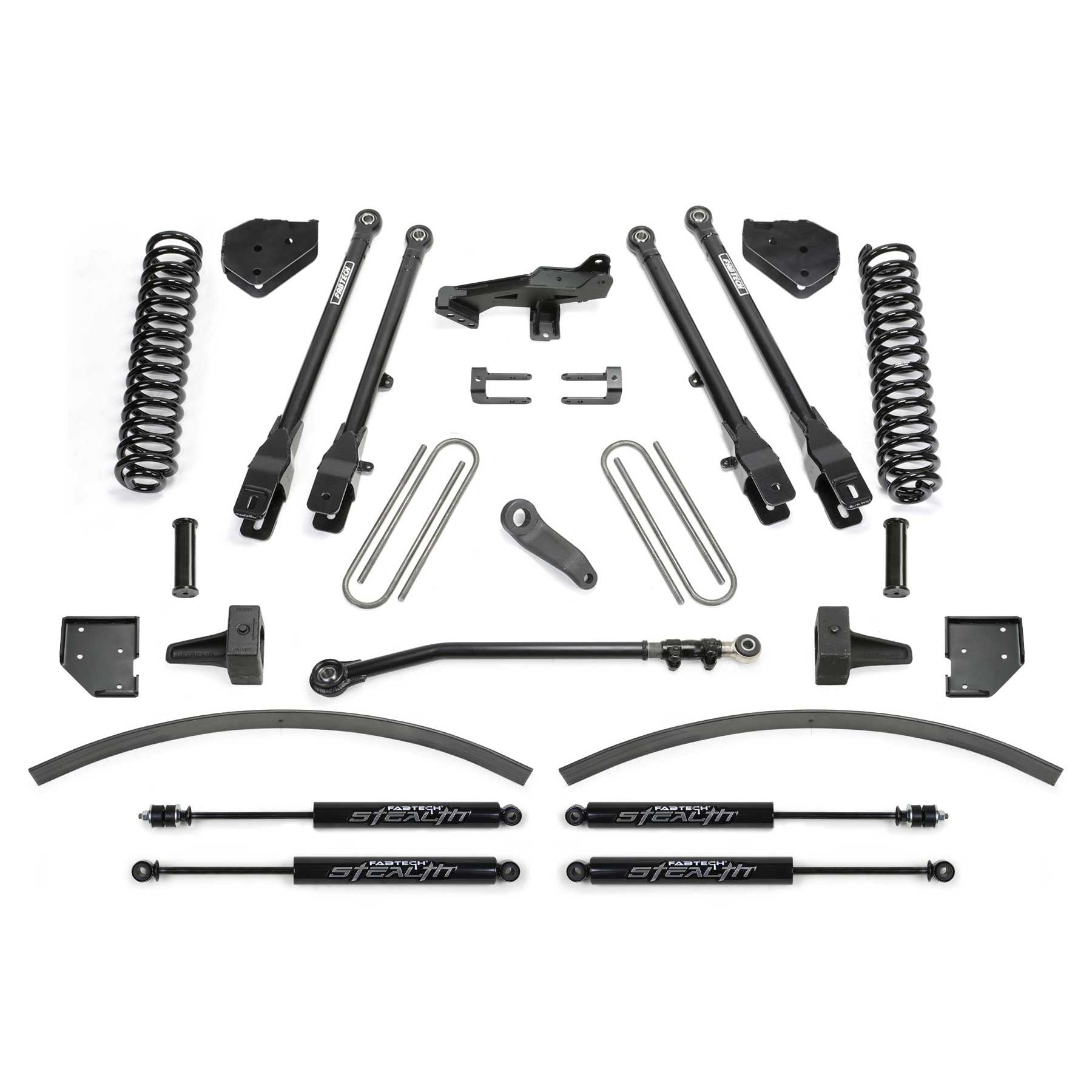

Designed specifically for 2017–2021 Ford F250 and F350 4WD Diesel trucks, this 8-inch lift system is a direct bolt-on replacement that enhances ground clearance and off-road capability. It is ideal for off-road enthusiasts seeking increased articulation and terrain handling, as well as for those wanting a more aggressive stance. The kit includes all necessary components for installation, such as heavy-duty 4-link arms, coils, and stealth shocks, ensuring a comprehensive upgrade. Suitable for off-road, trail, and overland use, this system provides a robust solution for maximizing suspension performance while maintaining on-road stability and comfort. Proper installation and alignment are recommended for optimal results.

Overview

Fabtech's 8in 4 Link Conversion System for the Ford Super Duty is designed to provide maximum suspension performance for both on and offroad use. The system replaces the factory Radius Arm suspension with heavy duty 4 Link components for increased strength and functionality. The system will provide less caster change throughout the travel range which benefits on road driving. When offroad the 4 Link system will provide more articulation than a Radius Arm for increased terrain traversing at all speeds. Unique to this 8in system is Fabtech's extended length Track Bar to address the hyper sensitive steering box of the late model Super Duty. Fabtech is the only manufacturer with this exclusive system that offers proper steering performance. Fabtech's extended length Track Bar is 4in longer than stock and is offset to the driver side with a stout 1/4in thick steel mounting bracket. This design helps keep the Track Bar and Draglink closer to parallel than the factory angles to reduce push in the steering. The Track Bar allows for full lock steering of 15.50 wide tires w/ 4 3/4in BS Wheels. Fabtech's 4 Link System has been proven in over 10 years of service in rugged commercial and military applications to ensure long life on your daily driven vehicle. High quality components with properly designed suspension geometry makes this Super Duty system the pinnacle of all suspensions. Comes with a free 5 year 60,000 mile powertrain warranty. For a complete understanding of this high quality system please see below features and benefits by component.

Attributes:

  • GTIN: 00674866107519
  • Brand Name: Fabtech

Extended Information:

  • Country of Origin: United States
  • Emissions : Released
  • Life Cycle Status: Available To Order

Packing Information:

  • Quantity of Each: 1
  • Package UOM: EA
  • Dimension: 43.5 x 42.62 x 12.5 inches
  • Weight: 360.8 lb
