• Fabtech 8in Performance System w/ DeLoss Shocks | GM C/K2500HD / C/K3500 Non Dually (01-06) (K1015DL)
  • Fabtech 8in Performance System w/ DeLoss Shocks | GM C/K2500HD / C/K3500 Non Dually (01-06) (K1015DL)
1 2

Fabtech 8in Perf System w/ DeLoss Shocks | GM C/K2500HD / C/K3500 (K1015DL)

Fabtech 8in Perf System w/ DeLoss Shocks | GM C/K2500HD / C/K3500 (K1015DL)

K1015DL

Out of stock

$4,319.23 USD
$5,076.73 USD $4,319.23 USD
ADDITIONAL DISCOUNTS APPLIED AT CHECKOUT Sold out

The Fabtech 8in Performance Suspension System with DeLoss Shocks is a high-performance lift kit designed for heavy-duty GM C/K2500HD and C/K3500 trucks. This system achieves a true 8-inch lift through a combination of one-piece cast drop-down steering knuckles, heavy-duty 1/4-inch thick high arched lower control arm crossmembers, and tubular upper control arms. Built with durable materials, it enhances ground clearance and off-road capability while maintaining excellent ride quality. The inclusion of DeLoss shocks ensures optimal damping performance, providing a smooth yet controlled ride even in demanding conditions. This suspension system is engineered to support 37-inch tall tires, making it ideal for off-road adventures and heavy-duty applications.

Designed for 2001–2010 GM C/K2500HD and C/K3500 models, this lift kit is a direct bolt-on upgrade that does not require modifications to torsion bars. It is suitable for off-road, trail, and heavy-duty use, offering increased ground clearance and improved handling. The kit includes all necessary components for installation, ensuring a straightforward upgrade process. Compatible with trucks equipped with the specified chassis and engine configurations, this system provides a reliable, high-performance solution for those seeking significant lift and enhanced off-road capability on their GM trucks.

Overview

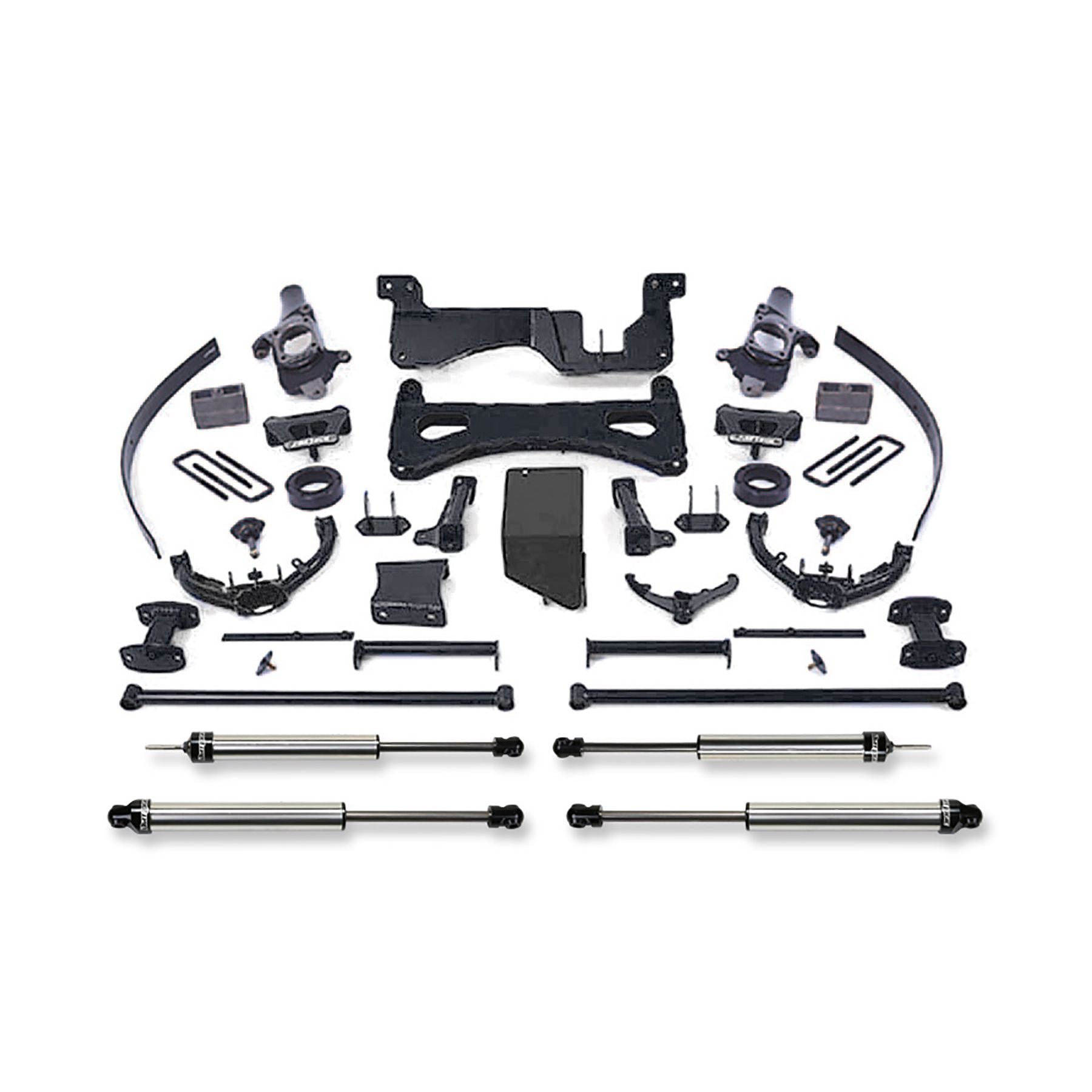

The 8in Performance Suspension System is accomplished via one-piece cast drop down steering knuckles attaching to heavy-duty 1/4in thick, high arched lower control arm crossmembers with tubular upper control arms. Fabtech's combination of steering knuckle, high arched crossmembers and upper control arms provides an excellent ride quality with high ground clearance. This system will provide a true 8 inches of lift without adjustment to the torsion bars allowing the use of 37in tall tires. The front differential is properly relocated to eliminate front driveshaft vibration on 2001-06 vehicles with the stock driveshaft. On late model 2007-08 vehicles with Magna 1625 transfer cases the system requires the use of a CV front driveshaft to address high speed 4WD use. New tubular upper control arms fit into the stock frame pockets using urethane bushings. Upper control arms include double shock mounting tabs for integration with Fabtech's optional front dual shock hoop system. The front suspension is completed with an differential skid plate, tubular crossmember supports and impact struts while the torsion bar drop down brackets properly align the torsion bars to the relocated stock lower control arms. The rear suspension is lifted using a 4'' block kit with 2in add a leafs. The system is completed with rear bump stop brackets and a rear driveshaft carrier bearing drop bracket. Includes front and rear 2.25 Dirt Logic Stainless Steel shocks.

Attributes:

  • GTIN: 00674866095601
  • Brand Name: Fabtech

Extended Information:

  • Country of Origin: United States
  • Emissions : Released
  • Life Cycle Status: Available To Order

Packing Information:

  • Quantity of Each: 1
  • Package UOM: EA
  • Dimension: 45.5 x 50.52 x 22 inches
  • Weight: 371.3 lb
