Fabtech 8in Perf System w/ Dual Rate Shocks | GM C/K2500HD / C/K3500 (07-08) (K1030DL)

Fabtech 8in Perf System w/ Dual Rate Shocks | GM C/K2500HD / C/K3500 (07-08) (K1030DL)

K1030DL

Out of stock

$4,288.55 USD
$5,040.66 USD $4,288.55 USD
ADDITIONAL DISCOUNTS APPLIED AT CHECKOUT Sold out

The Fabtech 8-inch Performance Suspension System is a comprehensive lift kit designed for 2007-2008 GM C/K2500HD and C/K3500 trucks. It features a one-piece cast drop-down steering knuckle, heavy-duty 1/4-inch thick high arched lower control arm crossmembers, and tubular upper control arms, all engineered to deliver a true 8-inch lift. This setup enhances ground clearance and off-road capability while maintaining ride quality. The system allows for the installation of 37-inch tall tires without torsion bar adjustments, making it ideal for aggressive off-road use and improved vehicle stance. Constructed with durable materials, the components are designed to withstand demanding conditions and provide long-lasting performance.

This lift kit is specifically engineered for 2007-2008 GM C/K2500HD and C/K3500 models, offering a direct bolt-on upgrade that does not require torsion bar adjustments. It is suitable for off-road enthusiasts, truck owners seeking increased ground clearance, and those looking to enhance their vehicle’s appearance and capability. The kit includes the necessary drop-down steering knuckles, high arched crossmembers, and upper control arms, ensuring a straightforward installation process. Designed for off-road and heavy-duty applications, this system provides a reliable, high-performance lift solution for capable trucks.

Overview

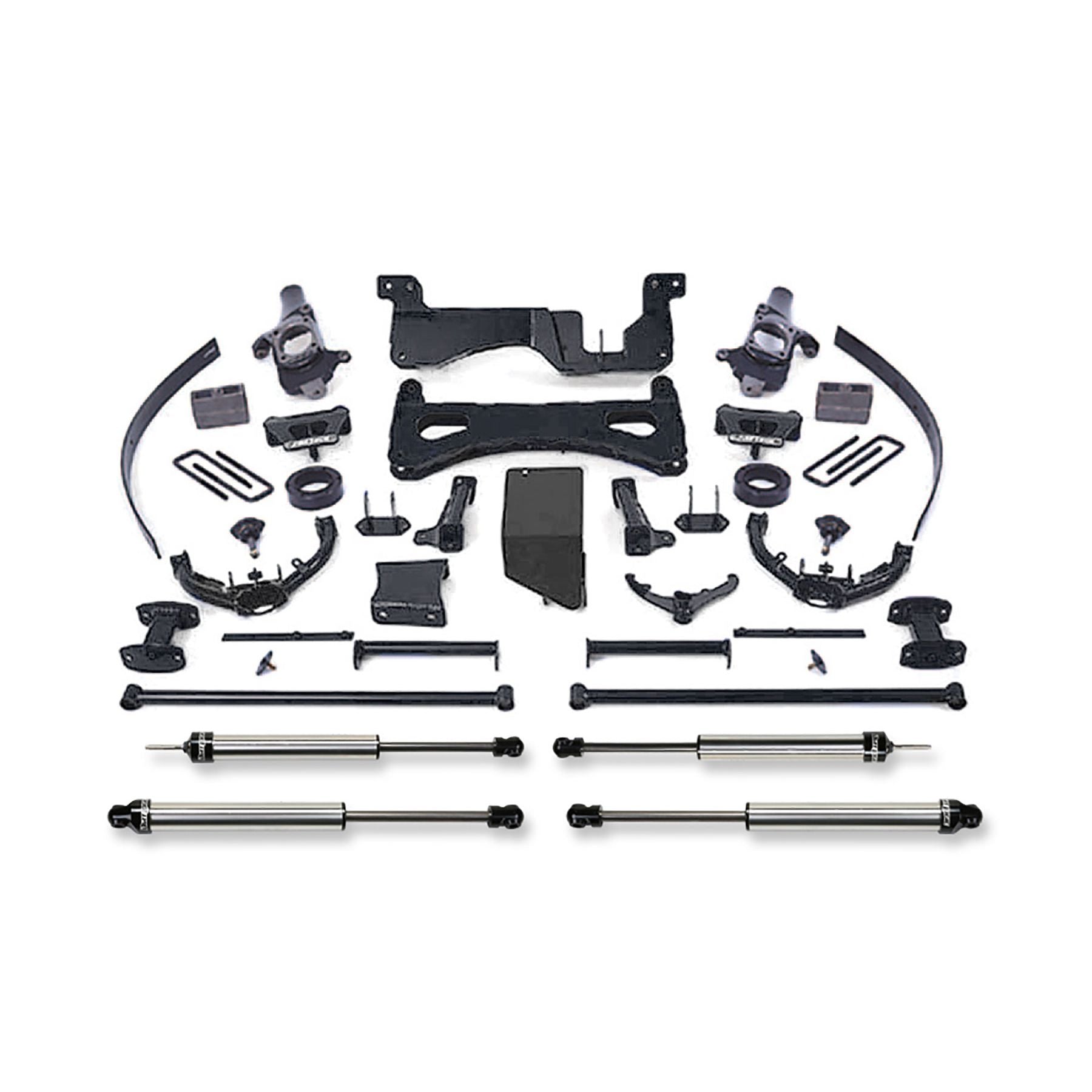

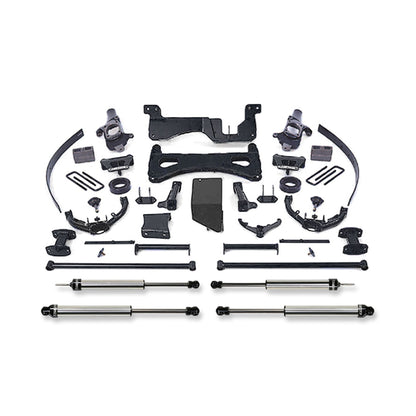

The 8'' Performance Suspension System is accomplished via one-piece cast drop down steering knuckles attaching to heavy-duty 1/4'' thick, high arched lower control arm crossmembers with tubular upper control arms. Fabtech's combination of steering knuckle, high arched crossmembers and upper control arms provides an excellent ride quality with high ground clearance. This system will provide a true 8 inches of lift without adjustment to the torsion bars allowing the use of 37'' tall tires. The front differential is properly relocated to eliminate front driveshaft vibration on 2001-06 vehicles with the stock driveshaft. On late model 2007-08 vehicles with Magna 1625 transfer cases the system requires the use of a CV front driveshaft to address high speed 4WD use. New tubular upper control arms fit into the stock frame pockets using urethane bushings. Upper control arms include double shock mounting tabs for integration with Fabtech's optional front dual shock hoop system. The front suspension is completed with an differential skid plate, tubular crossmember supports and impact struts while the torsion bar drop down brackets properly align the torsion bars to the relocated stock lower control arms. The rear suspension is lifted using a 4'' block kit with 2'' add a leafs. The system is completed with rear bump stop brackets and a rear driveshaft carrier bearing drop bracket. Includes front and rear 2.25 Dirt Logic Stainless Steel shocks.

Attributes:

  • GTIN: 00674866095663
  • Brand Name: Fabtech

Extended Information:

  • Country of Origin: United States
  • Emissions : Released
  • Life Cycle Status: Available To Order

Packing Information:

  • Quantity of Each: 1
  • Package UOM: EA
  • Dimension: 45.5 x 50.52 x 22 inches
  • Weight: 373.3 lb
