Fabtech 8in Perf System w/ Perf Shocks | GM C/K2500HD / C/K3500 (K1015)

Fabtech 8in Perf System w/ Perf Shocks | GM C/K2500HD / C/K3500 (K1015)

K1015

Out of stock

$3,360.83 USD
$3,950.21 USD $3,360.83 USD
ADDITIONAL DISCOUNTS APPLIED AT CHECKOUT Sold out

The Fabtech 8-inch Performance Suspension System for GM C/K2500HD and C/K3500 trucks is a comprehensive lift kit designed to enhance off-road capability and ground clearance. This system features one-piece cast drop-down steering knuckles, heavy-duty 1/4-inch thick high arched lower control arm crossmembers, and tubular upper control arms. Built with durable materials, it provides a true 8-inch lift without the need for torsion bar adjustments, enabling the use of 37-inch tall tires. The combination of components ensures improved ride quality, stability, and durability for demanding off-road conditions while maintaining a smooth on-road experience.

This suspension system is specifically engineered for 2001-2010 GM C/K2500HD and C/K3500 models, offering a direct bolt-on upgrade that does not require modifications to torsion bars. It is ideal for off-road enthusiasts, trail riders, and those seeking increased ground clearance for rugged terrain. The kit includes all necessary components for installation, providing a comprehensive solution for lifting these trucks. Designed for off-road and heavy-duty use, this system enhances vehicle performance and capability without compromising ride comfort or reliability.

Overview

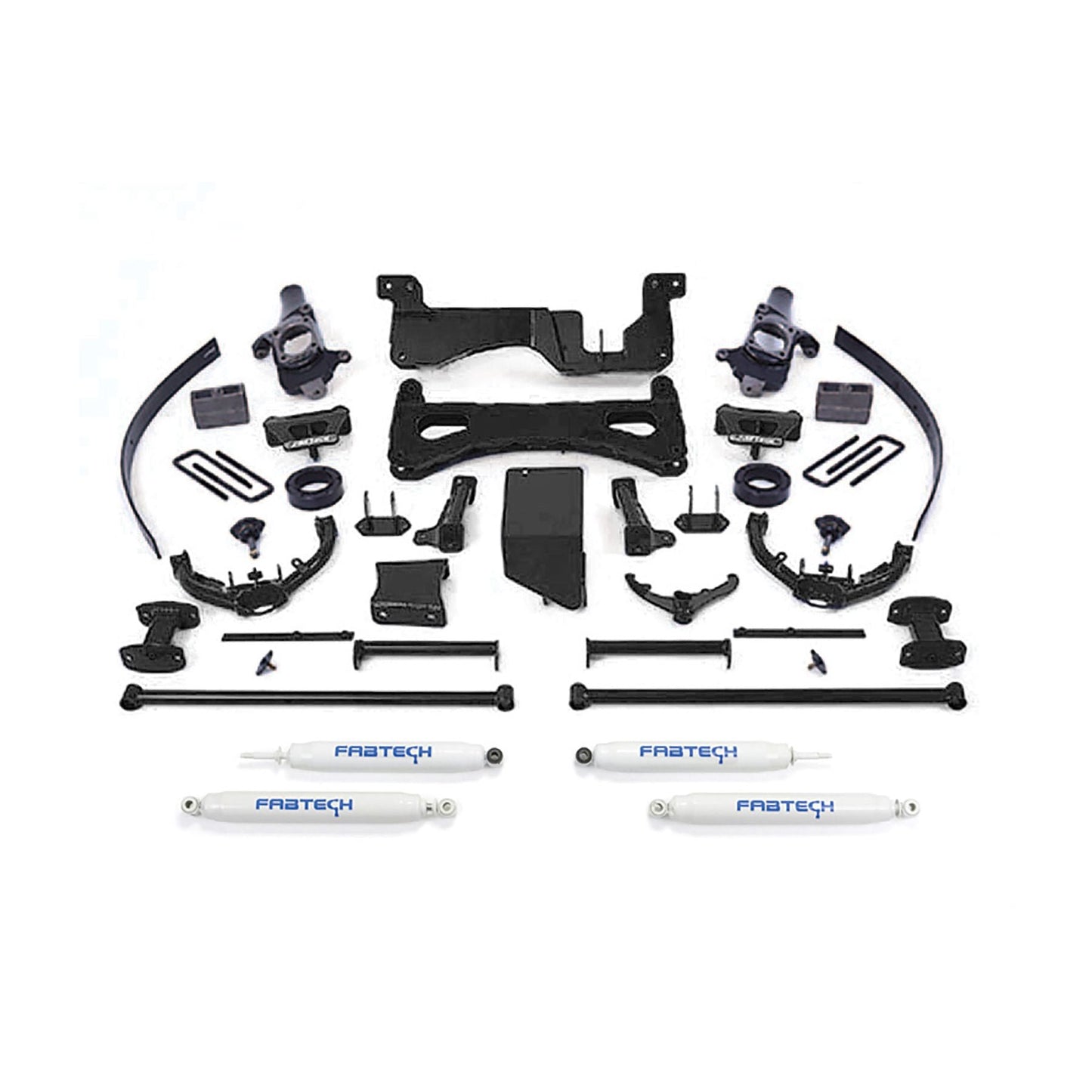

The 8in Performance Suspension System is accomplished via one-piece cast drop down steering knuckles attaching to heavy-duty 1/4in thick, high arched lower control arm crossmembers with tubular upper control arms. Fabtech's combination of steering knuckle, high arched crossmembers and upper control arms provides an excellent ride quality with high ground clearance. This system will provide a true 8 inches of lift without adjustment to the torsion bars allowing the use of 37in tall tires. The front differential is properly relocated to eliminate front driveshaft vibration on 2001-06 vehicles with the stock driveshaft. On late model 2007-08 vehicles with Magna 1625 transfer cases the system requires the use of a CV front driveshaft to address high speed 4WD use. New tubular upper control arms fit into the stock frame pockets using urethane bushings. Upper control arms include double shock mounting tabs for integration with Fabtech's optional front dual shock hoop system. The front suspension is completed with an differential skid plate, tubular crossmember supports and impact struts while the torsion bar drop down brackets properly align the torsion bars to the relocated stock lower control arms. The rear suspension is lifted using a 4'' block kit with 2'' add a leafs. The system is completed with rear bump stop brackets and a rear driveshaft carrier bearing drop bracket.

Attributes:

  • GTIN: 00674866023437
  • Brand Name: Fabtech

Extended Information:

  • Country of Origin: United States
  • Emissions : Released
  • Life Cycle Status: Available To Order

Packing Information:

  • Quantity of Each: 1
  • Package UOM: EA
  • Dimension: 45.5 x 45.04 x 22 inches
  • Weight: 356.9 lb
