Fabtech 8in Perf System w/ Perf Shocks | GM C/K2500HD / C/K3500 (07-08) (K1030)

Fabtech 8in Perf System w/ Perf Shocks | GM C/K2500HD / C/K3500 (07-08) (K1030)

K1030

Out of stock

$3,330.15 USD
$3,914.14 USD $3,330.15 USD
ADDITIONAL DISCOUNTS APPLIED AT CHECKOUT Sold out

The Fabtech 8-inch Performance Suspension System is a comprehensive lift kit designed for 2007-2008 GM C/K2500HD and C/K3500 trucks. It features a combination of one-piece cast drop-down steering knuckles, heavy-duty 1/4-inch thick high arched lower control arm crossmembers, and tubular upper control arms. This setup provides a significant lift while maintaining excellent ride quality and durability. The system is engineered to deliver a true 8-inch lift without the need for torsion bar adjustments, enabling the use of 37-inch tall tires for enhanced off-road capability and ground clearance. Constructed with high-quality materials, this suspension system ensures strength and longevity under demanding conditions.

Designed specifically for 2007-2008 GM heavy-duty trucks, this lift kit offers a bolt-on installation that serves as a direct replacement for stock components. It is ideal for off-road enthusiasts, truck owners seeking increased ground clearance, and those wanting a more aggressive stance. The kit includes all necessary components for a complete upgrade, allowing for improved performance on rugged terrain or on-road applications. Suitable for both street and off-road use, this system enhances vehicle capability while maintaining ride comfort and stability.

Overview

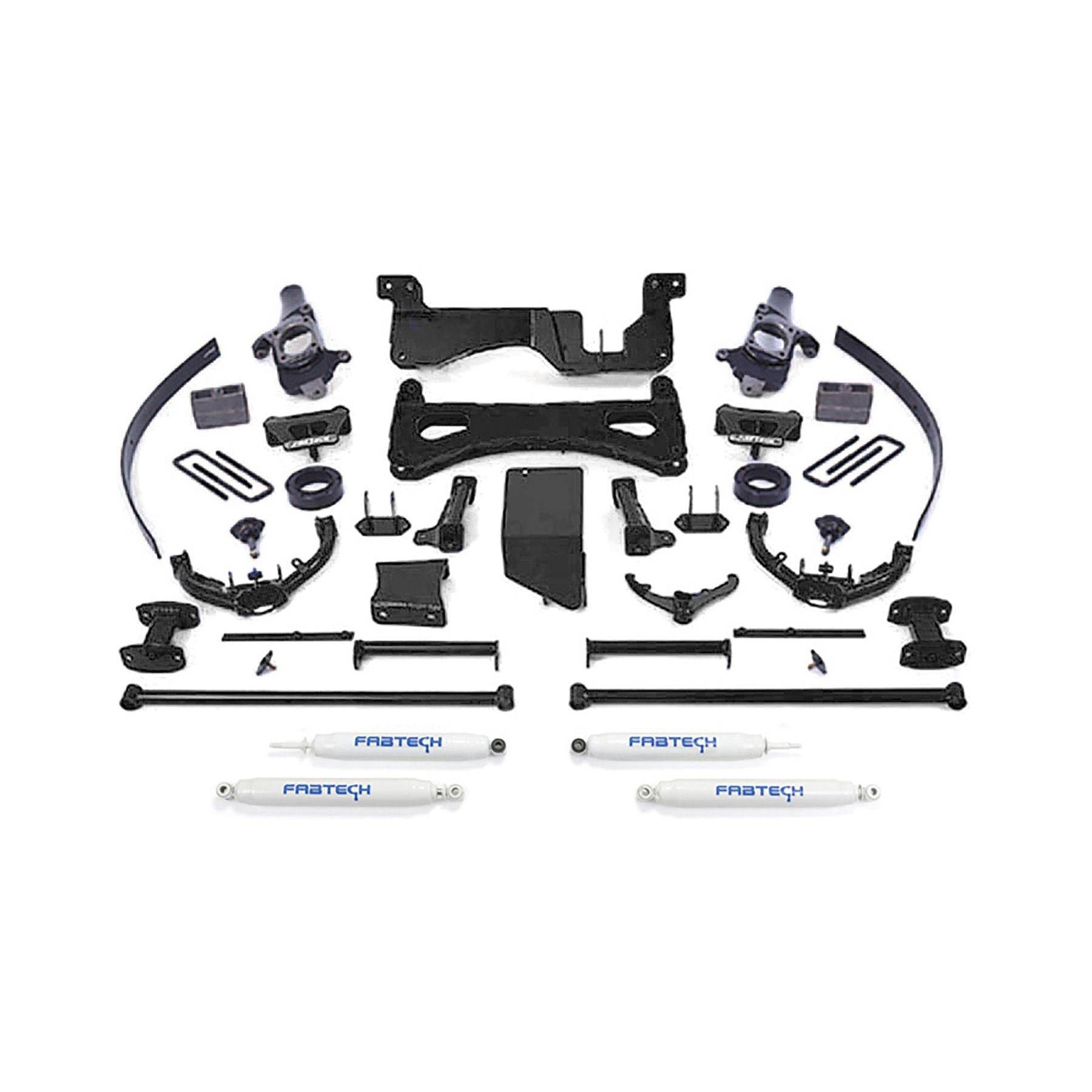

The 8'' Performance Suspension System is accomplished via one-piece cast drop down steering knuckles attaching to heavy-duty 1/4'' thick, high arched lower control arm crossmembers with tubular upper control arms. Fabtech's combination of steering knuckle, high arched crossmembers and upper control arms provides an excellent ride quality with high ground clearance. This system will provide a true 8 inches of lift without adjustment to the torsion bars allowing the use of 37'' tall tires. The front differential is properly relocated to eliminate front driveshaft vibration on 2001-06 vehicles with the stock driveshaft. On late model 2007-08 vehicles with Magna 1625 transfer cases the system requires the use of a CV front driveshaft to address high speed 4WD use. New tubular upper control arms fit into the stock frame pockets using urethane bushings. Upper control arms include double shock mounting tabs for integration with Fabtech's optional front dual shock hoop system. The front suspension is completed with an differential skid plate, tubular crossmember supports and impact struts while the torsion bar drop down brackets properly align the torsion bars to the relocated stock lower control arms. The rear suspension is lifted using a 4'' block kit with 2'' add a leafs. The system is completed with rear bump stop brackets and a rear driveshaft carrier bearing drop bracket.

Attributes:

  • GTIN: 00674866023550
  • Brand Name: Fabtech

Extended Information:

  • Country of Origin: United States
  • Emissions : Released
  • Life Cycle Status: Available To Order

Packing Information:

  • Quantity of Each: 1
  • Package UOM: EA
  • Dimension: 45.5 x 45.04 x 22 inches
  • Weight: 358.9 lb
