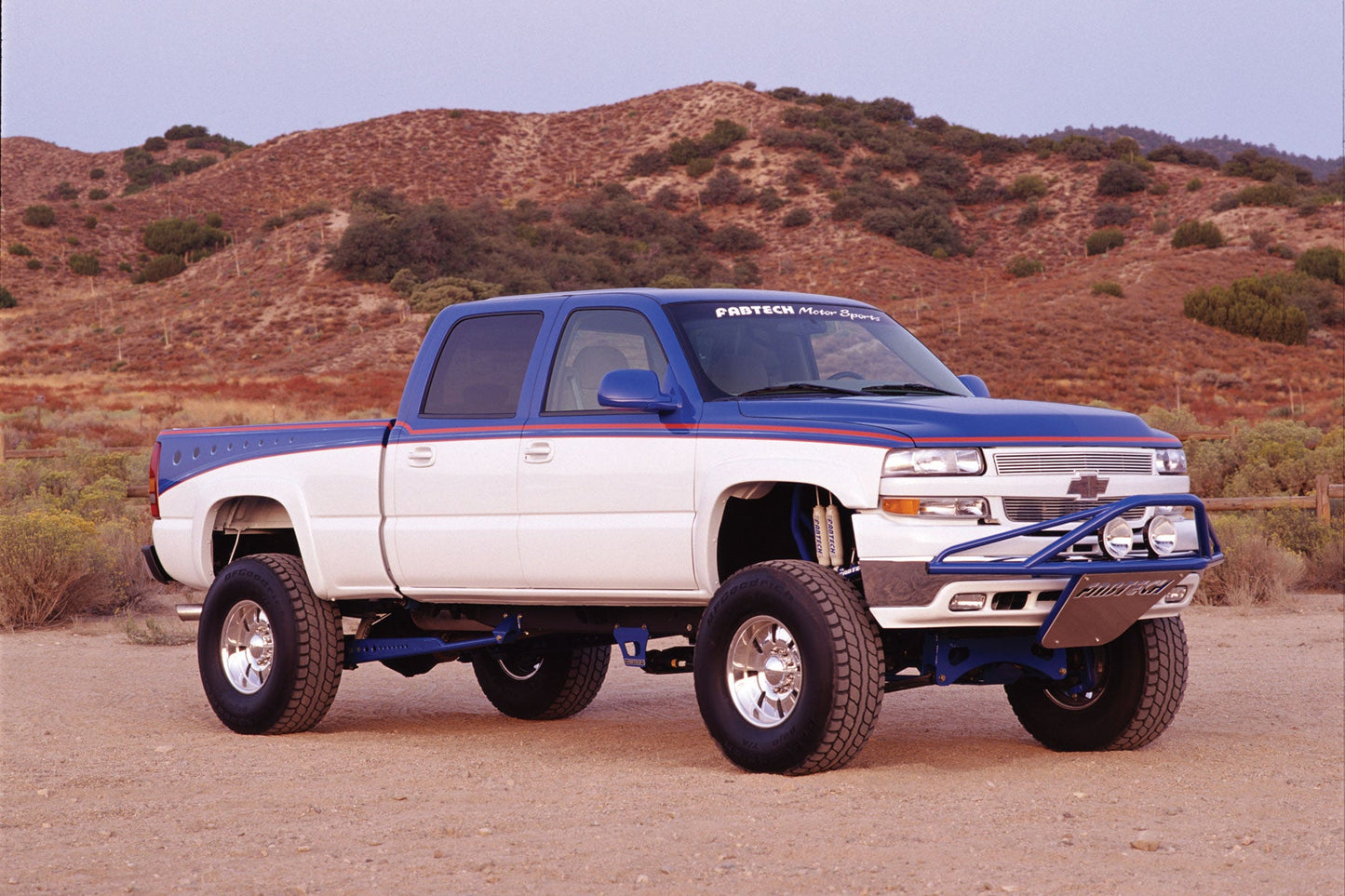

Fabtech 8in Performance System w/ Stealth | GM C/K2500HD / C/K3500 Non Dually (01-06) (K1015M)

Fabtech 8in Performance System w/ Stealth | GM C/K2500HD / C/K3500 Non Dually (01-06) (K1015M)

K1015M

Out of stock

$3,503.05 USD
$4,117.37 USD $3,503.05 USD
ADDITIONAL DISCOUNTS APPLIED AT CHECKOUT Sold out

The Fabtech 8in Performance System with Stealth is a comprehensive suspension upgrade designed for GM C/K2500HD and C/K3500 models from 2001 to 2006. This system features a one-piece cast drop-down steering knuckle, heavy-duty 1/4-inch thick high arched lower control arm crossmembers, and tubular upper control arms. It provides a true 8-inch lift without torsion bar adjustments, enabling the use of 37-inch tall tires for enhanced off-road capability and ground clearance. The combination of high-quality materials and precise engineering ensures improved ride quality, durability, and performance in demanding conditions, making it suitable for off-road enthusiasts and those seeking a significant lift upgrade.

This suspension system is specifically engineered for fitment on 2001-2006 GM C/K2500HD and C/K3500 trucks, excluding dually models. It is a direct bolt-on replacement that maintains proper alignment and handling characteristics. The kit is intended for off-road, trail, or aggressive street use, providing increased ground clearance and tire size flexibility. Installation involves replacing existing suspension components with the included heavy-duty knuckles, crossmembers, and control arms. This system is ideal for owners looking to enhance their truck’s off-road performance while maintaining a reliable and high-quality ride.

Overview

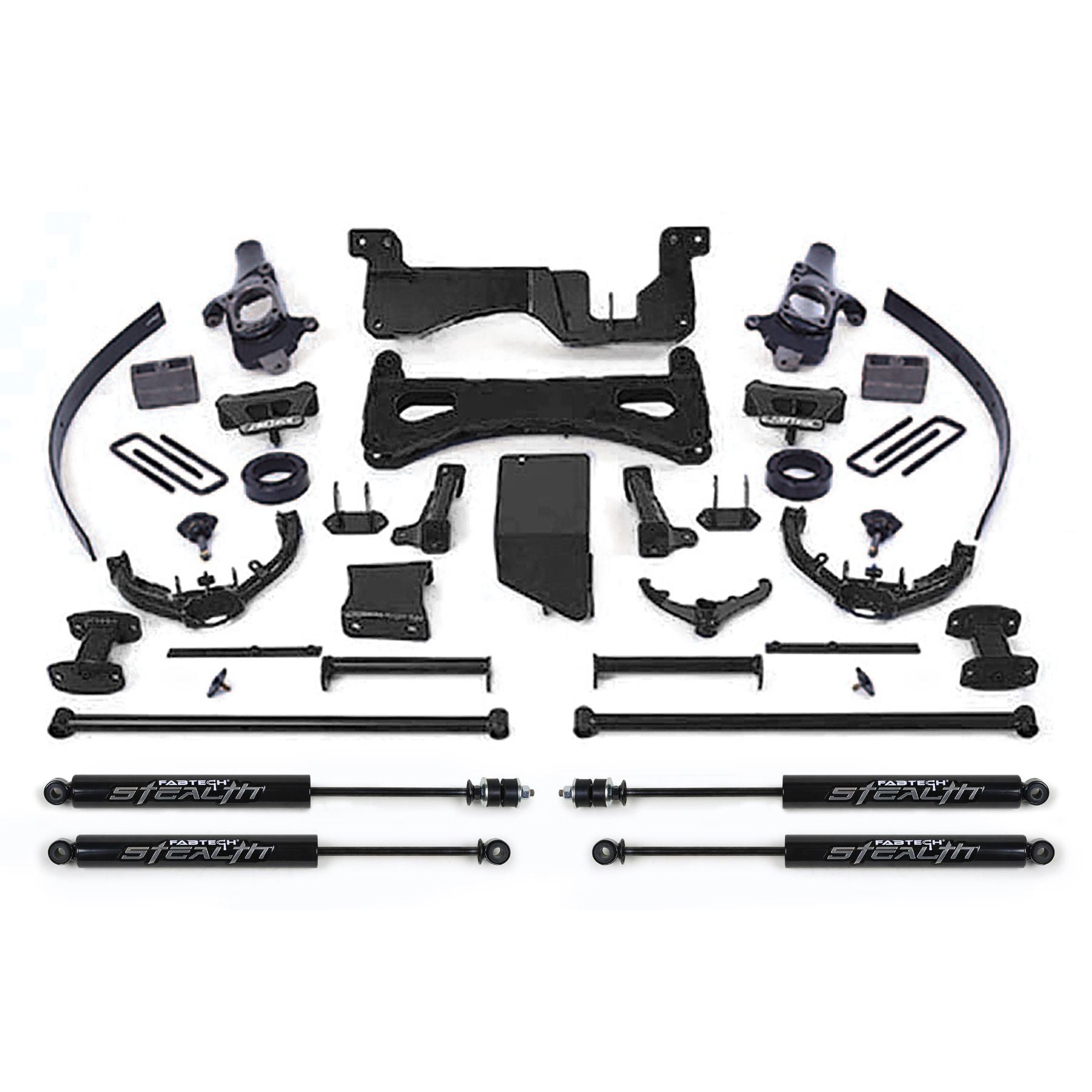

The 8in Performance Suspension System is accomplished via one-piece cast drop down steering knuckles attaching to heavy-duty 1/4in thick, high arched lower control arm crossmembers with tubular upper control arms. Fabtech's combination of steering knuckle, high arched crossmembers and upper control arms provides an excellent ride quality with high ground clearance. This system will provide a true 8 inches of lift without adjustment to the torsion bars allowing the use of 37in tall tires. The front differential is properly relocated to eliminate front driveshaft vibration on 2001-06 vehicles with the stock driveshaft. On late model 2007-08 vehicles with Magna 1625 transfer cases the system requires the use of a CV front driveshaft to address high speed 4WD use. New tubular upper control arms fit into the stock frame pockets using urethane bushings. Upper control arms include double shock mounting tabs for integration with Fabtech's optional front dual shock hoop system. The front suspension is completed with an differential skid plate, tubular crossmember supports and impact struts while the torsion bar drop down brackets properly align the torsion bars to the relocated stock lower control arms. The rear suspension is lifted using a 4'' block kit with 2'' add a leafs. The system is completed with rear bump stop brackets and a rear driveshaft carrier bearing drop bracket.

Attributes:

  • GTIN: 00674866091221
  • Brand Name: Fabtech

Extended Information:

  • Country of Origin: United States
  • Emissions : Released
  • Life Cycle Status: Available To Order

Packing Information:

  • Quantity of Each: 1
  • Package UOM: EA
  • Dimension: 45.5 x 45.04 x 22 inches
  • Weight: 356.3 lb
