Fabtech Radius Arm System

2008–2016 Ford F250 4WD with Factory Overload

Part #: K2124

Overview

The Fabtech 8" Radius Arm System is a comprehensive suspension upgrade designed specifically for Ford F250 models from 2008 to 2016 with 4WD and factory overloads. This system provides a significant lift, improved off-road capability, and enhanced stability, making it an excellent choice for enthusiasts seeking to elevate their truck's performance and appearance. Whether you're tackling rugged trails or enhancing your vehicle's towing capacity, this kit delivers reliable, high-quality components to support your adventures.

Built with durability and precision in mind, the Fabtech Radius Arm System combines heavy-duty materials and innovative design features to ensure a long-lasting, reliable upgrade. It is ideal for off-road enthusiasts, work truck owners, or anyone looking to improve their F250's ground clearance and handling characteristics. The system maintains proper alignment and steering geometry, ensuring your vehicle remains predictable and safe during demanding driving conditions.

Key Features

The Fabtech Radius Arm System incorporates several advanced features to optimize performance and durability:

• Full tubular radius arms with dimple die side plates provide increased strength and resistance to bending under heavy loads and off-road stresses.
• An adjustable alignment cam at the axle allows for precise caster adjustment, ensuring optimal steering response and tire wear.
• 8-inch front spring lift is achieved using high-quality replacement coil springs designed to support the added height while maintaining ride quality.
• A Trac Bar relocation bracket realigns the axle for proper tracking and stability, especially important when lifting the vehicle.
• Included components such as a Pitman arm, sway bar drops, rear add-a-leafs, and a block & U-bolt kit complete the system, providing a balanced lift and improved suspension articulation.
• Manufactured in the United States, ensuring quality craftsmanship and adherence to strict manufacturing standards.
• Designed to work seamlessly with factory overloads, preserving load-carrying capacity and ride comfort.

Construction & Design

The Fabtech Radius Arm System features heavy-duty, fully tubular radius arms constructed from high-strength steel, reinforced with dimple die side plates for added durability. The adjustable cam at the axle allows for fine-tuning caster angles, which is critical for maintaining proper steering geometry after lifting. The 8-inch coil springs are engineered to provide a balanced lift, supporting increased ground clearance without sacrificing ride quality or load capacity.

The inclusion of a Trac Bar relocation bracket ensures the axle remains centered and stable during off-road excursions and spirited driving. The rear add-a-leafs and block & U-bolt kit are designed to complement the front lift, providing a level stance and improved suspension travel. All components are TIG-welded and manufactured to exact specifications, ensuring a precise fit and long-lasting performance.

Performance & Sound

This suspension system is engineered to enhance your Ford F250's off-road capabilities, providing increased ground clearance, improved wheel articulation, and better stability on uneven terrain. The upgraded components help support heavier loads and towing, making your truck more versatile for work or recreation. While primarily focused on performance and durability, the system also maintains a factory-like ride quality, with no excessive noise or harshness introduced by the lift.

Installation & Fitment

The Fabtech Radius Arm System is designed as a bolt-on upgrade, allowing for straightforward installation with common tools. The kit uses factory mounting points and requires no cutting or drilling, making it accessible for experienced DIY enthusiasts and professional installers alike. Some alignment adjustments may be necessary after installation to ensure optimal handling and tire wear. No additional tuning or modifications are typically required, and the system is compatible with existing factory components.

• Complete bolt-on installation with detailed instructions included
• No cutting, drilling, or welding required in most cases
• Designed to work with factory overloads for load-carrying capacity preservation

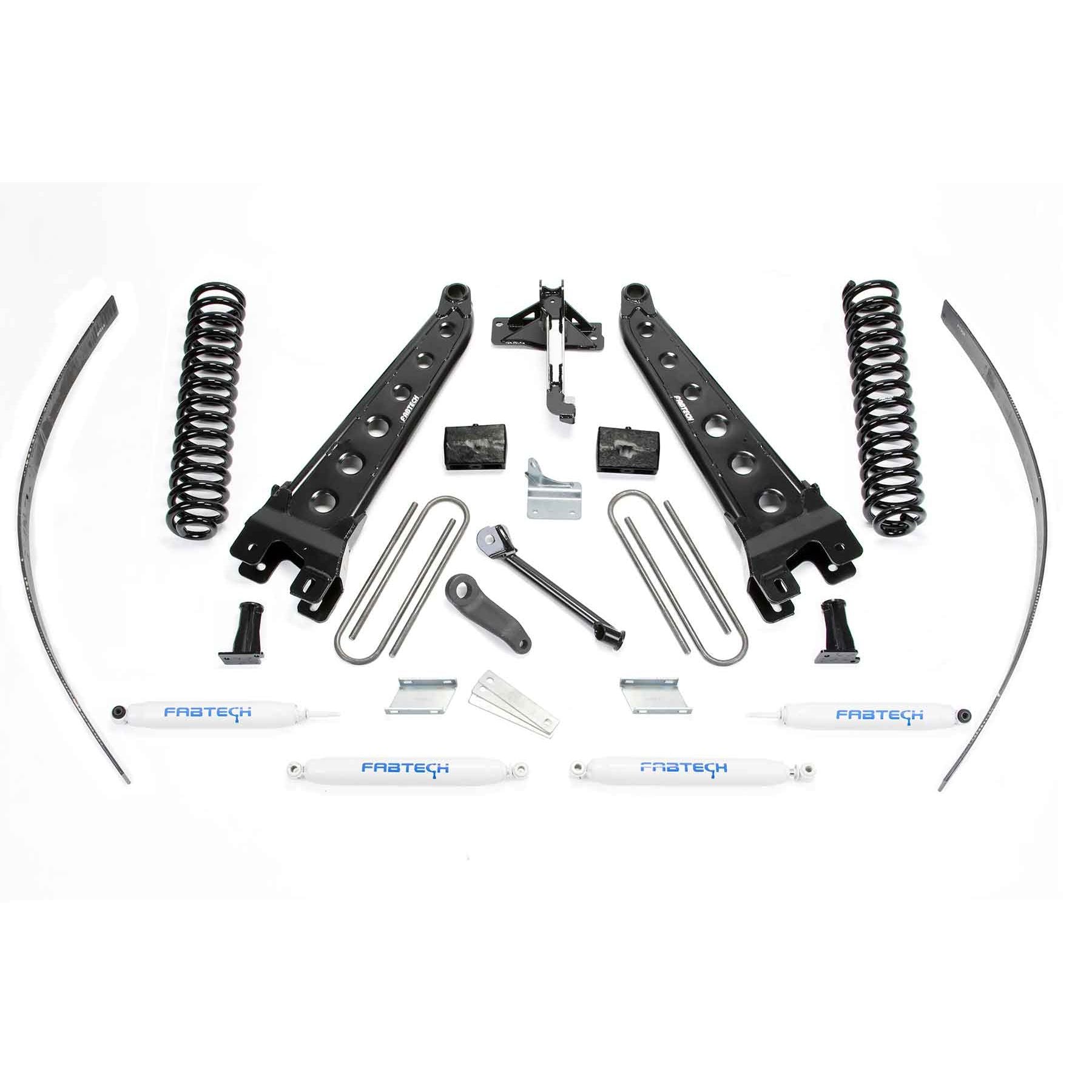

What's Included

• Heavy-duty tubular radius arms with dimple die side plates
• Adjustable caster cam at the axle
• 8-inch replacement coil springs
• Trac Bar relocation bracket
• Pitman arm
• Sway bar drop brackets
• Rear add-a-leafs
• Block & U-bolt kit
• All necessary hardware and mounting components
• Installation instructions

Ideal For

This suspension lift system is perfect for off-road enthusiasts, truck owners who need additional ground clearance for rugged terrain, and those looking to improve their vehicle's towing and payload capacity. It provides a reliable, high-quality upgrade that enhances both the appearance and performance of your Ford F250.

Emissions Note

This product is designed to meet or exceed industry standards for durability and performance. Please verify local regulations regarding emissions compliance if applicable. The system is intended for off-road use and may not be street legal in all areas.
