Fabtech Rad Arm System with DLSS 4.0 Coilover & Rear DLSS

2008–2010 Ford F250 4WD / Without Factory Overload

Part #: K2034DL

Overview

The Fabtech 8-inch Rad Arm System with Dirt Logic 4.0 Coilover and Rear DLSS is a comprehensive suspension upgrade designed specifically for Ford F250 4WD trucks from 2008 to 2010 that do not come equipped with factory overloads. This system is engineered to deliver exceptional off-road performance, improved ride quality, and increased ground clearance, making it ideal for enthusiasts who demand durability and reliability in demanding terrains.

Whether you're tackling rugged trails, hauling heavy loads, or seeking enhanced stability and handling on and off the road, this kit provides the necessary upgrades to transform your truck's capabilities. The system combines advanced components with proven engineering to support aggressive driving while maintaining a smooth and controlled ride.

Key Features

The Fabtech Rad Arm System is built with high-quality materials and innovative design features that set it apart from standard suspension setups. Key features include:

• Full tubular radius arms reinforced with dimple die side plates for maximum strength and durability, ensuring longevity under heavy use and challenging conditions.
• Adjustable alignment cam at the axle, allowing precise caster adjustments to optimize steering response and tire wear for improved handling and stability.
• Front spring lift integrated with Dirt Logic 4.0 Stainless Steel Coilover Shock conversion, providing superior damping performance and ride comfort both on and off-road.
• Relocation bracket for the trac bar, ensuring proper axle positioning and tracking after lift installation.
• Heavy-duty Pitman arm and sway bar drop brackets to maintain factory steering geometry and handling characteristics.
• Rear add-a-leafs and block & U-bolt kit to achieve the desired lift height while supporting heavy loads and maintaining ride quality.
• Includes rear 2.25-inch Dirt Logic Stainless Steel shocks, designed for durability and consistent performance in rough terrain.

Construction & Design

The Rad Arm System features a robust tubular construction that provides exceptional strength and resistance to flex and fatigue. The use of dimple die side plates enhances structural integrity, while the stainless steel coilovers offer corrosion resistance and long-lasting performance. The system's components are engineered with precision CAD development and TIG welding, ensuring a perfect fit and reliable operation. The design maintains factory steering geometry and incorporates necessary brackets and hardware for a straightforward installation process.

Performance & Sound

With this suspension upgrade, your Ford F250 will experience improved off-road capability, including increased ground clearance, better wheel articulation, and enhanced stability on uneven terrain. The Dirt Logic 4.0 coilovers provide superior damping control, resulting in a smoother ride and reduced body roll during spirited driving or heavy-duty hauling. The system also contributes to a more confident driving experience, whether on rugged trails or paved roads.

Installation & Fitment

The Fabtech Rad Arm System is designed as a bolt-on upgrade, utilizing existing factory mounting points and hardware. No cutting, drilling, or extensive modifications are required for installation, making it accessible for experienced DIY enthusiasts and professional installers alike. The system includes all necessary brackets, hardware, and shocks for a complete upgrade, ensuring a hassle-free installation process.

• Complete bolt-on system with detailed instructions included
• Maintains factory steering and suspension geometry for optimal handling
• Supports aggressive off-road use while providing a comfortable on-road ride

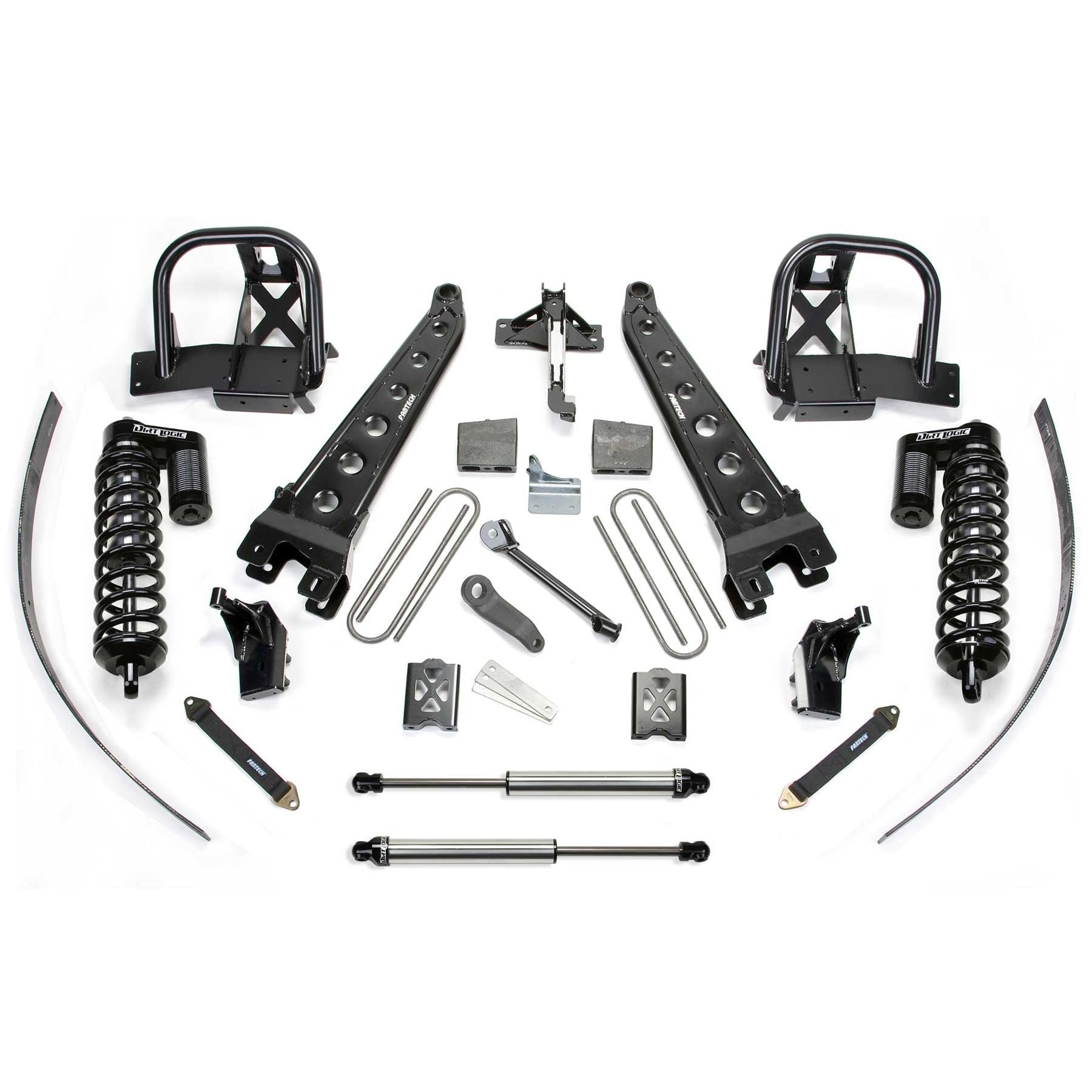

What's Included

• Full set of tubular radius arms with dimple die side plates
• Front Dirt Logic 4.0 Stainless Steel Coilover Shocks
• Trac bar relocation bracket
• Pitman arm and sway bar drop brackets
• Rear add-a-leafs and block & U-bolt kit
• Rear Dirt Logic 2.25 Stainless Steel Shocks
• All necessary hardware and installation instructions

Ideal For

This suspension system is perfect for off-road enthusiasts, heavy-duty truck owners, and anyone looking to enhance their Ford F250's performance and ground clearance. It is especially suitable for those who frequently tackle rugged trails, need increased payload capacity, or want a reliable lift solution that maintains factory handling characteristics.

Emissions Note

This product is designed for off-road use and may not be legal for street use in all areas. Please check local regulations regarding emissions compliance and vehicle modifications before installation.
