| Year | Make | Model |
|---|---|---|
| 2011 - 2016 | Ford | F-250 Super Duty |
| 1999 - 2016 | Ford | F-350 Super Duty |
1
/
of
1

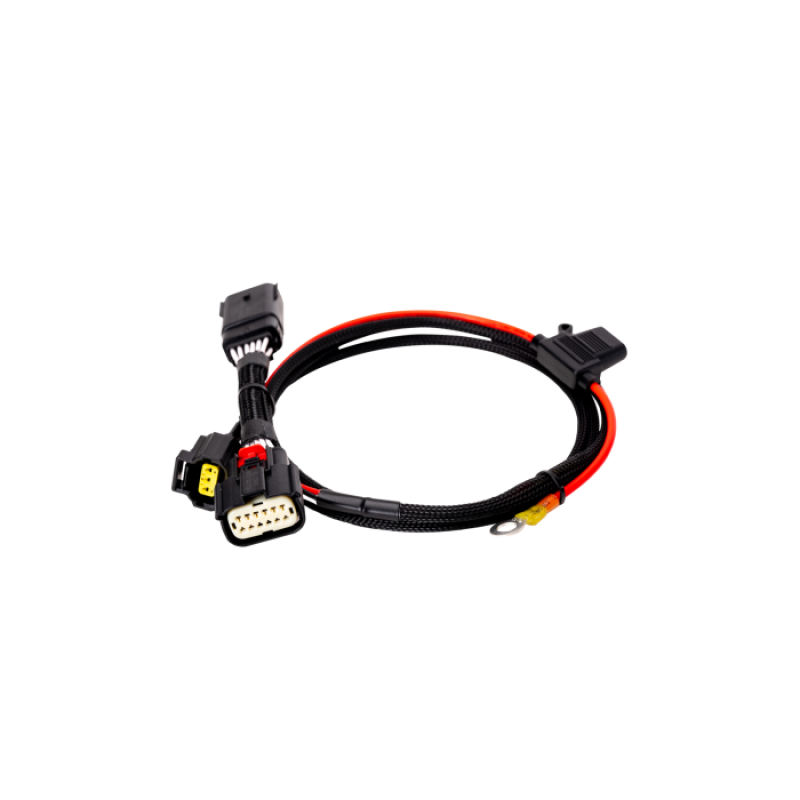

Fleece Performance 11-16 Ford F250-550 Powerstroke Charging Circuit Harness
Fleece Performance 11-16 Ford F250-550 Powerstroke Charging Circuit Harness
SKU:FPE-HAR-FMC-CCH-1116
In stock
Regular price
$125.99 USD
Regular price
$125.99 USD
Sale price
$125.99 USD
Unit price
/
per
Couldn't load pickup availability
â–¶ Vehicle Fitments
The Fleece Performance 11-16 Ford F250-550 Powerstroke Charging Circuit Harness is a direct replacement designed to address common charging circuit issues in 2011-2016 Ford F250, F350, F450, and F550 trucks equipped with the 6.7L Power Stroke engine. This harness eliminates the need for cutting or splicing, providing a simple drop-in solution to resolve intermittent or continuously illuminated battery warning lights on the dash. Manufactured in-house with fully automated wire cutting and terminal crimping, it ensures high-quality, durable replacement parts that restore proper charging system function and improve reliability. The harness specifically targets damaged, stressed, or broken sense wires in the OEM harness routed from the Powertrain Control Module (PCM) to the alternator, which often cause low voltage readings and warning lights.
This product is designed for use on 2011-2016 Ford F250, F350, F450, and F550 trucks with the 6.7L Power Stroke engine. It serves as a straightforward, bolt-on replacement for the factory harness, making installation quick and hassle-free. The harness is ideal for addressing charging circuit problems caused by wire damage due to routing, exposure, or lack of protection, which are common in the OEM setup. It is suitable for repair and maintenance applications, ensuring proper electrical connection and system performance. The kit includes the harness components necessary for a complete replacement, providing a reliable fix for trucks experiencing charging circuit issues.
Share
Overview
Overview
The Fleece Performance Charging Circuit Harness for 2011-2016 Ford 6.7L Power Stroke is a drop-in replacement with no cutting or splicing to fix the common problem of an intermittent or continuously illuminated battery lamp on the dash! Designed and produced in-house, our manufacturing process includes fully automated wire cutting and terminal crimping to ensure you get the highest quality replacement parts you need to get your truck back on the road quickly. Fits 2011-2016 Ford F250/350/450/550 with 6.7L Powerstroke. Problem Overview COMPLAINT: Charging circuit MIL illuminated intermittingly or continuously on the truck dash. CAUSE: Damaged, stressed, chaffed, or broken charging circuit sense wires in the OEM harness that are routed from the Powertrain Control Module (PCM) to the alternator resulting in an intermittent or continuously low voltage reading to the PCM. DESCRIPTION: Due to the routing, exposure, and general lack of protection on the small charging circuit sense wires that are routed from Powertrain Control Module (PCM) to the alternator it is common for wire damage to be experienced. The routing of the OE harness is cumbersome and extremely difficult to replace and diagnose. Images below show the routing location of the wires in the plastic channel located on the underside of the engine as well as exposed in sections between the channels.
