| Year | Make | Model | Engine |
|---|---|---|---|
| 2005-2023 | Toyota | Tacoma | 2.7L 2694CC l4 GAS DOHC Naturally Aspirated |
| 2016-2023 | Toyota | Tacoma | 3.5L 3456CC V6 GAS DOHC Naturally Aspirated |
| 2005-2015 | Toyota | Tacoma | 4.0L 3956CC 241Cu. In. V6 GAS DOHC Naturally Aspirated |
▶ Suspension Drop / Lift Rates
| Part Number | Lift/Lowered | Position | Item | Quantity |
|---|---|---|---|---|
| 883-26-007 | 0-1.5" Lift | Rear | Shock Absorber | 1 |
| 880-06-376 | 0-2" Lift | Front | Strut & Spring | 1 |
Fox 2.5 Factory Series Coilovers & Shocks w/ DSC Reservoirs Set - 2005-2023 Toyota Tacoma 4WD RWD
Fox 2.5 Factory Series Coilovers & Shocks w/ DSC Reservoirs Set - 2005-2023 Toyota Tacoma 4WD RWD
SKU:10548292714783_52692456767775
In stock
Couldn't load pickup availability
▶ Vehicle Fitments
▶ Suspension Drop / Lift Rates
| Part Number | Lift/Lowered | Position | Item | Quantity |
|---|---|---|---|---|
| 883-26-007 | 0-1.5" Lift | Rear | Shock Absorber | 1 |
| 880-06-376 | 0-2" Lift | Front | Strut & Spring | 1 |

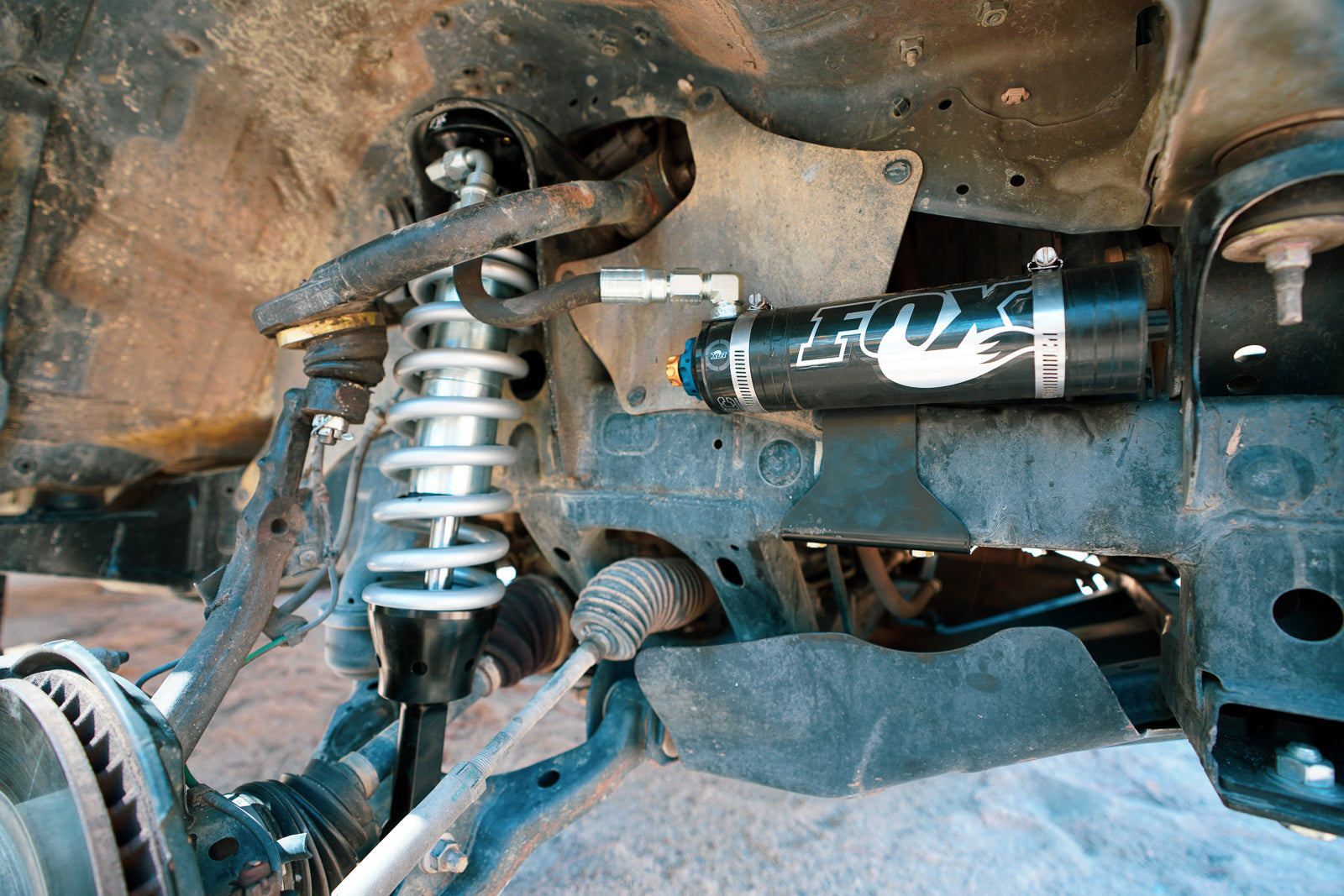

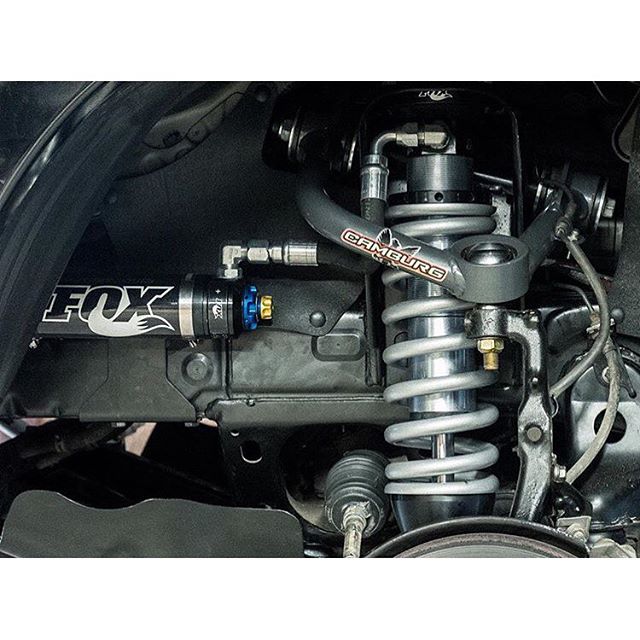

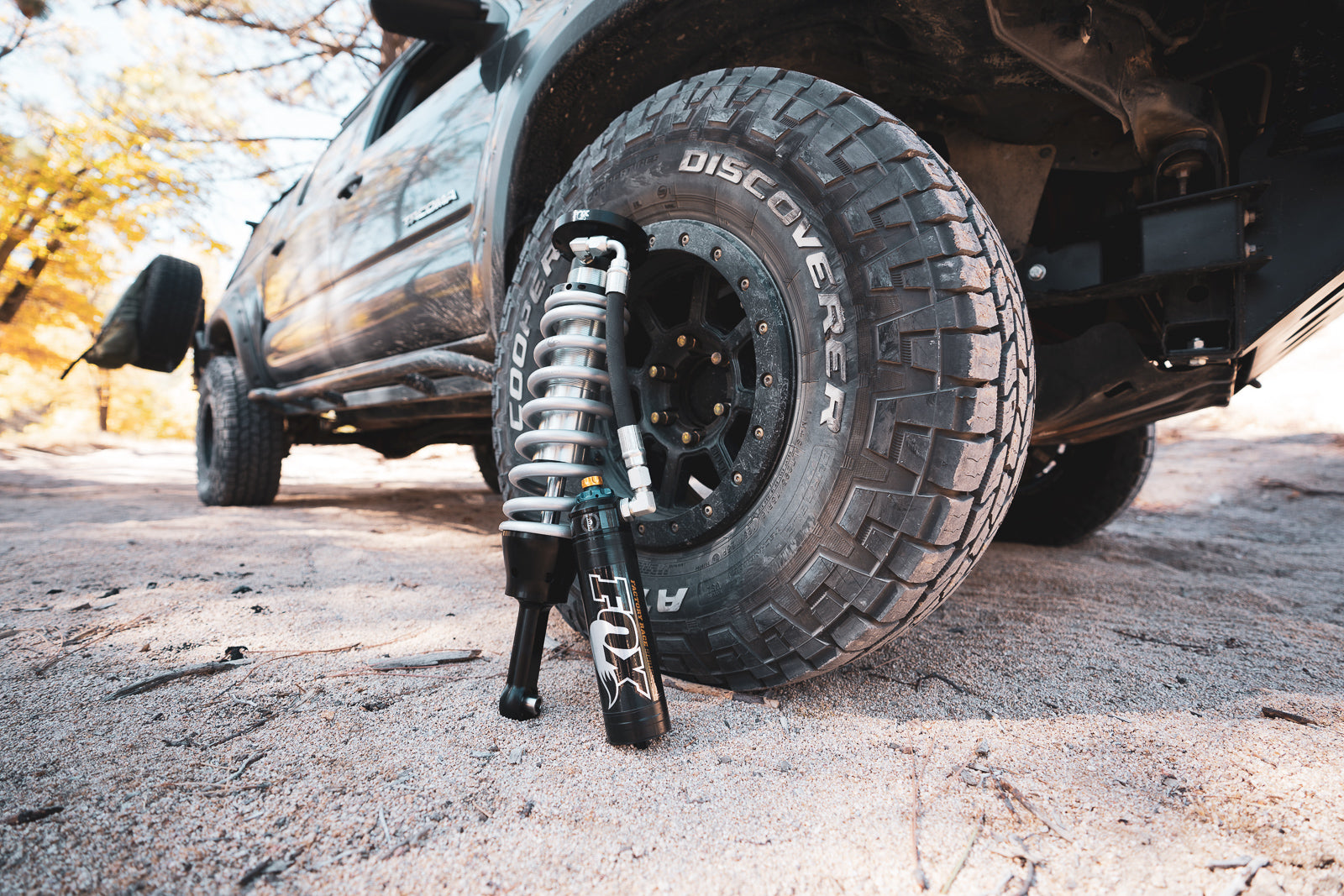

The Fox 2.5 Factory Series Coilovers & Shocks with DSC Reservoirs Set is a high-performance suspension upgrade designed for 2005-2023 Toyota Tacoma 4WD and RWD models. Featuring bolt-on Factory Series Coilover Reservoir shocks, this set enhances damping and ride quality across diverse terrains. Dual-speed compression adjusters offer twelve low-speed and ten high-speed settings for precise tuning, providing optimal control on and off-road. The coilovers include adjustable preload and ride height, pre-set to level the vehicle out of the box. External reservoirs increase oil and nitrogen capacity, ensuring consistent performance under demanding conditions. Built from race-proven components, these shocks deliver durability, improved damping, and a striking race-inspired appearance, making them suitable for off-road enthusiasts and performance drivers alike.

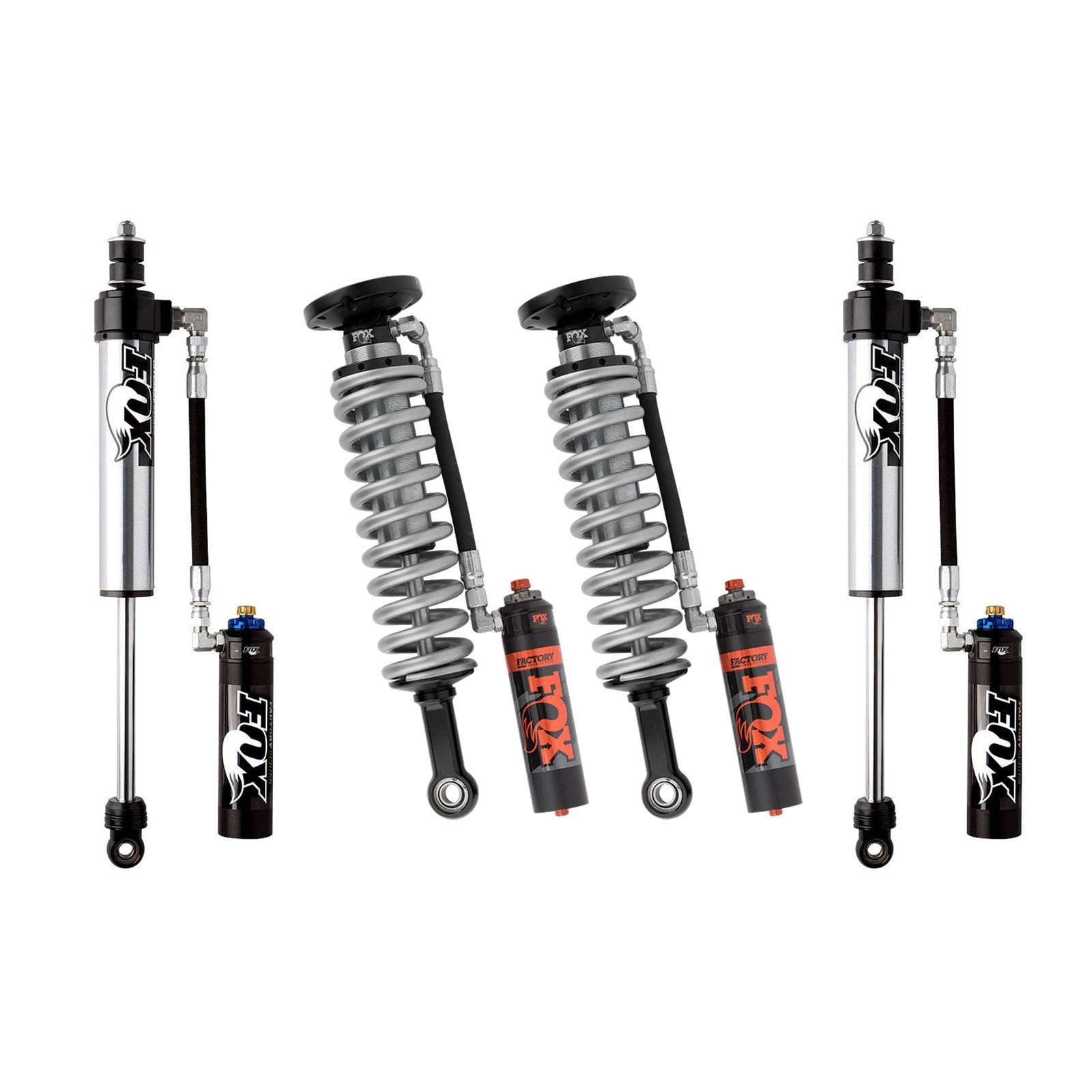

Designed for 2005-2023 Toyota Tacoma models with no suspension modifications or up to 2 inches of lift in the front and 1.5 inches in the rear, this kit fits both 4WD and RWD configurations with six-lug wheels. It requires aftermarket upper control arms for proper installation and is ideal for off-road, daily driving, or performance applications. The package includes two coilovers for the front and two rear shocks, along with all necessary washers, bushings, and nuts. The coilovers are preset at maximum lift height, providing a straightforward bolt-on upgrade that enhances vehicle handling, ride comfort, and off-road capability.
| Part Number | Lift/Lowered | Position | Item | Quantity |
|---|---|---|---|---|
| 883-26-007 | 0-1.5" Lift | Rear | Shock Absorber | 1 |
| 880-06-376 | 0-2" Lift | Front | Strut & Spring | 1 |
Share
Overview
Overview
Developed from our off-road race shocks, FOX Factory Race Series combines race-proven technology with new, cutting-edge features to provide enhanced ride-quality and winning damping performance you can bolt onto your truck or SUV.
