| Year | Make | Model |
|---|---|---|
| 2021 - 2026 | Ford | F-150 |
| 2022 - 2026 | Ford | F-150 Lightning |
1
/
of
2

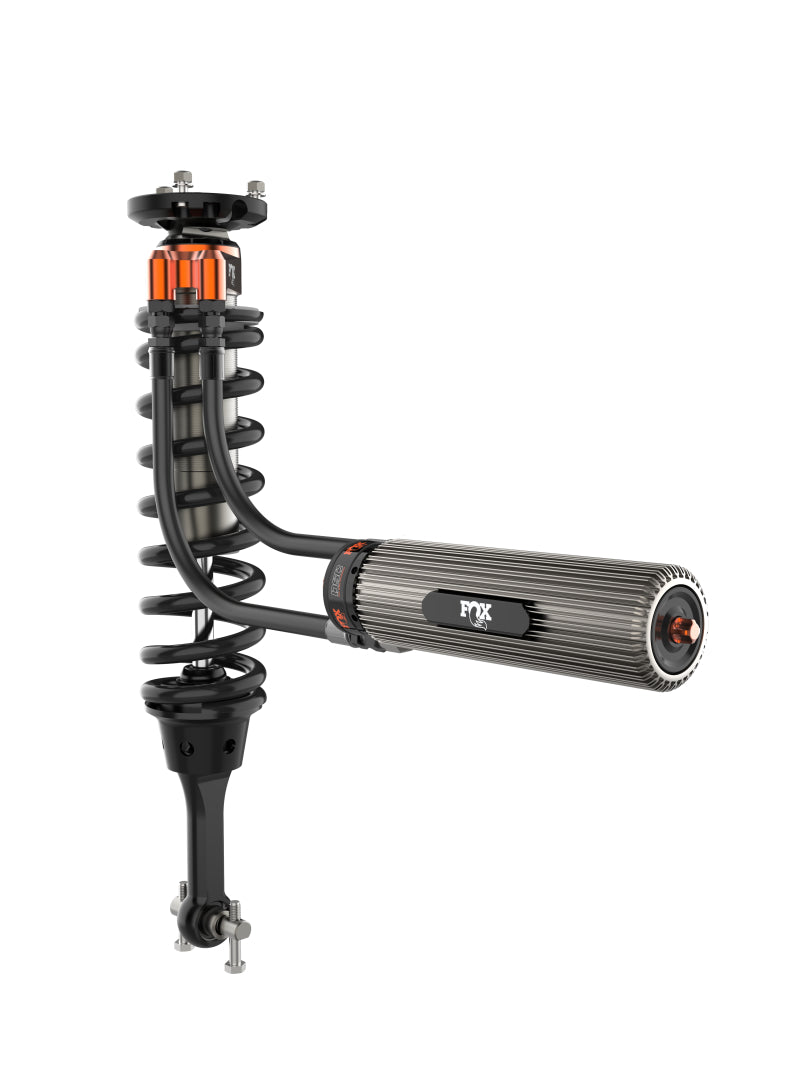

FOX 883-06-191 2021+ fits Ford F-150 2.5in Lift w/ UCA Front Factory Race Series
FOX 883-06-191 2021+ fits Ford F-150 2.5in Lift w/ UCA Front Factory Race Series
SKU:883-06-191
In stock
Regular price
$3,879.95 USD
Regular price
$3,879.95 USD
Sale price
$3,879.95 USD
Unit price
/
per
Couldn't load pickup availability
▶ Vehicle Fitments
The FOX Factory Race Series 3.0 Internal Bypass shocks are high-performance suspension components designed for the 14th generation Ford F-150. These shocks feature position-sensitive damping technology, Dual Speed Compression (DSC) adjustment, and patented Internal Bypass technology that enables multiple zones of damping control. Built with 3-inch diameter aluminum bodies and Type III anodization for corrosion resistance, they provide a progressive increase in damping force to improve ride comfort and control over rough terrain. The internal bypass design helps prevent harsh top-outs, control hard bottom-outs, and offers an initial catch during landings, ensuring a confident and comfortable ride. The shocks also utilize a Recirculating Reservoir Bridge to maintain optimal fluid temperature and performance during demanding off-road conditions.
Designed as a bolt-on upgrade for 2021 and newer Ford F-150 models with a 2.5-inch lift and UCA, these shocks are ideal for off-road enthusiasts seeking race-bred performance. They are compatible with the 14th generation F-150 and serve as direct replacements for factory components, enhancing off-road capability and ride quality. The kit delivers high-speed performance and load adjustment flexibility, making them suitable for rugged terrain, trail driving, and demanding off-road adventures. Installation is straightforward, providing a reliable upgrade for those looking to improve their truck’s suspension system for off-road use.
Share
Overview
Overview
FOX Factory Race Series 3.0 Internal Bypass shocks for the 14th generation Ford F-150 deliver position-sensitive damping technology, Dual Speed Compression (DSC) adjustment, and high-speed ready performance in a bolt-on kit. Patented Internal Bypass technology allows for multiple zones of damping control. The result is a comfortable, confident ride with increased damping force through rough terrain. Internal bypass shocks produce more force progressively to control hard bottom-outs, prevent harsh top-outs, and provide an initial catch for landing. Shock fluid bypasses the main piston through aseries of bleed holes in the ride zone. As the shock extends past the ride zone in rebound or compression, the bleed holes terminate, forcing fluid through the main piston. The Factory Race Series shocks also stay cool by utilizing a Recirculating Reservoir Bridge. The bridge circulates shock fluid between the finned external reservoir and body using checked ports. Type III anodization prevents corrosion and wear of the 3-inch diameter aluminum bodies.The DSC adjuster allows you to dial in your F-150 for load, environment, and driving style.FOX Internal Bypass shocks deliver the support and confidence you need while driving Mach-3 through rugged terrain. Experience race-bred performance next time you leave the pavement.
