| Year | Make | Model |
|---|---|---|
| 2022 - 2026 | Toyota | Tundra |
1
/
of
1
▶ Suspension Drop / Lift Rates
| Part Number | Lift/Lowered | Position | Item | Quantity |
|---|---|---|---|---|
| 883-26-140 | Factory | Rear | Shock Absorber | 1 |
| 883-26-142 | Factory | Rear | Shock Absorber | 1 |

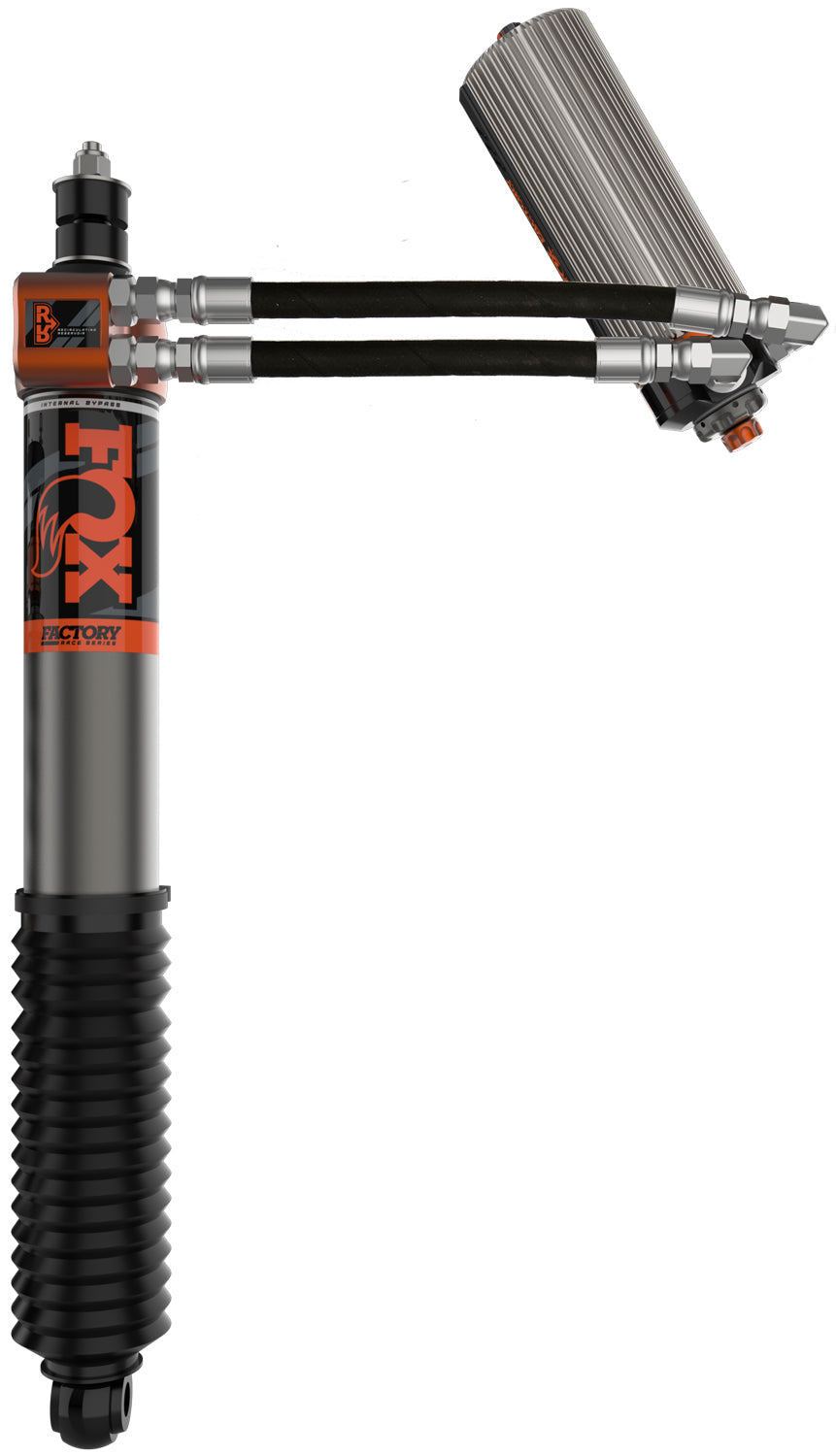

Fox 3.0 Factory Race adjustable Coilovers w/ IBP Remote Reservoir Shocks Rear pair w/1-2" lift - 2022-2024 Toyota Tundra
Fox 3.0 Factory Race adjustable Coilovers w/ IBP Remote Reservoir Shocks Rear pair w/1-2" lift - 2022-2024 Toyota Tundra
SKU:10549548876063_52696622989599
In stock
Regular price
$3,674.95 USD
Regular price
$3,674.95 USD
Sale price
$3,674.95 USD
Unit price
/
per
Couldn't load pickup availability
▶ Vehicle Fitments
▶ Suspension Drop / Lift Rates
| Part Number | Lift/Lowered | Position | Item | Quantity |
|---|---|---|---|---|
| 883-26-140 | Factory | Rear | Shock Absorber | 1 |
| 883-26-142 | Factory | Rear | Shock Absorber | 1 |
The Fox 3.0 Factory Race adjustable Coilovers with IBP Remote Reservoir Shocks are high-performance rear shock absorbers designed for off-road and rugged terrain driving. Featuring a 3.0-inch impact extruded and CNC machined 6061-T6 Type III anodized aluminum body, these shocks incorporate patented internal bypass technology for multiple zones of damping control. They deliver position-sensitive damping, Dual Speed Compression adjustment, and high-speed performance, ensuring a comfortable yet confident ride. The shocks are engineered with a redundant sealing system, including main, wiper, and scraper seals, to enhance durability and corrosion resistance. The recirculating reservoir bridge maintains optimal shock fluid temperature, allowing for consistent performance in demanding conditions.
Designed specifically for 2022-2024 Toyota Tundra models, these coilovers are a bolt-on upgrade that require extended brake lines and reuse factory shock mounting bolts. They are suitable for vehicles with a 1-2 inch lift and are intended for off-road, trail, and performance applications. The kit includes two rear shocks, factory hardware, washers, bushings, and nuts for installation. The adjustable height feature allows for customization based on load and driving environment, making them ideal for off-road enthusiasts seeking race-bred performance and enhanced damping control.
| Part Number | Lift/Lowered | Position | Item | Quantity |
|---|---|---|---|---|
| 883-26-140 | Factory | Rear | Shock Absorber | 1 |
| 883-26-142 | Factory | Rear | Shock Absorber | 1 |
Share
Overview
Overview
-
Package Contains 2 Shocks
You'll be getting Rear pair of Shock Absorbers. -
Fox One Year Warranty
Fox's limited one year warranty protects against defects and premature failure. -
Choose Your Desired Lift Height Above
Make a selection from the drop-down menu above to get the correct length shock absorber for your vehicle. -
Important Fitment Note
Requires extended brake lines. -
Factory Hardware for Installation
All necessary washers, bushings, and nuts included. Factory shock mounting bolts are reused for installation. -
Coilover Design
3.0" impact extruded and CNC machined 6061-T6 Type III anodized aluminum body.Patented, internal bypass design.Vehicle-specific tuning maximizes performance.Redundant sealing pack system: main seal, wiper seal, scraper seal.
FOX Factory Race Series 3.0 Internal Bypass shocks for your truck deliver position-sensitive damping technology, Dual Speed Compression (DSC) adjustment, and high-speed ready performance in a bolt-on kit.Patented Internal Bypass technology allows for multiple zones of damping control. The result is a comfortable, confident ride with increased damping force through rough terrain. Internal bypass shocks produce more force progressively to control hard bottom-outs, prevent harsh top-outs, and provide an initial catch for landing. Shock fluid bypasses the main piston through a series of bleed holes in the ride zone. As the shock extends past the ride zone in rebound or compression, the bleed holes terminate, forcing fluid through the main piston.A Recirculating Reservoir Bridge enables continuous exchange of shock fluid between the finned external reservoir and body using checked ports, keeping shock temperatures cool for better performance. Type III anodization prevents corrosion and wear of the 3-inch diameter aluminum bodies. The DSC adjuster allows you to dial in your 1500 for load, environment, and driving style.FOX Internal Bypass shocks deliver the support and confidence you need while driving Mach-3 through rugged terrain. Experience race-bred performance next time you leave the pavem
