| Year | Make | Model |
|---|---|---|
| 2021 - 2026 | Ford | F-150 |
| 2022 - 2026 | Ford | F-150 Lightning |
1
/
of
3
▶ Suspension Drop / Lift Rates
| Part Number | Lift/Lowered | Position | Item | Quantity |
|---|---|---|---|---|
| 883-26-121 | 0-1" Lift | Rear | Shock Absorber | 2 |
| 883-06-191 | 2.5" Lift | Front | Coilovers | 2 |

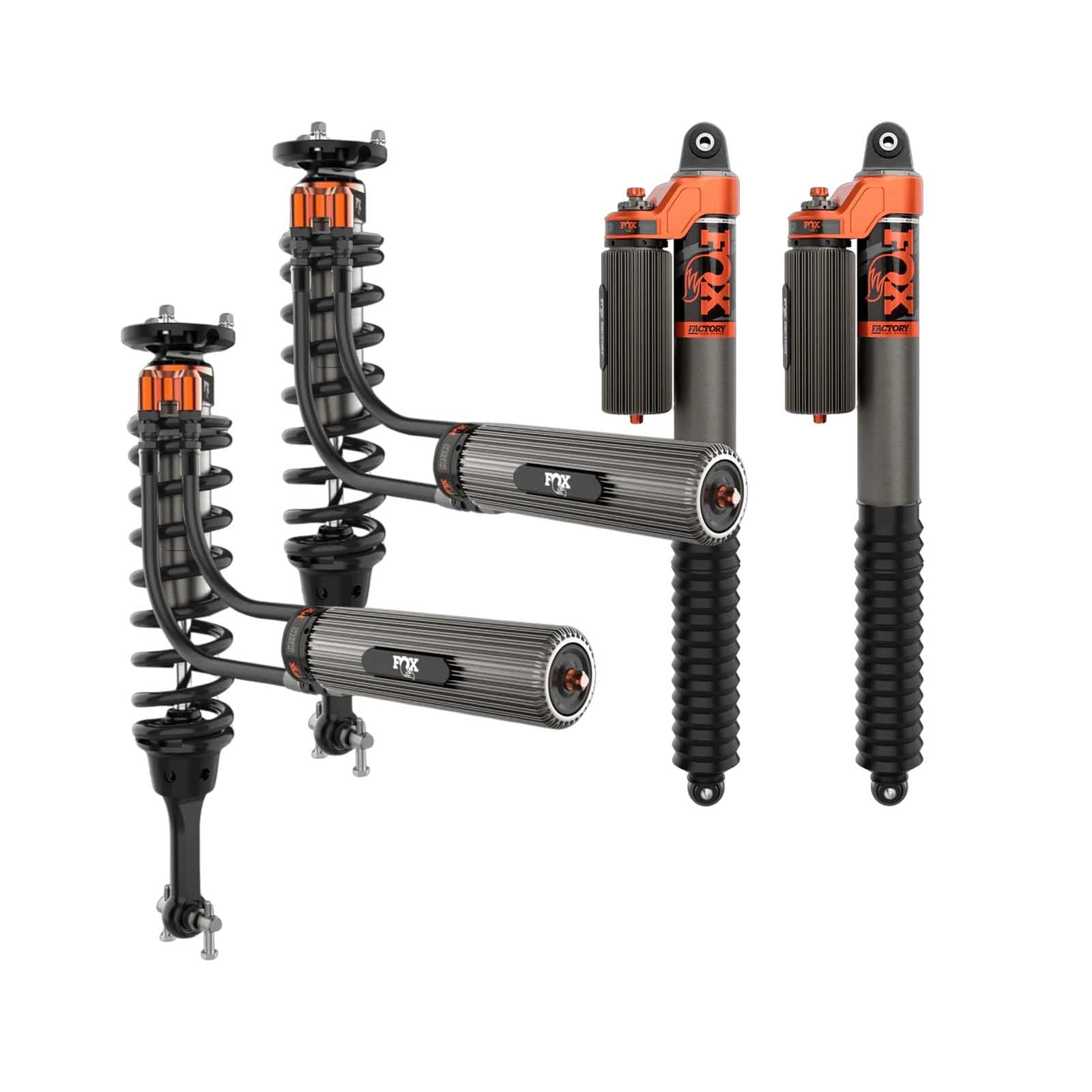

Fox 3.0 Factory Race Series +2.5" lift Kit - 2021-2026 Ford F-150 4WD RWD
Fox 3.0 Factory Race Series +2.5" lift Kit - 2021-2026 Ford F-150 4WD RWD
SKU:10548293304607_52692457357599
Out of stock
Regular price
$15,039.80 USD
Regular price
$15,039.80 USD
Sale price
$15,039.80 USD
Unit price
/
per
Couldn't load pickup availability
▶ Vehicle Fitments
▶ Suspension Drop / Lift Rates
| Part Number | Lift/Lowered | Position | Item | Quantity |
|---|---|---|---|---|
| 883-26-121 | 0-1" Lift | Rear | Shock Absorber | 2 |
| 883-06-191 | 2.5" Lift | Front | Coilovers | 2 |
The Fox 3.0 Factory Race Series +2.5" Lift Kit is a high-performance suspension upgrade designed for 2021-2026 Ford F-150 trucks. It includes coilovers, struts, and shocks that provide a 2.5-inch lift in the front and up to 1 inch in the rear, enhancing off-road capability and ride height. Constructed with 2.5-inch diameter one-piece aluminum bodies and external reservoirs, these components are built for heavy off-road use and heat dissipation. The shocks feature external compression adjusters for terrain and load adaptation, and the fully rebuildable design allows long-term performance tuning. Fox’s internal bypass shocks offer three zones of damping, delivering a smooth street ride with progressive off-road firmness, controlled fluid flow through bleed holes, and temperature regulation via fins. The anodized aluminum bodies resist corrosion, ensuring durability in demanding conditions.

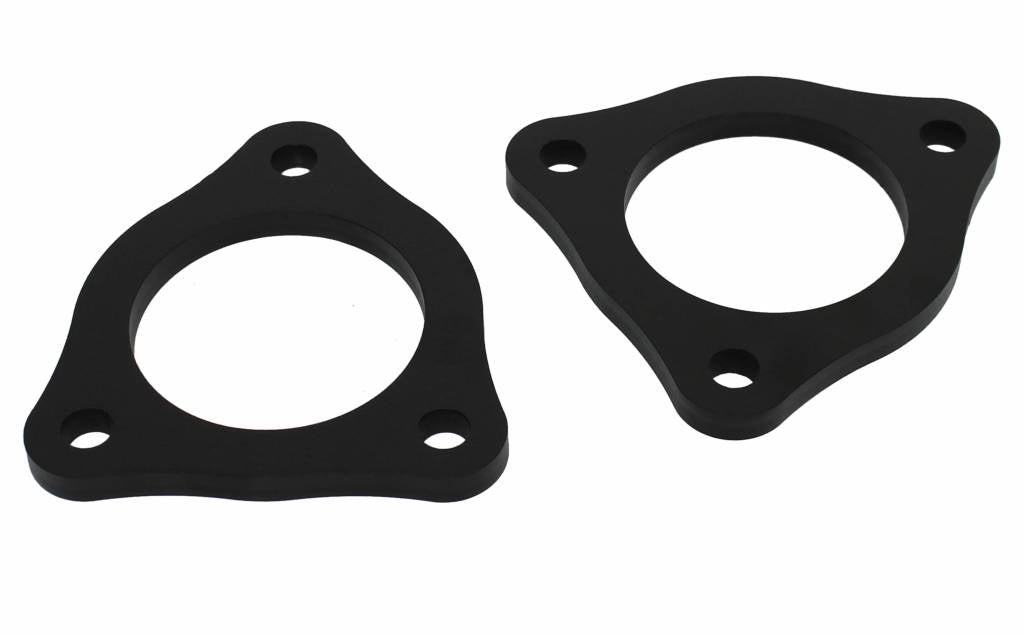

This kit is compatible with 2021-2026 Ford F-150 models, suitable for both 4WD and RWD configurations. It excludes Police, Raptor, and SSV submodels and requires minimal fitment adjustments for certain models, such as bump stop spacers and lift blocks for non-Trail Boss variants. The package contains all necessary hardware, including washers, bushings, nuts, and reservoir clamps, for bolt-on installation without fabrication. Designed for aggressive off-road use and improved performance, this suspension system enhances ground clearance, stability, and handling across diverse terrains, making it ideal for off-road enthusiasts and heavy-duty applications.
Share
Overview
Overview
FOX Factory Race Series 3.0 Internal Bypass shocks for the 14th generation Ford F-150 deliver position-sensitive damping technology, Dual Speed Compression (DSC) adjustment, and high-speed ready performance in a bolt-on kit. Patented Internal Bypass technology allows for multiple zones of damping control. The result is a comfortable, confident ride with increased damping force through rough terrain. Internal bypass shocks produce more force progressively to control hard bottom-outs, prevent harsh top-outs, and provide an initial catch for landing. Shock fluid bypasses the main piston through aseries of bleed holes in the ride zone. As the shock extends past the ride zone in rebound or compression, the bleed holes terminate, forcing fluid through the main piston. The Factory Race Series shocks also stay cool by utilizing a Recirculating Reservoir Bridge. The bridge circulates shock fluid between the finned external reservoir and body using checked ports. Type III anodization prevents corrosion and wear of the 3-inch diameter aluminum bodies.The DSC adjuster allows you to dial in your F-150 for load, environment, and driving style.FOX Internal Bypass shocks deliver the support and confidence you need while driving Mach-3 through rugged terrain. Experience race-bred performance next time you leave the pavement.
