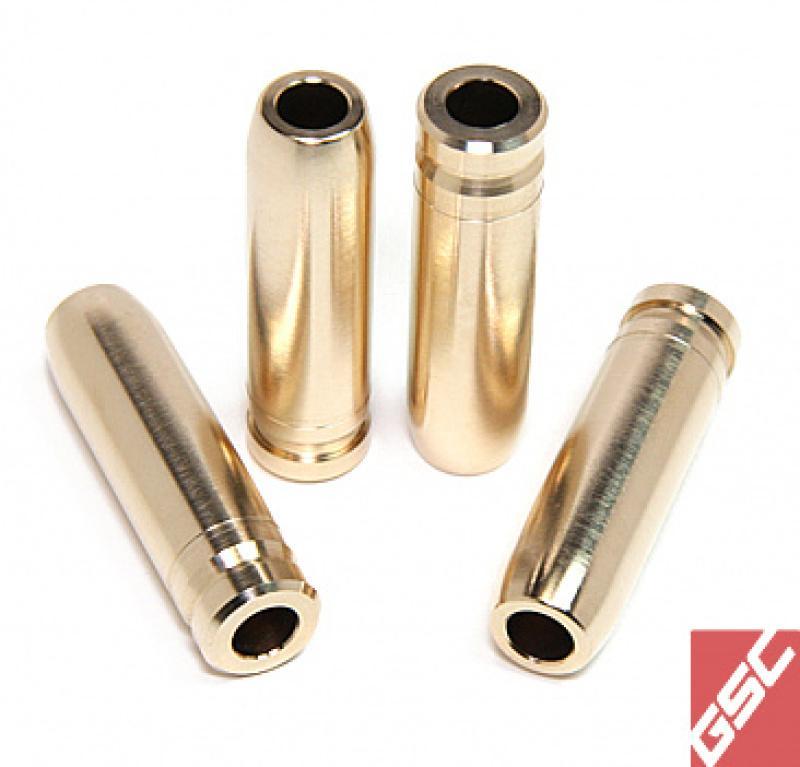

GSC Power Division Exhaust Valve Guides

1986–1993 Toyota Supra 1JZ

Part #: 3091.003-1

Overview

The GSC Power Division Exhaust Valve Guides are precision-engineered components designed specifically for the Toyota 1JZ engine found in models produced between 1986 and 1993. These guides are crafted from high-quality manganese bronze, offering excellent durability and heat resistance essential for high-performance and daily-driven applications. Whether you're rebuilding your engine, performing maintenance, or upgrading for enhanced reliability, these valve guides help ensure proper valve operation and longevity.

Designed for automotive enthusiasts and professional rebuilders alike, these guides provide a reliable solution to maintain optimal valve clearance and prevent excessive wear. They are ideal for those seeking to restore or improve engine performance, especially in high-stress conditions such as spirited driving or aftermarket modifications. With their oversize diameter, they also support larger valve stems or specific engine rebuild requirements, ensuring a proper fit and seal.

Key Features

GSC Power Division's Exhaust Valve Guides are built with precision and quality in mind, offering several key benefits:

• Material Excellence: Made from manganese bronze, these guides provide superior wear resistance, thermal stability, and corrosion resistance compared to standard guides.
• Oversize Diameter: The +.003 inch oversize outer diameter ensures a precise fit for engines requiring larger guides, aiding in proper valve stem alignment and reducing valve stem wear.
• Optimized Dimensions: Total length of 1.720 inches (43.69 mm) and outer diameter of 0.4347 inches (11.04 mm) ensure compatibility with the Toyota 1JZ engine's specifications.
• Enhanced Heat Dissipation: The manganese bronze material helps dissipate heat effectively, reducing the risk of valve overheating and improving overall engine reliability.
• Precision Manufacturing: Manufactured to strict tolerances, these guides ensure a proper seal and smooth valve movement, contributing to optimal engine performance.
• Rebuild & Performance Applications: Perfect for engine rebuilds, performance upgrades, or restoring factory specifications in high-mileage engines.

Construction & Design

The GSC Power Division Exhaust Valve Guides are constructed from high-grade manganese bronze, a material renowned for its excellent wear characteristics and thermal properties. The guides are machined to precise dimensions, including a total length of 1.720 inches and an outer diameter of 0.4347 inches, ensuring a perfect fit within the cylinder head. The oversize +.003 inch diameter allows for reaming or honing to accommodate larger valve stems or to restore proper clearance after wear.

The manufacturing process involves strict quality control measures, including CNC machining and inspection, to guarantee consistent dimensions and surface finish. This attention to detail ensures that each guide provides a tight seal, reduces valve stem wobble, and promotes smooth valve operation, which is critical for maintaining engine efficiency and longevity.

Installation & Fitment

The GSC Power Division Exhaust Valve Guides are designed as direct replacements for the original guides in the Toyota 1JZ engine. Installation typically involves removing the cylinder head from the engine, pressing or reaming the guides into place, and ensuring proper clearance and fitment. Due to the oversize diameter, reaming or honing may be required to achieve the correct fit for the valve stems.

No additional modifications or tuning are generally necessary when replacing these guides during a rebuild or maintenance procedure. Proper installation ensures a secure fit, optimal valve sealing, and long-term durability. It is recommended to follow standard engine rebuilding procedures and consult the manufacturer's instructions for best results.

What's Included

• 1 Manganese Bronze Exhaust Valve Guide with +.003 inch oversize outer diameter
• Manufacturer's standard quality assurance

Ideal For

• Engine rebuilds for Toyota 1JZ engines
• Performance upgrades and restoration projects
• High-mileage engine maintenance
• Enthusiasts seeking durable, high-quality valve guides
