GSC Power Division GSC Valve Spring Kits | 1988-1989, 1993 Toyota Celica (5745)

Gen2 3SGTE Valve Spring kit with Titanium Retainers by GSC Power-Division

The GSC Power-Division Single Cylindrical Valve Spring with Ti Retainer for Gen2 Toyota 3SGTE for shimless/shim-over bucket includes 16 titanium retainers and 16 conical valve springs. This spring kit drops in with the OEM locator. These round wire springs still have the same high quality attention to detail as our popular beehive kits. The GSC5745 is Nano-peened and batched according to seat pressure within our specs. The lightweight titanium retainers are CNC machined with tolerances and repeatability that are unmatched by other brands. This keeps a consistent seat pressure across the head for ultimate reliability and performance.

Features

• Cylindrical Setup
• 0.845" Coil Bind
• 1.345" Install Height
• 73 Seat Pressure (lbs)
• 190lbs @ 0.936" Open Pressure, 10.40mm Lift
• 0.440" Maximum Valve Lift
• Max RPM: 8,500 RPM
• Max boost: 32 psi

Benefits

• Controls the entire valvetrain, ensuring that the proper amount of spring pressure is applied consistently to prevent valve bounce.

Applications

• 1988 - 1989, 1993 Toyota Celica

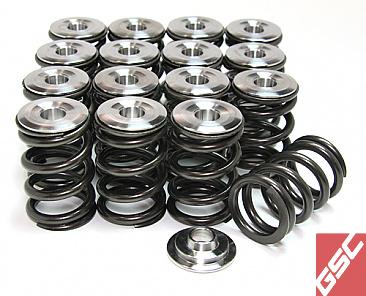

What's In The Box?

• 16 - Titanium retainers
• 16 - Conical valve springs

Warranty

• GSC Power Divisions 1 Year Warranty
