GSC Power Division GSC Valve Spring Kits | Multiple Acura / Honda Fitments (5047)
GSC Power Division GSC Valve Spring Kits | Multiple Acura / Honda Fitments (5047)
SKU:5047
In stock
Couldn't load pickup availability
The GSC Power Division GSC Valve Spring Kits are high-performance beehive valve springs designed for Honda and Acura K-series engines, including K20 and K24 VTEC models. These springs are engineered with ovate wire construction and utilize advanced heat treatment techniques to optimize load retention and fatigue resistance. The inclusion of titanium retainers enhances durability while reducing weight, contributing to improved valve control at high RPMs. This kit is ideal for performance applications requiring reliable spring load retention, such as high-revving street or track use. The springs are manufactured to provide superior load loss capabilities, ensuring consistent valve operation and longevity under demanding conditions.
This valve spring kit is compatible with a range of Honda and Acura models equipped with K20 and K24 VTEC engines. It includes 16 titanium retainers and 16 beehive valve springs, making it suitable for engine builds or upgrades focused on performance enhancement. Installation involves replacing stock springs and retainers with these high-quality components, offering a direct upgrade for increased valve stability and performance. Designed for use in high-performance street or track applications, this kit supports higher RPM operation and improved valve control, making it an excellent choice for enthusiasts seeking durability and reliability in their engine builds.
Share
Overview
Overview

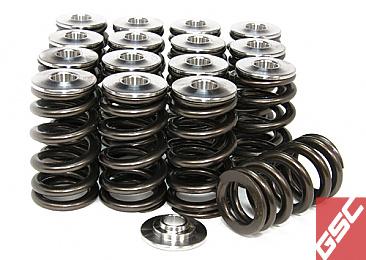

K20 K24 VTEC Beehive Spring set with Titanium Retainer by GSC Power-Division
The GSC Power-Division Beehive Spring Kit with Titanium Retainers for K20/K24 VTEC includes 16 titanium retainers and 16 beehive valve springs. Our beehive spring is made with an ovate wire which utilizes advanced material heat treatment methods for superior load loss capabilities. These springs have the highest level of spring load retention while still maintaining good fatigue throughout the life of the spring. Beehive springs allow for the use of a smaller, lighter retainer allowing for higher RPM and more valve control. This is a must have for anyone pushing the limits.
Features
- Beehive Setup
- 0.920" Coil Bind
- 1.533" Install Height
- 101 Seat Pressure (lbs)
- 267lbs @ 1.021" Open Pressure, 13.0mm Lift
- 0.553" Maximum Valve Lift
- Max RPM: 9,000 RPM
- Max boost: 50 psi
- Ovate Wire
Benefits
- Allows for the use of a smaller, lighter retainer allowing for higher RPM and more valve control
Applications
- 2013 Acura ILX
- 2002 - 2006 Acura RSX
- 2004 - 2013 Acura TSX
- 2003 - 2013 Honda Accord
- 2002 - 2005 Honda Civic Si
- 2012 - 2014 Honda Civic Si
- 2002 - 2012 Honda CR-V
- 2012 - 2013 Honda Crosstour
- 2003 - 2011 Honda Element
What's In The Box?
- 16 - Titanium retainers
- 16 - Beehive valve springs
Warranty
- GSC Power Divisions 1 Year Warranty
