GSC Power Division GSC Valve Spring Kits | Multiple Fitments (5053)

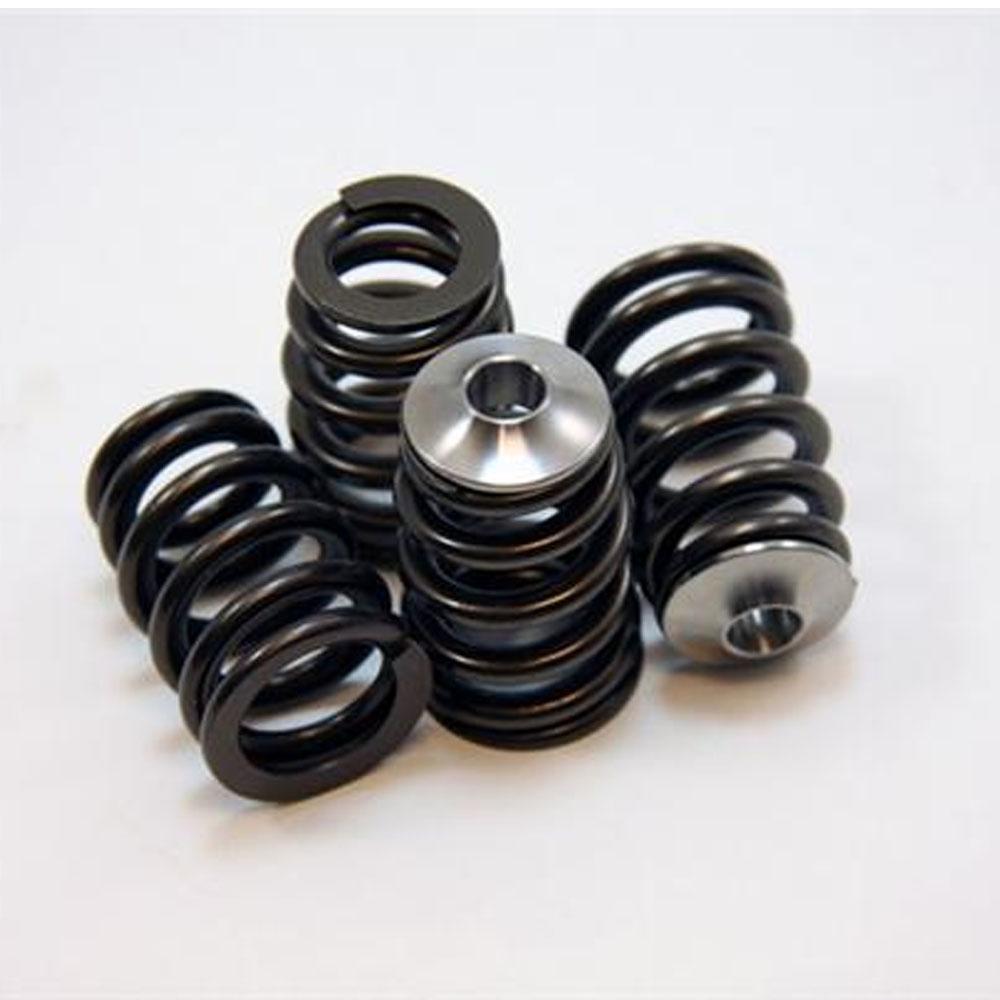

Beehive Spring set with Ti Retainer by GSC Power-Division

The GSC Power-Division Beehive Valve Spring Kit with Ti Retainers for the Nissan VQ35DE includes 24 titanium retainers, 24 beehive valve springs, and 24 valve spring shims. Our beehive spring is made with an ovate wire which utilizes advanced material heat treatment methods for superior load loss capabilities. These springs have the highest level of spring load retention while still maintaining good fatigue throughout the life of the spring. Beehive springs allow for the use of a smaller, lighter retainer allowing for higher RPM and more valve control.

Features

• Beehive Setup
• 0.825" Coil Bind
• 1.355 / 1.350" Install Height
• 83 / 85 Seat Pressure (lbs)
• 230lbs @ 0.910" / 232lbs @ 0.905" Open Pressure, 11.30mm Lift
• 0.505" Maximum Valve Lift
• Max RPM: 8,500 RPM
• Max boost: 30 psi
• Up to 11.8mm lift cam

Applications

• 2001 - 2004 Nissan Pathfinder
• 2013 - 2016 Nissan Pathfinder
• 2001 - 2003 Infiniti QX4
• 2001 - 2004 Infiniti I35
• 2002 - 2018 Nissan Altima
• 2002+ Nissan Maxima
• 2002 - 2006 Nissan 350Z
• 2002 - 2007 Infiniti G35 Coupe
• 2002 - 2006 Infiniti G35 Sedan
• 2002 - 2008 Infiniti FX35
• 2002+ Nissan Murano (Z50)
• 2003 - 2016 Nissan Quest
• 2004 - 2008 Infiniti M35
• 2012 - 2013 Infiniti JX35
• 2013 - 2016 Infiniti QX60

What's In The Box?

• 1 - Beehive Spring set with Ti Retainer

Warranty

• Manufacturers Standard Warranty
