â–¶ Suspension Drop / Lift Rates
Part #: hrsRSS29170 - RSS Coil Over
Comment: Lowering varies by engine size, battery package, and model options.; rates: F 630#, R 515#, damping adjustable front
Applications
Front
Rear
2007-10 Ford GT500 / GT500 Convertible V8
-1.2"-2.7"
-1.2"-2.5"
2011-14 Ford GT500 V8, incl. convertible
-1.2"-2.6"
-1.2"-2.5"
2005-09 Ford Mustang / Mustang GT / Shelby GT / Shelby GT-H V6, V8
-1.2"-2.7"
-1.2"-2.5"
2010 Ford Mustang / Mustang GT / Shelby GT / Shelby GT-H V6, V8
-1.2"-2.7"
-1.2"-2.5"
2005-09 Ford Mustang Convertible V6, V8
-1.2"-2.7"
-1.2"-2.5"
2010 Ford Mustang Convertible V6, V8
-1.2"-2.7"
-1.2"-2.5"

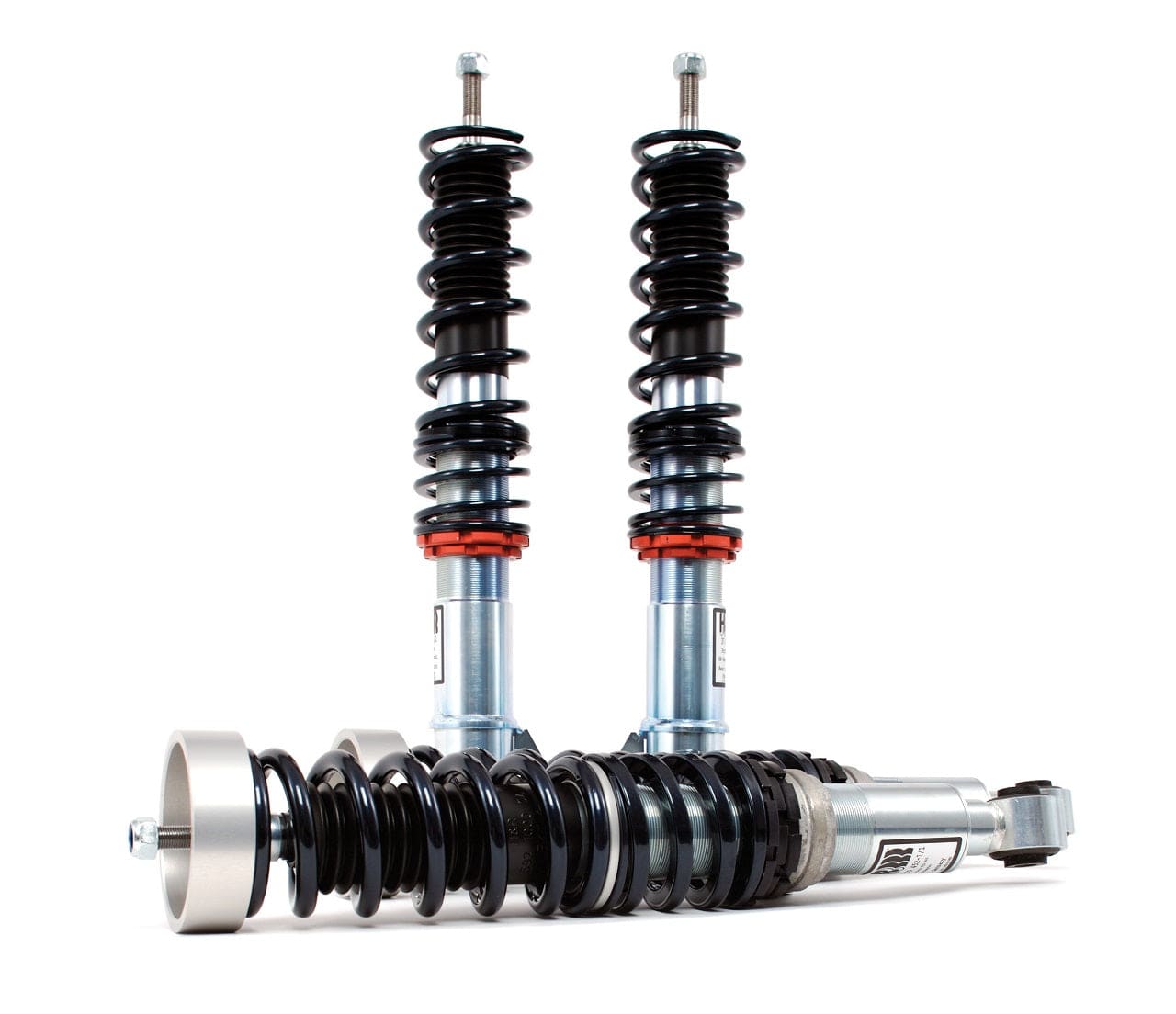

H&R RSS Coilovers | Ford Mustang Convertible V6/V8 (05-09) / GT V8 (07-10) (RSS29170)

H&R RSS Coilovers | Ford Mustang Convertible V6/V8 (05-09) / GT V8 (07-10) (RSS29170)

SKU:RSS29170

Out of stock

Regular price $1,984.00 USD
Regular price $2,480.00 USD Sale price $1,984.00 USD
kADDITIONAL DISCOUNTS APPLIED AT CHECKOUT Sold out
â–¶ Suspension Drop / Lift Rates
Part #: hrsRSS29170 - RSS Coil Over
Comment: Lowering varies by engine size, battery package, and model options.; rates: F 630#, R 515#, damping adjustable front
Applications
Front
Rear
2007-10 Ford GT500 / GT500 Convertible V8
-1.2"-2.7"
-1.2"-2.5"
2011-14 Ford GT500 V8, incl. convertible
-1.2"-2.6"
-1.2"-2.5"
2005-09 Ford Mustang / Mustang GT / Shelby GT / Shelby GT-H V6, V8
-1.2"-2.7"
-1.2"-2.5"
2010 Ford Mustang / Mustang GT / Shelby GT / Shelby GT-H V6, V8
-1.2"-2.7"
-1.2"-2.5"
2005-09 Ford Mustang Convertible V6, V8
-1.2"-2.7"
-1.2"-2.5"
2010 Ford Mustang Convertible V6, V8
-1.2"-2.7"
-1.2"-2.5"

The H&R RSS Coilovers for the 2005-2009 Ford Mustang Convertible V6 and V8, including GT V8 models from 2007 to 2010, are high-performance suspension components engineered for enthusiasts seeking superior handling. Designed and tested on the renowned Nurburgring circuit, these coilovers deliver precise vehicle feedback, enabling flat cornering and enhanced directional control. Constructed with H&R's exclusive dynamic damper technology, they feature fully adjustable damping settings and a coilover design that lowers the vehicle's center of gravity. This results in reduced body roll, improved stability, and a more responsive driving experience, making them ideal for spirited driving and track use.

These coilovers are a direct bolt-on upgrade for 2005-2009 Ford Mustang convertibles equipped with V6 or V8 engines, including the GT V8 models from 2007 to 2010. They are intended for performance-oriented street driving, track days, or autocross events, providing a significant upgrade over stock suspension components. Installation involves replacing the factory shocks and springs with the coilover units, which are designed for easy fitment. The kit includes the coilover assemblies and necessary hardware, ensuring a comprehensive upgrade for drivers seeking improved handling and a lowered stance.

Overview

H&R RSS Coilovers for your 2005-2009 Ford Mustang Convertible V6/V8 are designed and tested on the famous Nurburgring, and are for the performance minded driver that requires the most vehicle feedback. The result is flat cornering and supreme directional control - a perfect choice for the high performance driver. RSS Coilovers lower the center of gravity and reduce body roll for better handling.

Like all H&R coilovers, RSS Coilovers feature H&R exclusive dynamic damper technology and a fully threaded shock body.

Features

  • Height adjustable to 1.0 - 2.3 inches on average
  • More spring rate and shock valving
Specifications
Part Number RSS29170
Part Name H&R RSS Coilovers
Country of Origin Germany
Vehicle 2005-2009 Ford Mustang Convertible V6/V8
Chassis Code
Adjustment Type Pre-set
Damping Adjustable No
Height Adjustable Yes
Front Lowering 1.2 - 2.7 inches
Rear Lowering 1.2 - 2.5 inches
Front Spring Rates 630 lb/in | 11.2 kg/mm
Rear Spring Rates 515 lb/in | 9.2 kg/mm
Part Note 1 Damping Adjustable Front
Part Note 2 Springs upgrade with different spring rates available: Requires part number 29170CS3
Part Note 3 Optional Spring Rates: Front 715 lb/in | 12.8 kg/mm - Rear: 600 lb/in | 10.7 kg/mm
Fitment Note 1 Lowering varies by engine size, battery package, and model options.
Vehicle Fitment
  • 2005 Ford Mustang Convertible V6/V8
  • 2006 Ford Mustang Convertible V6/V8
  • 2007 Ford Mustang Convertible V6/V8
  • 2008 Ford Mustang Convertible V6/V8
  • 2009 Ford Mustang Convertible V6/V8
